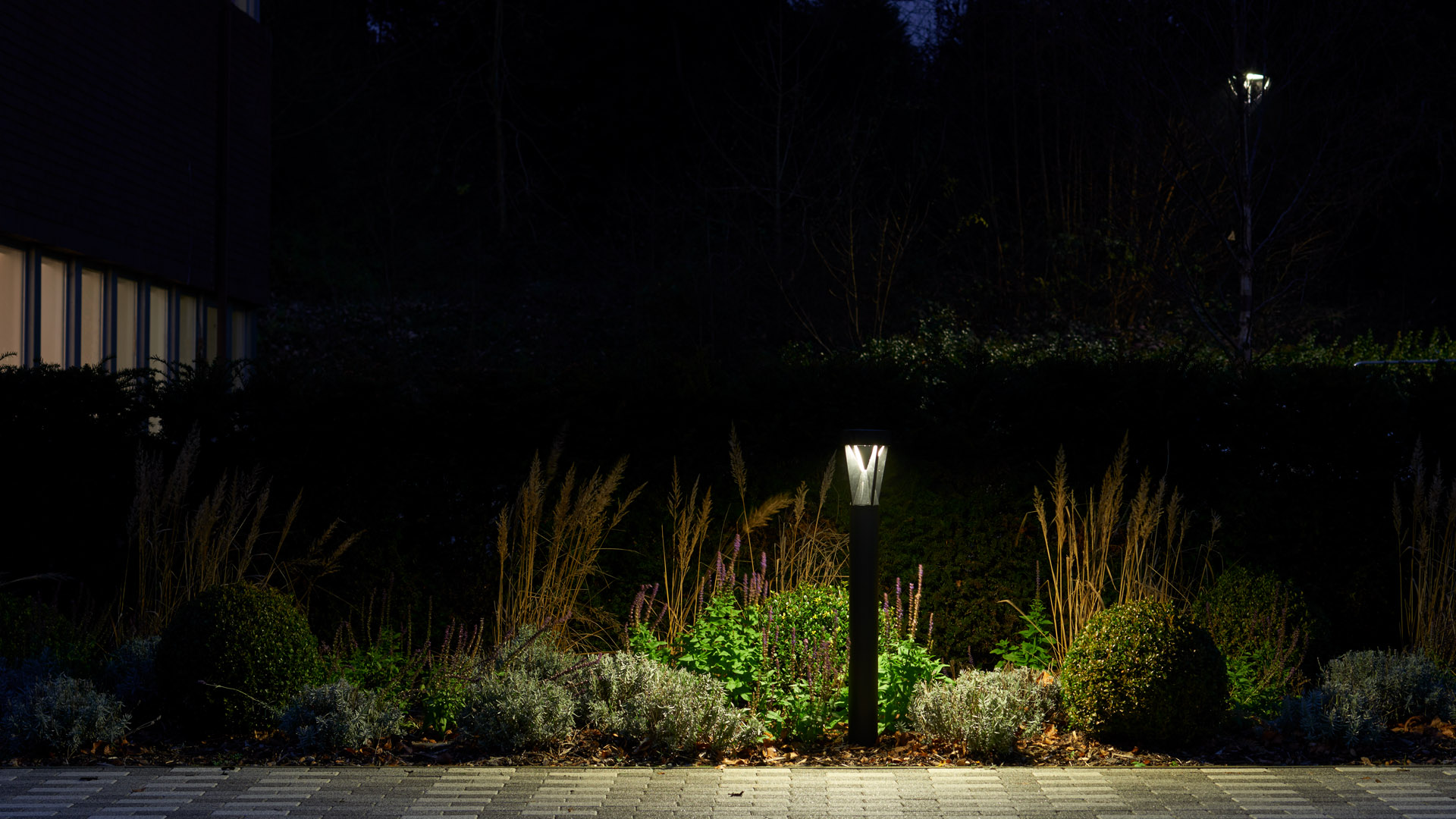

Pharola DS Bollard Location image 1920x1080px Alt2

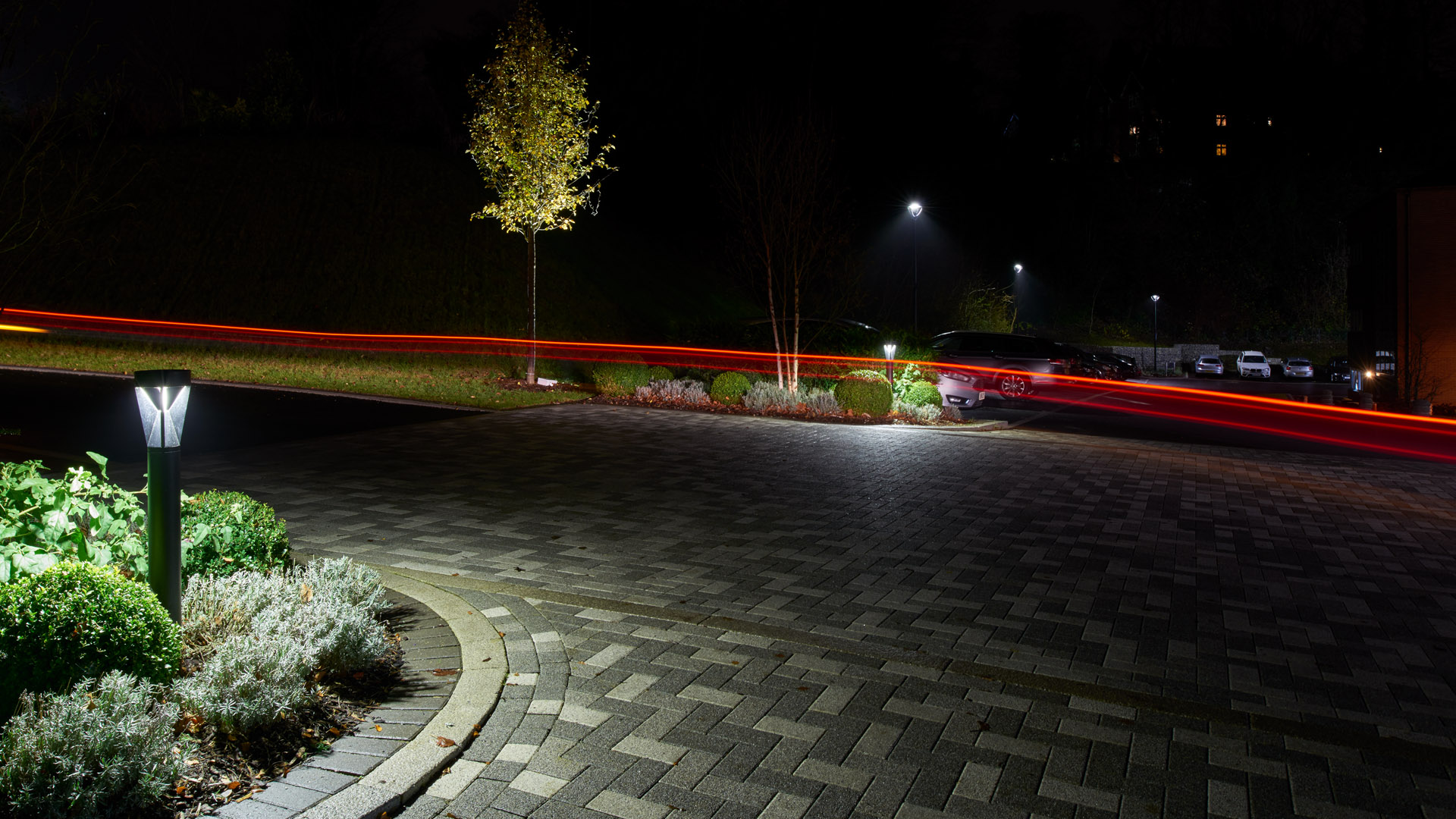

Pharola DS Bollard Location image 1920x1080px Alt3

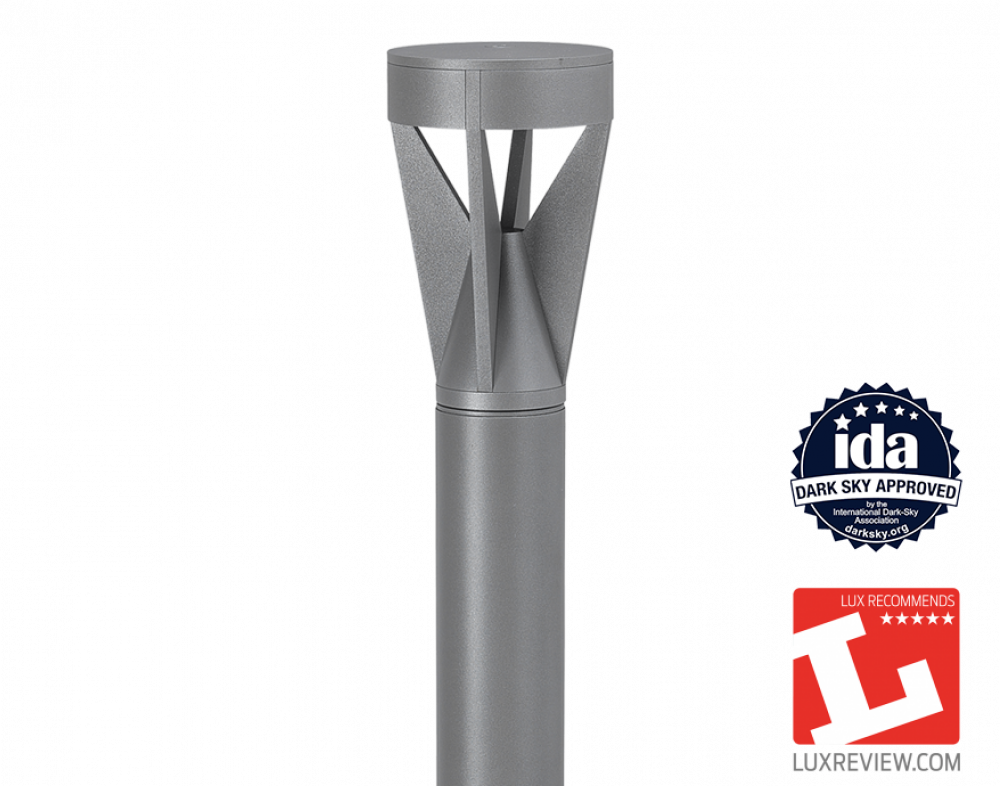

Pharola DS Bollard Lux Review 5 stars Product image 2000x1572px

Downloads

Pharola DS brochure

Format: Adobe Acrobat PDF file, (2 MB)

Pharola DS photometry

Format: ZIP compressed file, (4.2 KB)

Pharola DS product codes

Format: Adobe Acrobat PDF file, (42 KB)

More views

Pharola DS Bollard Lux Review 5 stars Product image 2000x1572px

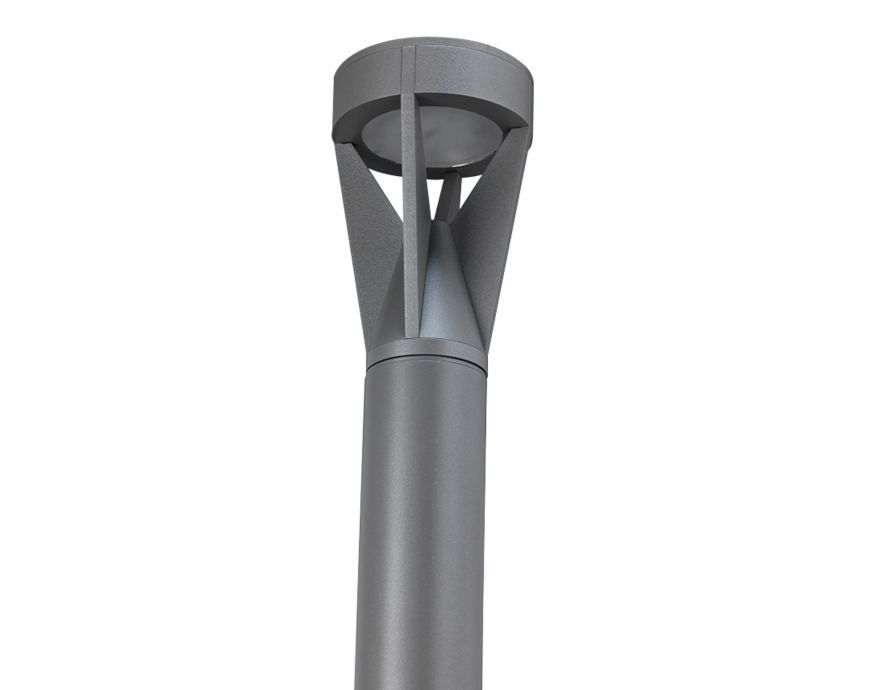

Pharola DS Bollard Product image 2000x1572px Alt8
Pharola DS Bollard Product image 2000x1572px Alt4

Robust dark-sky LED bollard

Extending the popular Pharola range, possibly the slimmest family of bollards on the market - at just 89mm in diameter, Pharola DS continues to provide high-performance white light in a range of colour temperatures to aid navigation and promote a feeling of safety after dark with zero light above the horizontal.

  • 0% ULOR
  • Available in two heights, 1000mm and 2200mm
  • Installation via root or flange plate mounting

Request a quote

Options in this range

Name Dimensions (mm) Weight (kg)
Pharola DS 1m Height: 1000 15
Pharola DS 2m Height: 2200 23

Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
1730
Power Range:
20
LED qty:
9
Distribution:
Symmetric
180° Backshield (on request)
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>70Ra

Power and control

Drive Current Range:
700mA
Controls:
Remote switch
Driver:
Tridonic

Mechanical and installation

Materials:
Head: Die-cast aluminium
Body: Galvanised steel
Seals: Silicone
Glazing: Polycarbonate
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Mounting:
Root mounted
Flange plate
1st Fix root

Downloads and dimensions

Pharola DS brochure

Format: Adobe Acrobat PDF file, (2 MB)

Pharola DS photometry

Format: ZIP compressed file, (4.2 KB)

Pharola DS product codes

Format: Adobe Acrobat PDF file, (42 KB)

Pharola DS 1000 product dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 89
  • C 500
Weight (kg):
15
Pharola DS 2200 product dimension drawing W573px
Dimensions (mm):
  • A 2200
  • Ø B 89
  • C 500
Weight (kg):
23
