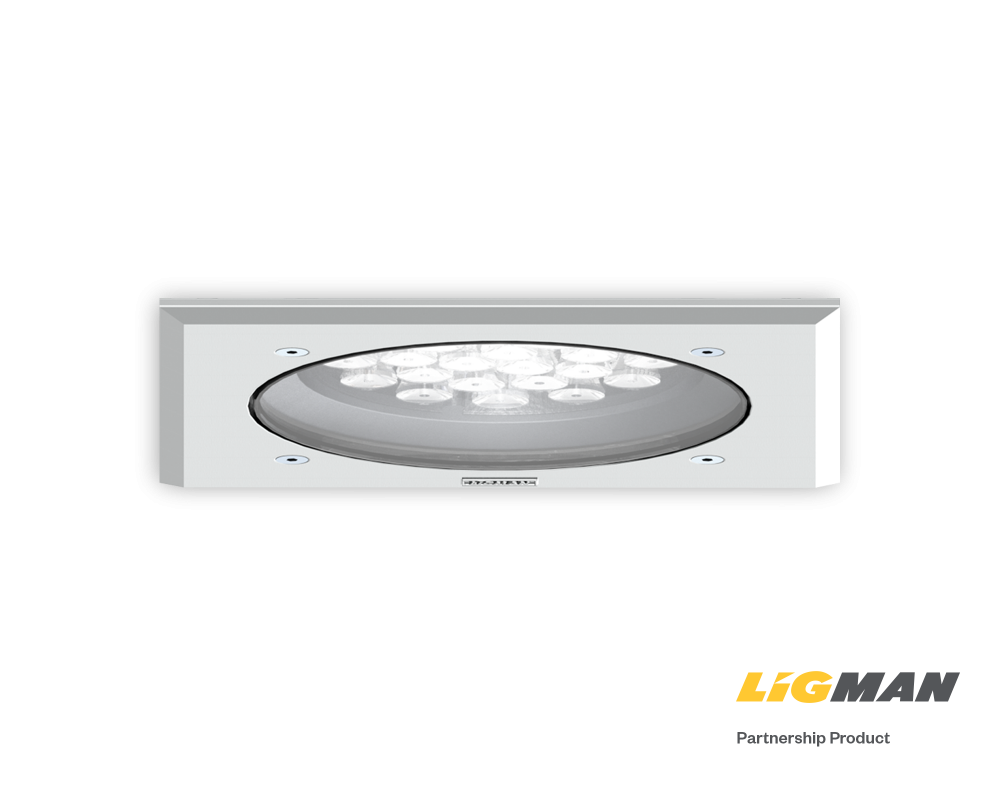

Recessed exterior downlight
Ceiling-recessed exterior downlights. Modern, clean and powerful down lighting family provided the best resilient under-canopy solutions in the marketplace.
- Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
- 6 mm thick front ring is available in stainless steel or aluminium
- Single cable entry
- Stainless steel fasteners in grade 316
- Durable silicone rubber gasket
- Clear toughened glass
- Include control gear for NIKON 5, NIKON 6
- Remote driver is included for NIKON 1, NIKON 2, NIKON 3, NIKON 4
- Remote IP box is included for NIKON 1, NIKON 2, NIKON 3, NIKON 4
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings
Buildings
Lighting
Light source:
Surface Mounted Device (SMD)
Lumen Range (lumens):
2689-4303
LED qty:
7-24
Colour Temperature (CCT):
3000K
4000K
4000K
Colour rendering (CRI):
>80Ra
L90 Lifetime Estimate:
>100,000hrs
Power and control
Voltage:
220-240V
Dimming:
On/Off, 1-10V, DALI
Mechanical and installation
Materials:
Body: Die-cast aluminium
Glazing: Glass
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Ceiling recessed
Downloads and dimensions

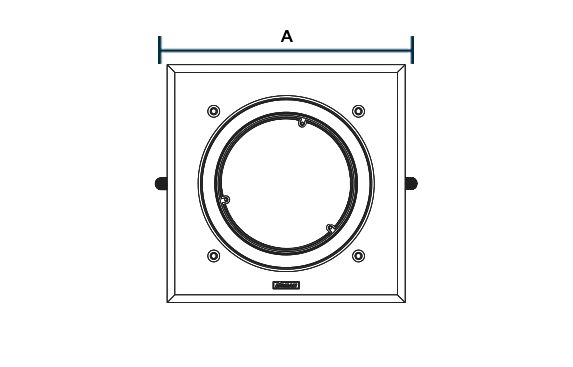

Dimensions (mm):
- A 200
Weight (kg):
2.6
2.6
