Extremely robust illuminated bollard

Nexus, a robust, vandal-resistant bollard, is part of our Optima range of luminaires, bollards, columns and street furniture to achieve sympathetic styling across your entire scheme

  • Tough polycarbonate glazing tube for enhanced vandal resistance
  • Optional 180° light shield enhances single direction performance
  • 3000K / 4000K

Request a quote

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK10
Certifications:
CE
Applications:
Rail
Paths & walkways

Lighting

Light source:
High power LED
LED qty:
9
Distribution:
Symmetric
180° light shield on request
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
70Ra

Power and control

Voltage:
220-240V
Drive Current Range:
700mA

Mechanical and installation

Materials:
Head: Aluminium
Glazing: Clear polycarbonate
Body: Galvanised steel tube
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 9007 Metallic grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
Other RAL colours on request
Mounting:
Root mounted
Flange plate

Downloads and dimensions

Nexus bollard photometry

Format: ZIP compressed file, (16 KB)

Nexus bollard product codes

Format: Adobe Acrobat PDF file, (42 KB)

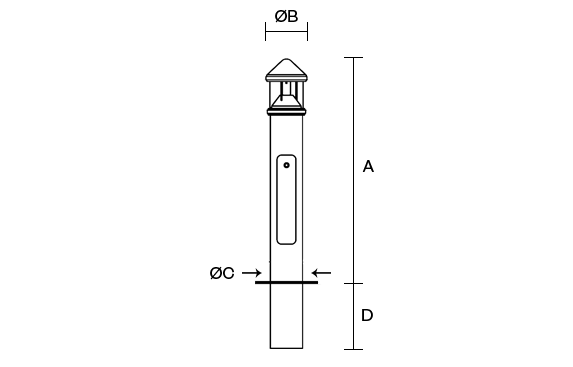

Nexus Bollard product dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 186
  • Ø C 152
  • D 300
Weight (kg):
21
