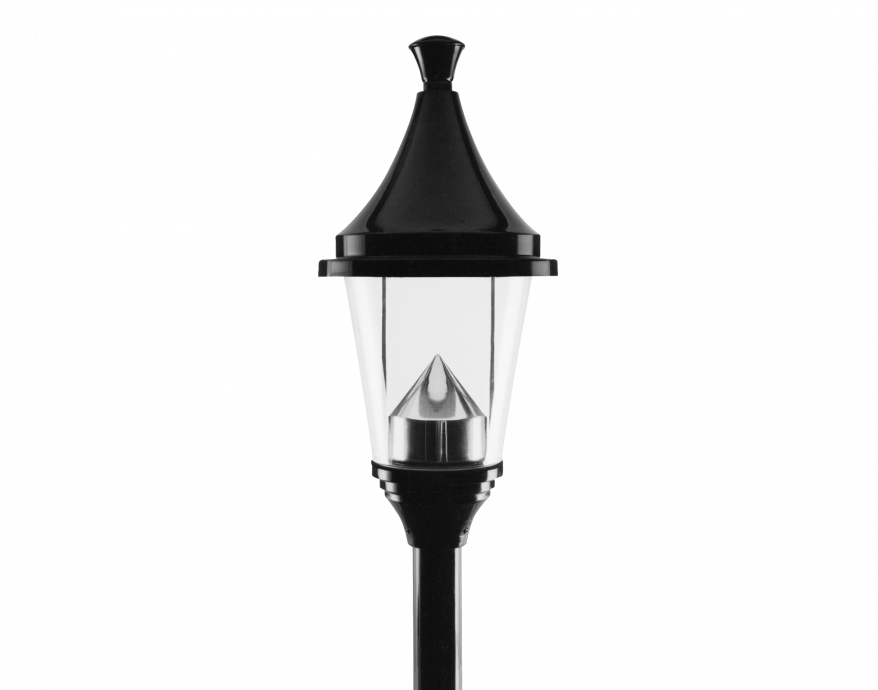

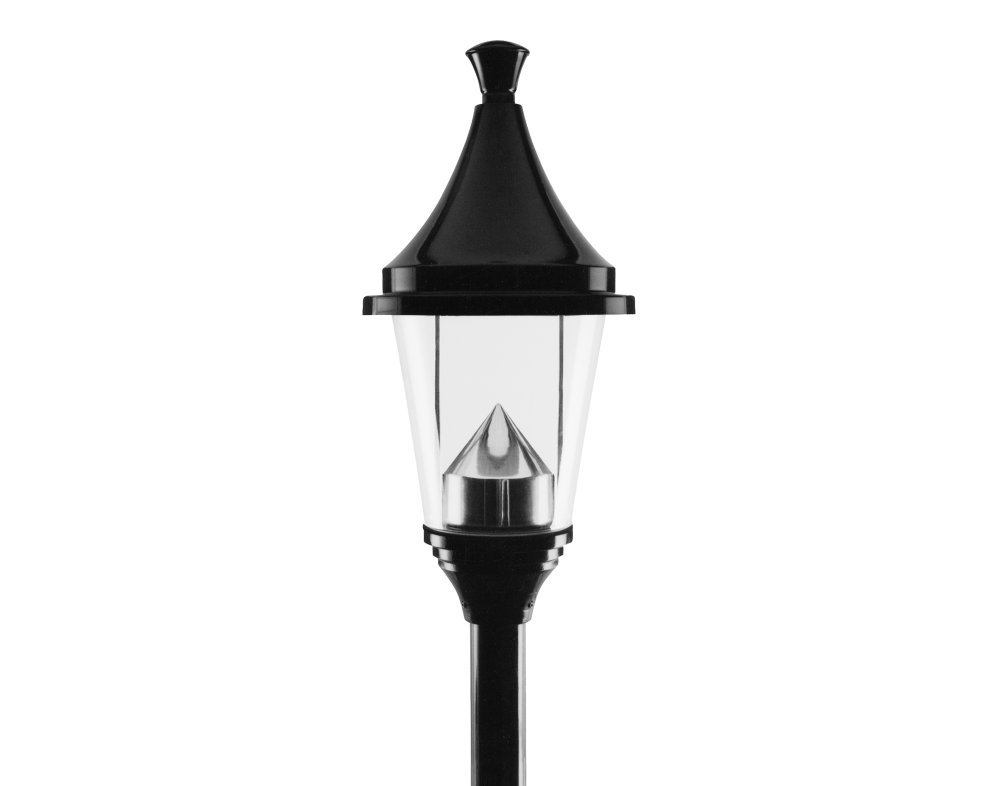

Compact post top luminaire
High performance in a traditional styled housing, Newport is one of our compact post top luminaires. Newport's more streamlined canopy style is ideal for a variety of applications from housing estates to small car parks and amenity areas.
- For mounting at 3-6 metres
- Available with a range of LED solutions to suit your application
- Control gear housed in luminaire base for extra robustness
Request a quote
Request a quote
Options in this range
| Name | Light source | Distribution | Lumen Range (lumens) | Power Range | Colour Temperature (CCT) | |
|---|---|---|---|---|---|---|
| Performance LED | High power LED | Diamond+ | 1309-4673 | 12-47 | 2700K, 3000K, 4000K | |
| Performance CoB | Chip on Board (CoB) | Diamond+ CoB | 2907-6873 | 22-55 | 2700K, 3000K, 4000K | |
| Comfort CoB® | Chip on Board (CoB) | Glass bowl refractor | 904-3614 | 8-40 | 2700K, 3000K | |
| Braun Gas Effect | High power LED | Diffuser | 2700K, 3000K |
Check out our Heritage brochure
Contact us to find out more
Get in touch
LED Light engines
To support a variety of applications, our Heritage lanterns are offered with a range of LED light engines. So whether you're looking for a high-performance light source to maximise energy savings, or something with a more traditional appearance, we have a solution for you.
Standard colours
|
RAL 9005Black |
RAL 7016Anthracite grey |
RAL 7037Dusty grey |
RAL 5003Sapphire blue |
RAL 6005Light moss green |
RAL 3005Wine red |
To personalise your scheme, other RAL colours available on request.
Detailed Specification
Product specification
High street & road lighting
Paths & walkways
Rail
Car parks
Lighting
Power and control
Part-night switching
Pre-programmed dimming
Integral CMS
Sensor ready
Mechanical and installation
Glazing: Clear polycarbonate
Seals: Neoprene
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Downloads and dimensions
Comfort CoB Product Performance Matrix
Format: Adobe Acrobat PDF file, (106 KB)
Performance LED Product Performance Matrix
Format: Adobe Acrobat PDF file, (147 KB)
Performance CoB Product Performance Matrix
Format: Adobe Acrobat PDF file, (109 KB)
Newport product codes
Format: Adobe Acrobat PDF file, (33 KB)
Newport photometry
Format: ZIP compressed file, (2.8 MB)
Retrofit LED Solutions
Format: Adobe Acrobat PDF file, (1.9 MB)
- A 778
- Ø B 365
- Ø C 76
9.4
0.15
