Milano Original

Change view:

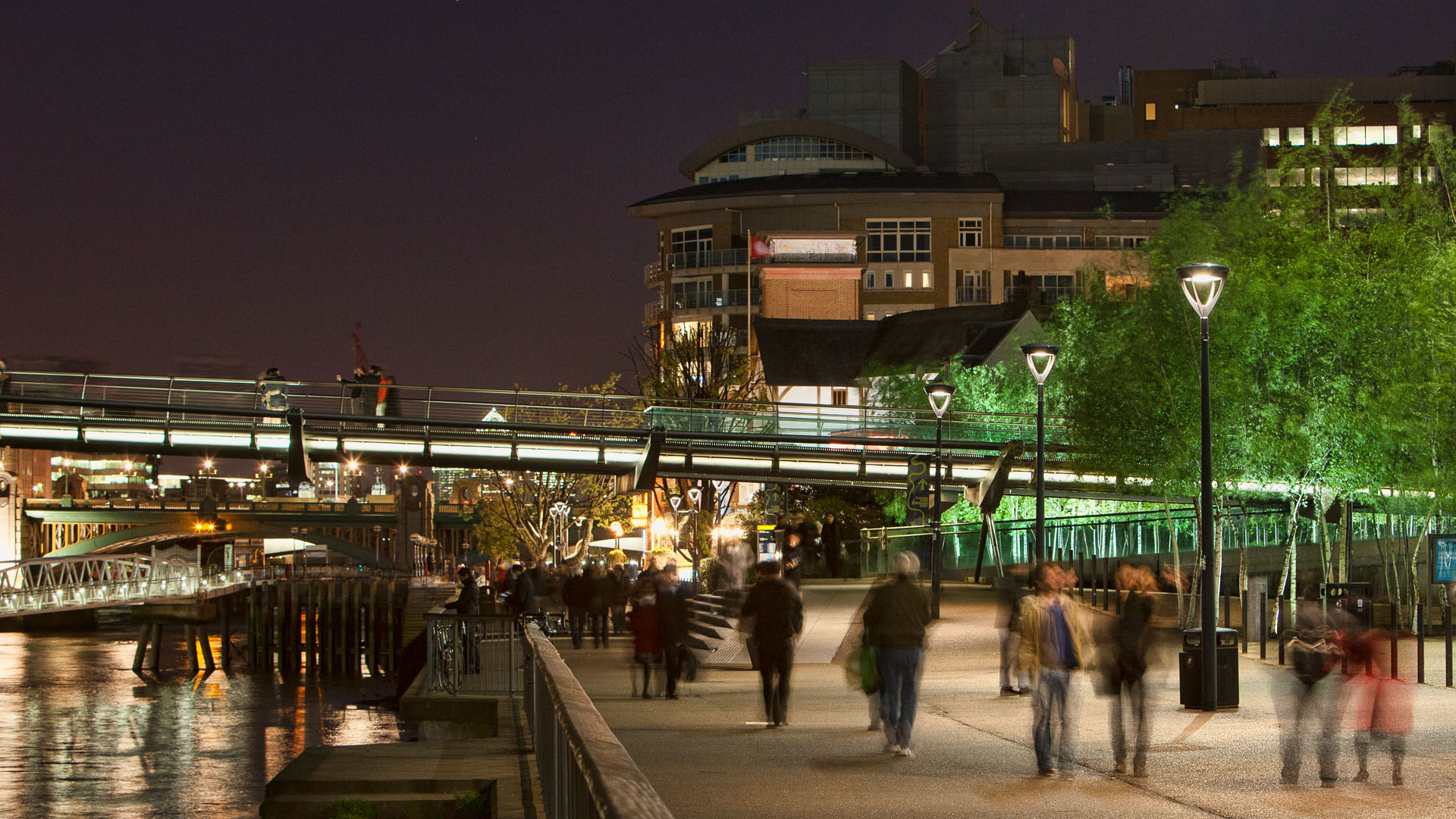

Milano Decorative Street Lighting Location image 1920x1080px Alt1

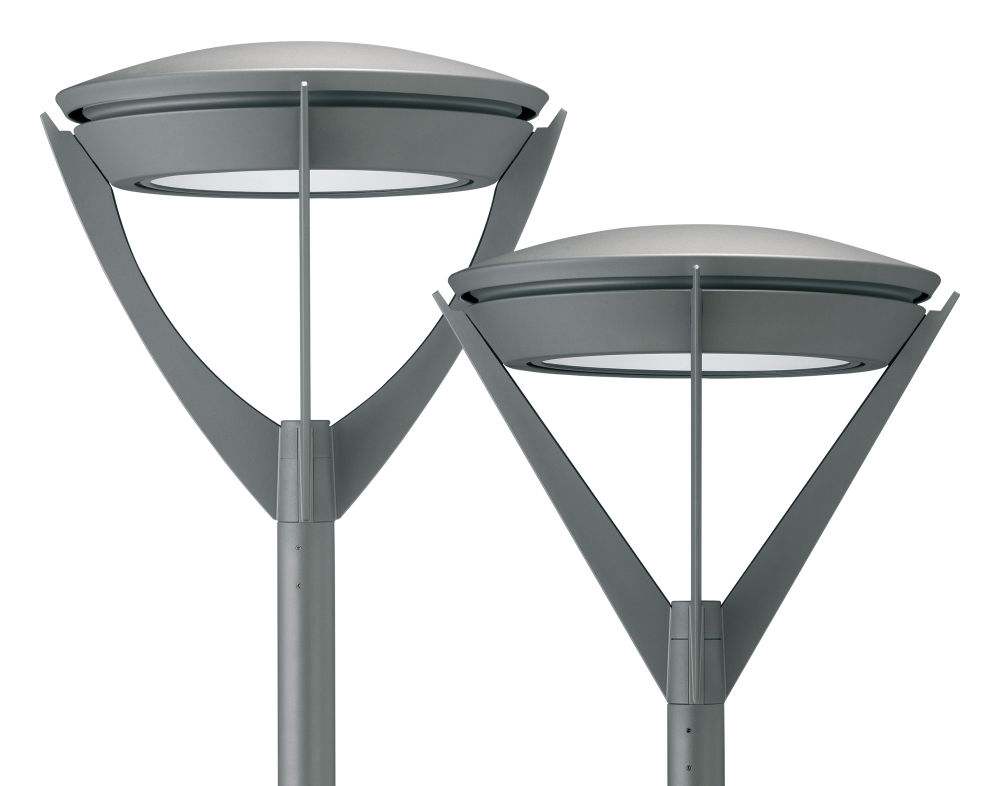

Milano Decorative Street Lighting Product image 2000x1572px Alt2

Downloads

Milano Original photometry

Format: ZIP compressed file, (2.7 MB)

Milano Original product codes

Format: Adobe Acrobat PDF file, (38 KB)

Original shape, with straight or curved arms

While we've recently launched two NEW Milano luminaires: Milano Halo and Milano Classic, our original Milano remains in our range for scheme consistency, lamp options and a choice of curved or straight arms.

  • Suitable for mounting at 4-6 metres
  • Available with flat toughened glass or polycarbonate diffuser

Request a quote

Options in this range

Name Light source Distribution Power Range LED qty
Performance LED High power LED Diamond+, Road, Residential, Footpath, Area 16, 32
CosmoPolis Lamp Diamond Optic® 45, 60, 90, 140
SON-T Lamp Diamond Optic® 50, 70, 100, 150
CDO-TT Lamp Diamond Optic® 50, 70, 100, 150



Two styles

Milano Original has a choice of two canopy support arms to closely enhance the surrounding architecture or landscape:

  • Curved arms
  • Straight arms
  • Milano Original Curved arm style 150x120px

    Curved arms

  • Milano Original Straight arm style 150x120px

    Straight arms

Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

PAN 7621 Metallic silver colour swatch 548x548px

PAN 7621

Metallic silver

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
4-6
Applications:
Public realm
Buildings
Car parks
Rail

Lighting

LED qty:
16-32

Power and control

Controls:
Photocell
Part night switching
Pre-programmed dimming
CMS compatible
Sensor ready

Mechanical and installation

Materials:
Body & entries: High pressure die-cast aluminium
Canopy: Spun aluminium
Glazing: Flat toughened glass
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
PAN 7621 Metallic silver
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Mounting:
Post Top: Ø76mm / Ø89mm (on request)

Downloads and resources

Downloads

Milano Original photometry

Format: ZIP compressed file, (2.7 MB)

Milano Original product codes

Format: Adobe Acrobat PDF file, (38 KB)

Dimensions

Milano Straight Arm product dimension drawing W573px
Dimensions (mm):
  • A 630
  • Ø B 700
  • Ø C 76
Weight (kg):
16
Windage (m2):
0.16
Milano Curved Arm product dimenion drawing W573px
Dimensions (mm):
  • A 630
  • Ø B 700
  • Ø C 76
Weight (kg):
16
Windage (m2):
0.16
