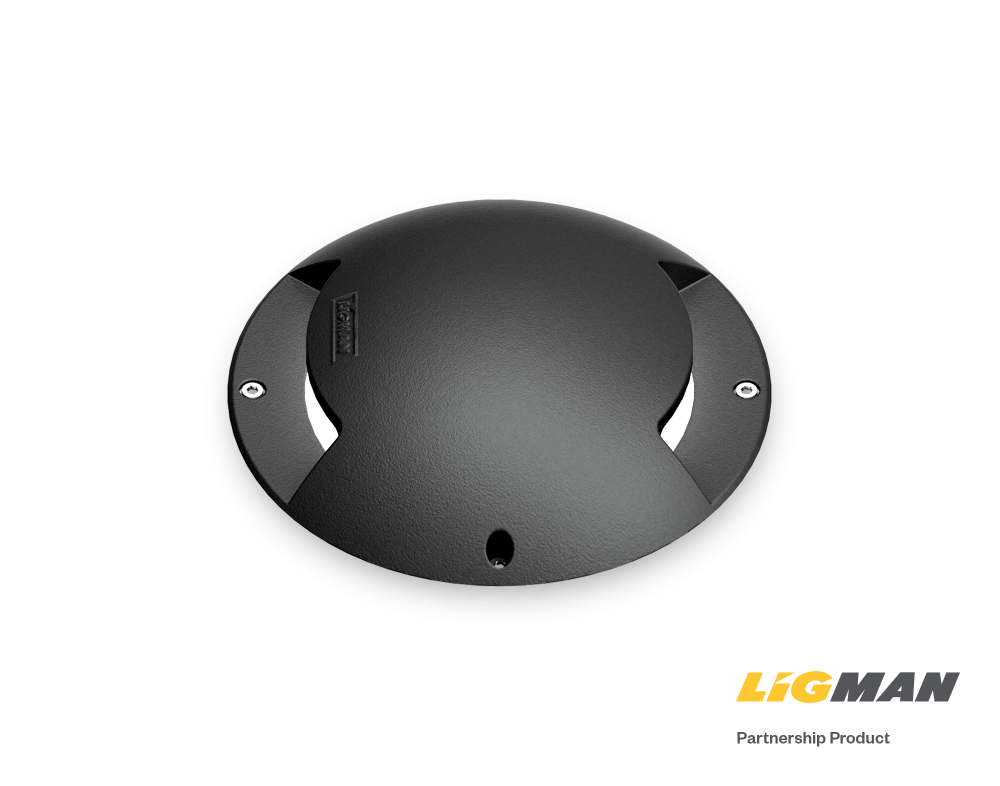

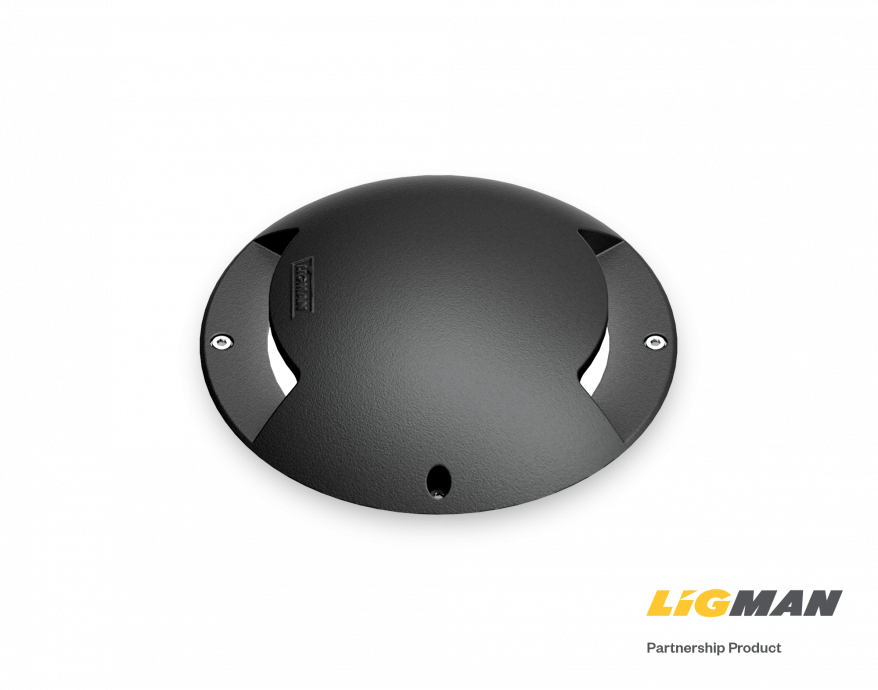

In-ground luminaires
Walk & drive-over semi-recessed in-ground marker lights. Tough, clean-aesthetics, with multiple light-emission directions.
- Die-cast aluminium housing and frame pre-treated before powder coating ensuring high corrosion resistance
- Single cable entry
- Through wiring on request
- Stainless steel fasteners in grade 316
- Durable silicone rubber gasket
- Clear glass lens
- Integral control gear
- Recessing box in high density polyethylene is included
- To ensure efficient drainage, gravel must be used to a depth of 450 mm and width of 300 mm beneath the housing and should also be placed around luminaire
- Suitable for drive-over with a maximum load of 4,000kg for fixtures ref: MK-60249 & MK-60259, 2,000kg for MK-60269 and 1,000kg for MK-60729
- Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 10 km/h
- Load is transferred by the housing to the foundation
Request a quote
Request a quote
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP67
IK rating:
IK10
Certifications:
CE
Applications:

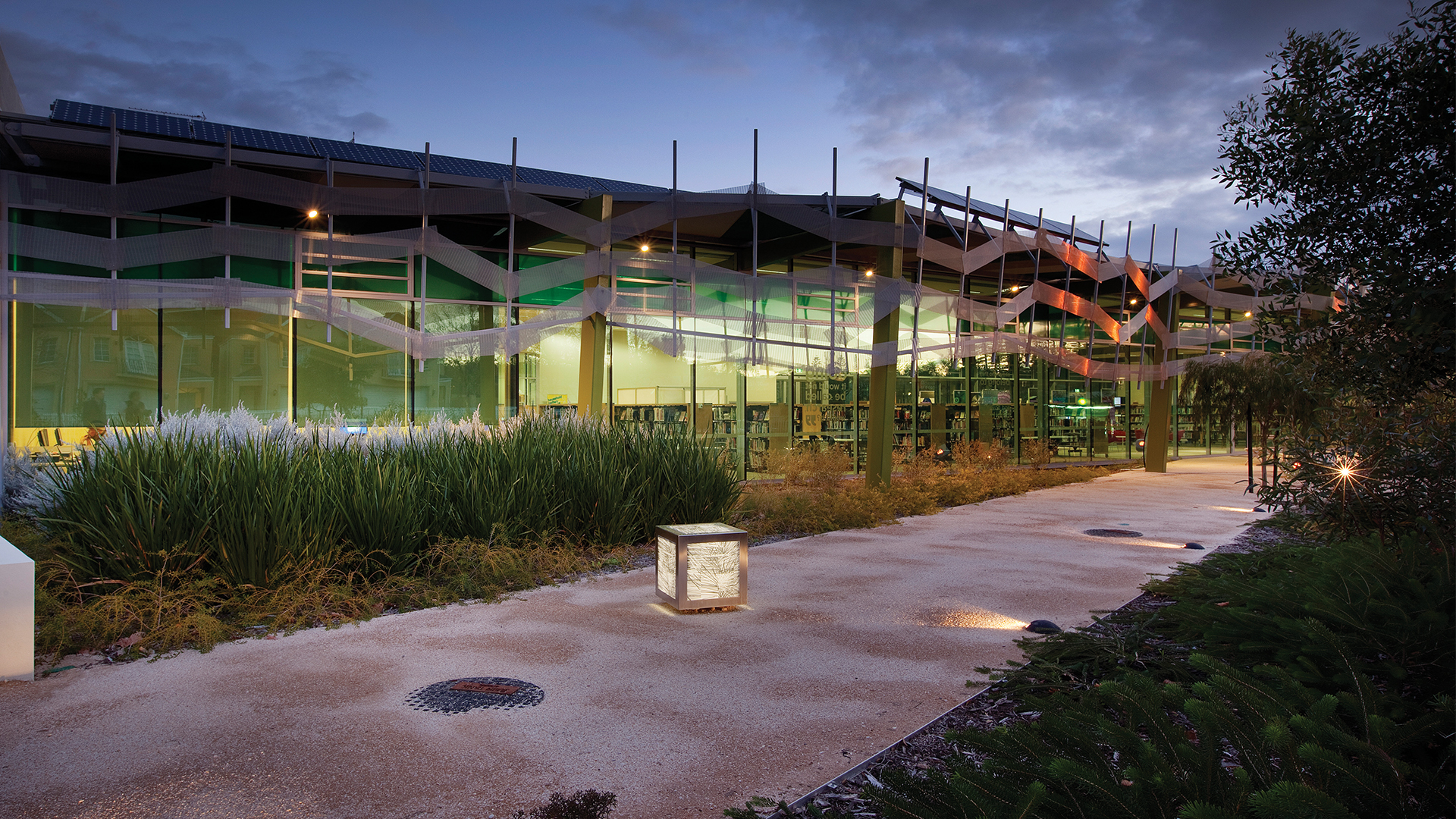

Paths & walkways
Car parks
Car parks
Lighting
Light source:
Chip on Board LED (CoB)
Lumen Range (lumens):
202-220
Power Range:
8
LED qty:
2
Distribution:
90° / 90°
Colour Temperature (CCT):
3000K
4000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 28lm/W
L90 Lifetime Estimate:
>50,000hrs
Power and control
Voltage:
220-240V
Drive Current Range:
350mA
Dimming:
On/Off, 1-10V, DALI
Mechanical and installation
Materials:
Body: Die-cast aluminium
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Ground recessed
Downloads and dimensions
Dimensions (mm):
- A 218
Weight (kg):
4.1
4.1
