LuxEOS Inground 9

Change view:

website block banner products slider product image 2000x1572px luxeos inground 10

Downloads

Product Datasheet

Format: Adobe Acrobat PDF file, (3.8 MB)

Photometric Datasheet

Format: ZIP compressed file, (16 MB)

Installation Instructions

Format: Adobe Acrobat PDF file, (3.1 MB)

High-performance ground recessed colour changing projector

LuxEOS Inground is a high-quality LED ground recessed solution for exterior applications. Designed to eliminate moisture ingress, LuxEOS Inground is factory-sealed to ensure ease of installation and peace of mind. Available in a choice of dynamic LED light sources and a wide range of light distributions from the narrow spot (10°) to extra-wide flood (80°).

  • RGBA, RGBW light source options
  • Factory-sealed unit, IP67 rated water protection
  • Impact protection IK10 rated with 3000kg static load
  • Rated lifetime up to 100,000 hours
  • Precision diming with InterBIT Smoothing technology
  • 10°, 20°, 40°, 80° & 10° x 60° light distributions



Request a quote

Options in this range

Name Lumen Range (lumens) Colour Temperature (CCT) Colour rendering (CRI)
RGBA (1700K) 1491-1620 RGB + 1700K White Up to 90Ra
RGBW (2700K) 1608-1723 RGB + 2700K White >90Ra
RGBW (5700K) 1839-1998 RGB + 5700K White >90Ra

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP67
IK rating:
IK10
Certifications:
CE, UKCA
Applications:
Public Realm
Buildings
Paths & Walkways
Bridges & Footbridges

Lighting

Light source:
RGBW, RGBA
Lumen Range (lumens):
1491-1998
Power Range:
50
Distribution:
Circular: 10 / 20 / 40 / 80°
Elliptical: 10x60 / 60x10°
Colour Temperature (CCT):
RGBA (1700K)
RGBW (2700K)
RGBW (5700K)
Tunable White
Colour rendering (CRI):
Up to 90Ra
L70 Lifetime Estimate:
70000 hrs

Power and control

Voltage:
120-277V
Dimming:
0 to 100%
Controls:
DMX/RDM

Mechanical and installation

Tilt / inclination:
0°, 8°, 20° tilt
Materials:
Body: Aluminium
Bezel: Stainless steel
Glazing: 15mm toughened glass
Product colours:
Stainless Steel
Operating temp (°C):
-20° to +50°
Mounting:
Ground Recessed

Downloads and dimensions

Product Datasheet

Format: Adobe Acrobat PDF file, (3.8 MB)

Photometric Datasheet

Format: ZIP compressed file, (16 MB)

Installation Instructions

Format: Adobe Acrobat PDF file, (3.1 MB)

Wiring & Control Instructions

Format: Adobe Acrobat PDF file, (1.1 MB)

Ground Mount Datasheet

Format: Adobe Acrobat PDF file, (2 MB)

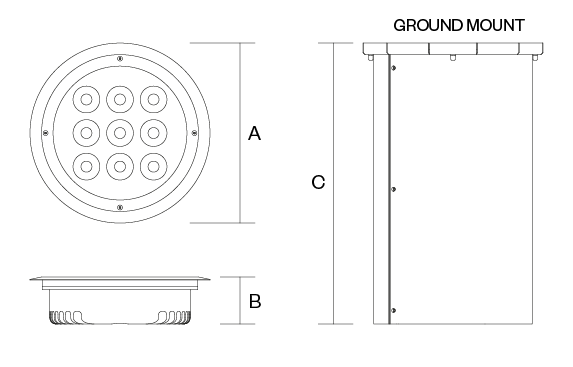

luxeos inground 9 dimensioned drawing 2
Dimensions (mm):
  • Ø A 295
  • B 77
  • C 417
Weight (kg):
3.9
