Lightalk 2

Change view:

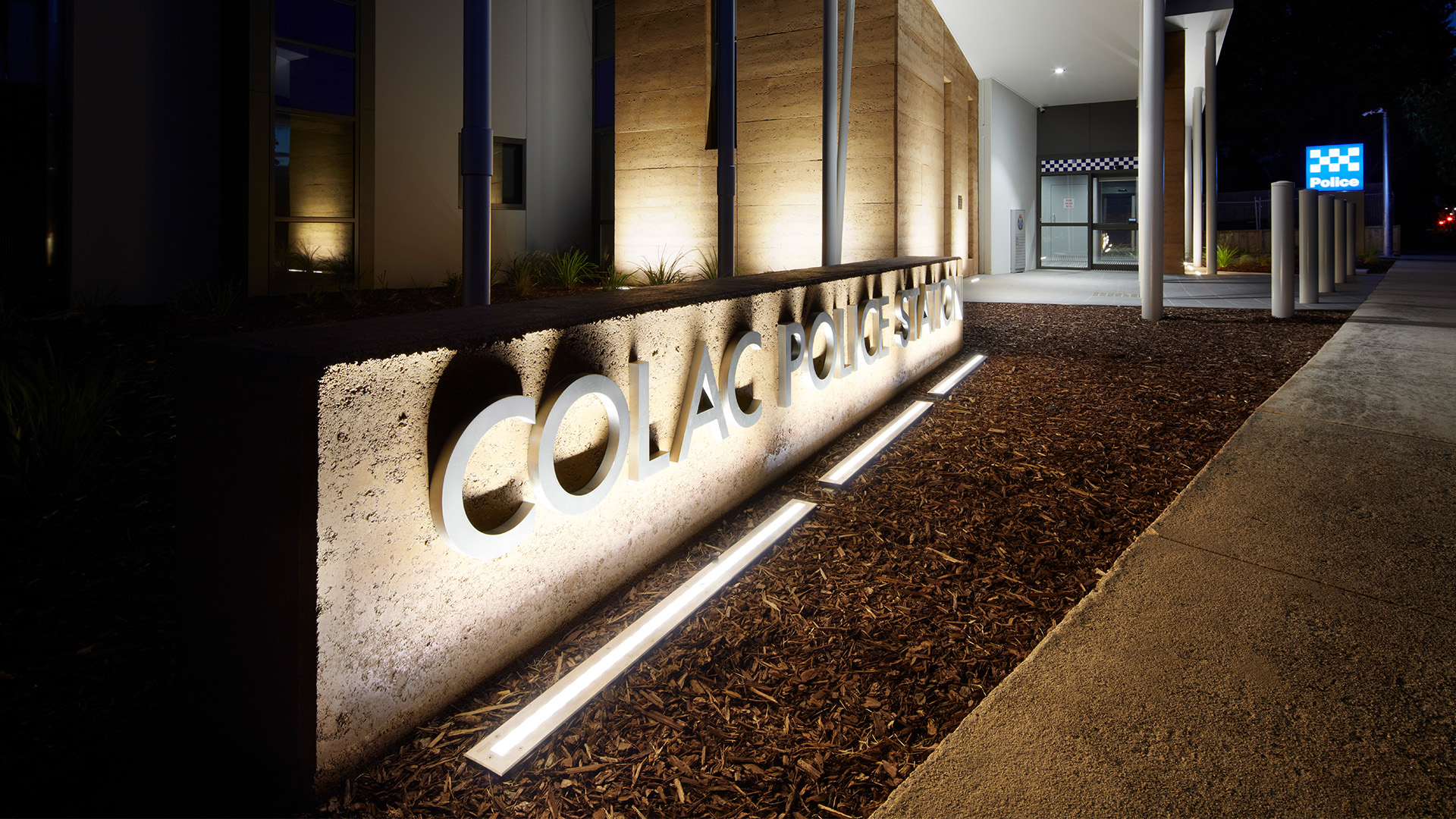

Lightalk 1 In ground Location image LIGMAN 1920x1080px3

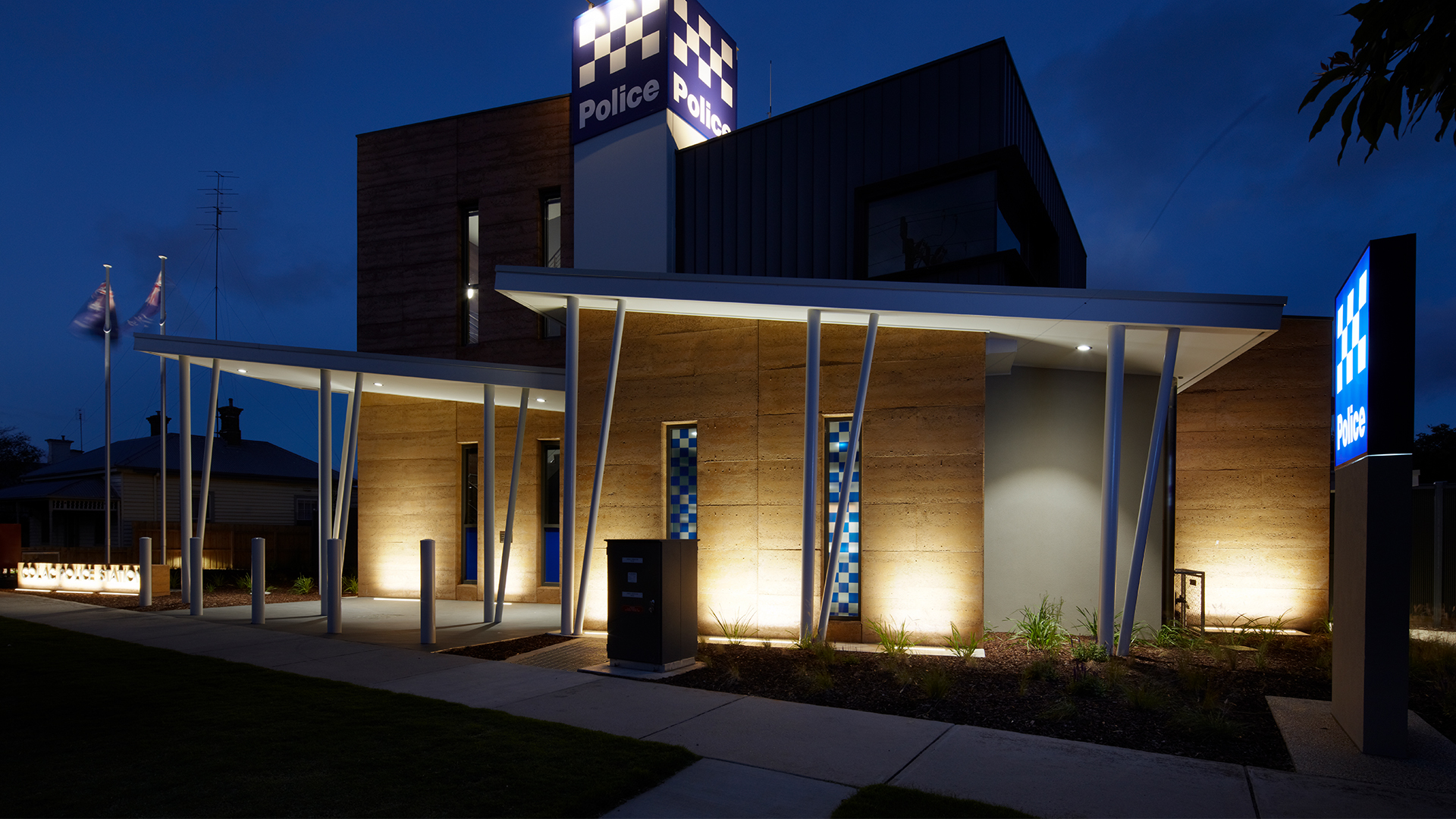

Lightalk 2 In ground Location image LIGMAN 1920x1080px3
Lightalk 3 In ground Location image LIGMAN 1920x1080px3

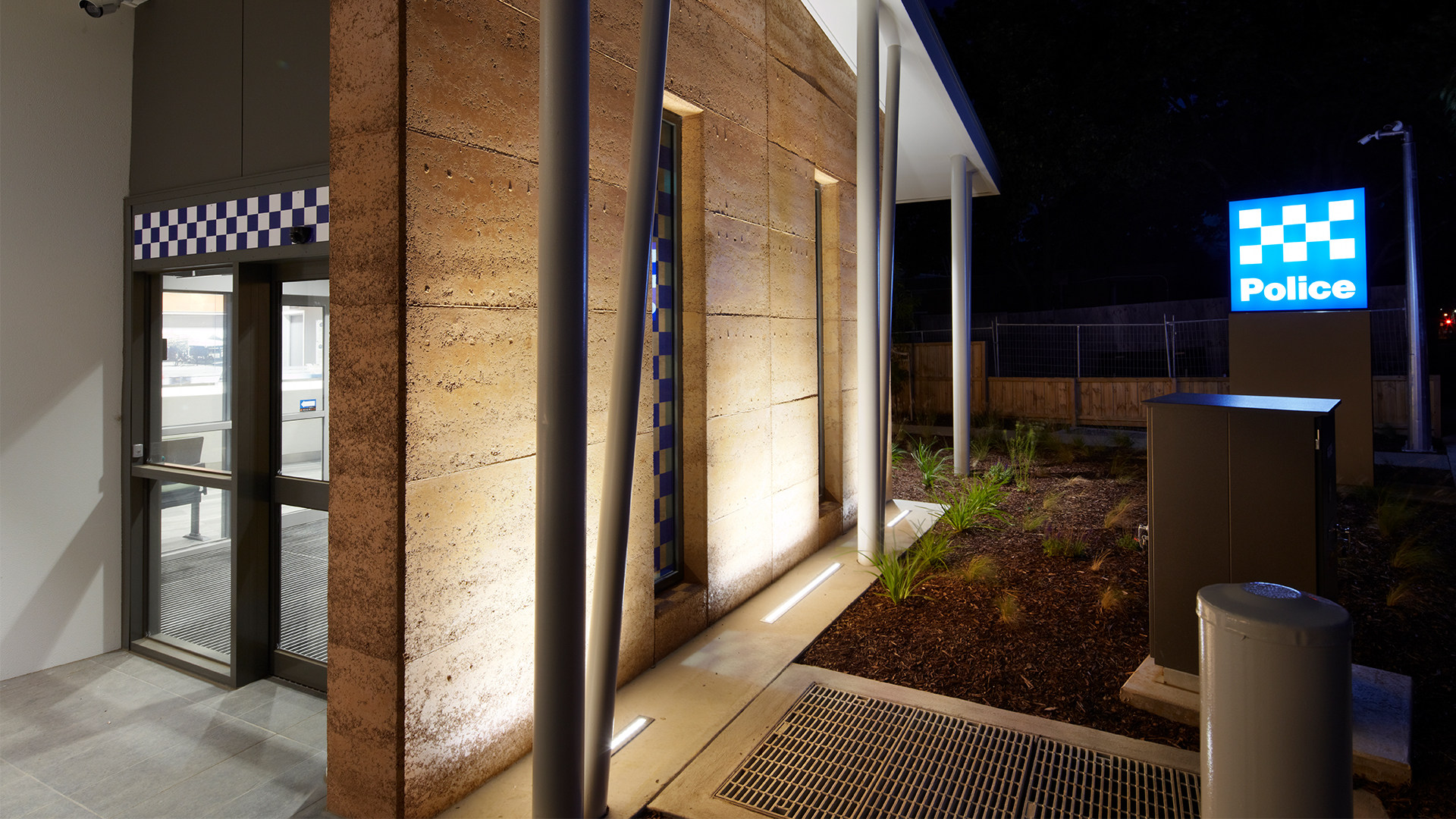

Lightalk 4 In ground Location image LIGMAN 1920x1080px3

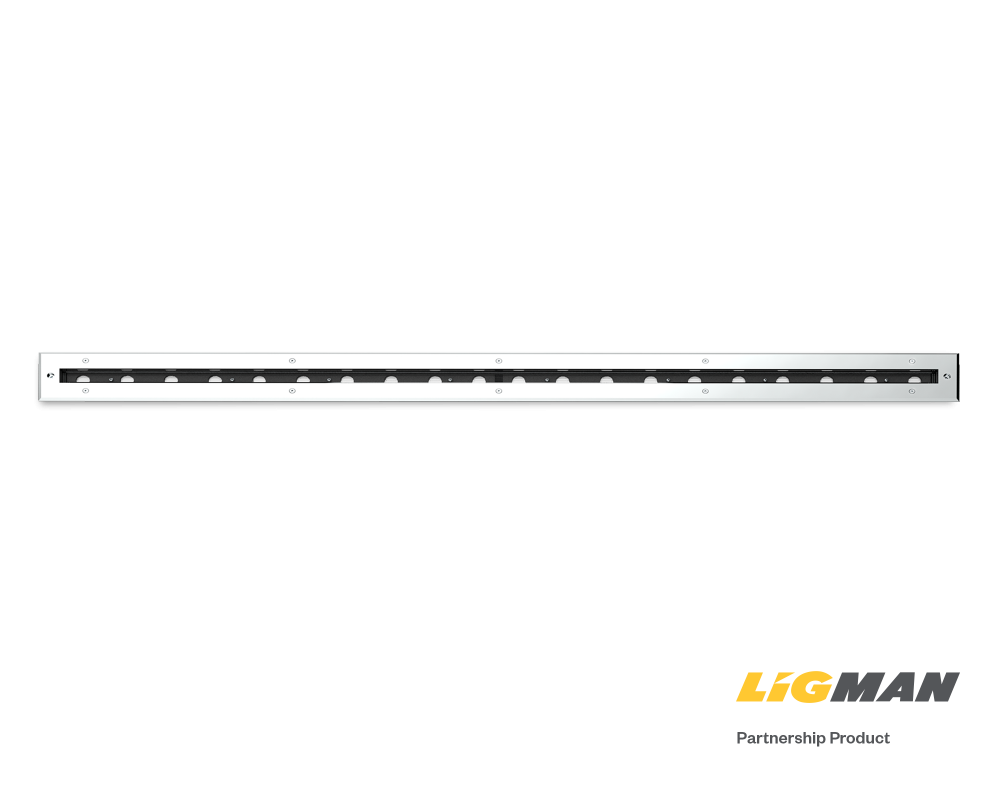

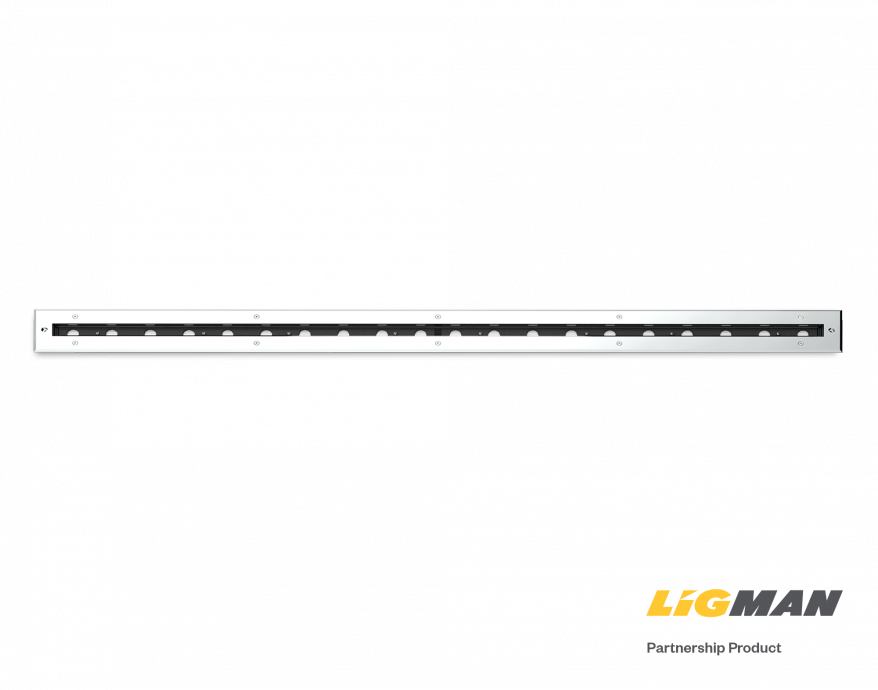

Lightalk 2 Product slider Product image LIGMAN 2000x1572px

Downloads

Lightalk family datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Lightalk 2 655mm datasheet

Format: Adobe Acrobat PDF file, (570 KB)

Lightalk 2 installation instructions

Format: Adobe Acrobat PDF file, (1.1 MB)

In-ground RGBW luminaire

Efficient quality linear fixture portfolio. Coordinated in-ground range with multiple optics and component options.

  • Die-cast aluminium end-caps and extruded aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Stainless steel frame
  • Single cable entry
  • Through wiring on request
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • Clear toughened 8 mm thick glass
  • Integral control gear
  • Recessing box is not included
  • Suitable for walk-over with a maximum load of 500kg

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP67
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Paths & walkways

Lighting

Light source:
Surface Mounted Device LED (SMD)
Lumen Range (lumens):
1592-3839
Power Range:
33-66
LED qty:
20, 2x20
Distribution:
Very narrow 10°
Narrow 13°
Medium 24°
Wide 43°
Elliptical 16° x 35°
Colour Temperature (CCT):
RGBW 3000K
RGBW 4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 58lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
500mA
Dimming:
DMX

Mechanical and installation

Materials:
Body: Die-cast aluminium
Frame: Stainless steel
Glazing: Glass
Finish:
Powder coat
Product colours:
Stainless steel
Mounting:
Ground recessed

Downloads and dimensions

Lightalk family datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Lightalk 2 655mm datasheet

Format: Adobe Acrobat PDF file, (570 KB)

Lightalk 2 installation instructions

Format: Adobe Acrobat PDF file, (1.1 MB)

Lightalk 2 1250mm datasheet

Format: Adobe Acrobat PDF file, (578 KB)

Completed Lightalk 655 Product variant dimensions drawing LIGMAN W573px4
Dimensions (mm):
  • A 655
  • B 85
  • C 560
  • D 85
  • E 101
Weight (kg):
4.9
Completed Lightalk 1250 Product variant dimensions drawing LIGMAN W573px4
Dimensions (mm):
  • A 1250
  • B 85
  • C 485
  • D 85
  • E 101
Weight (kg):
7.4
