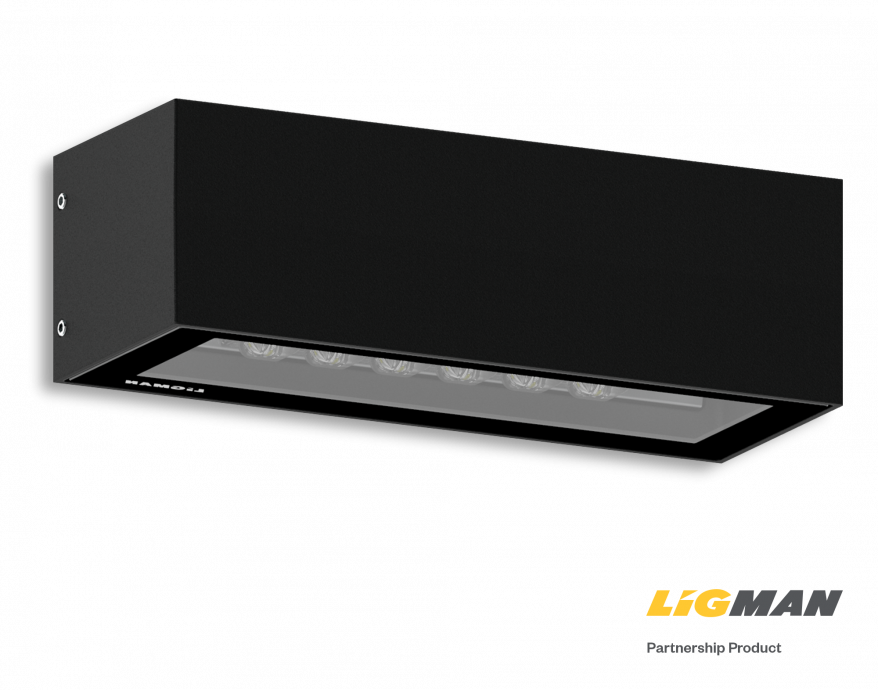

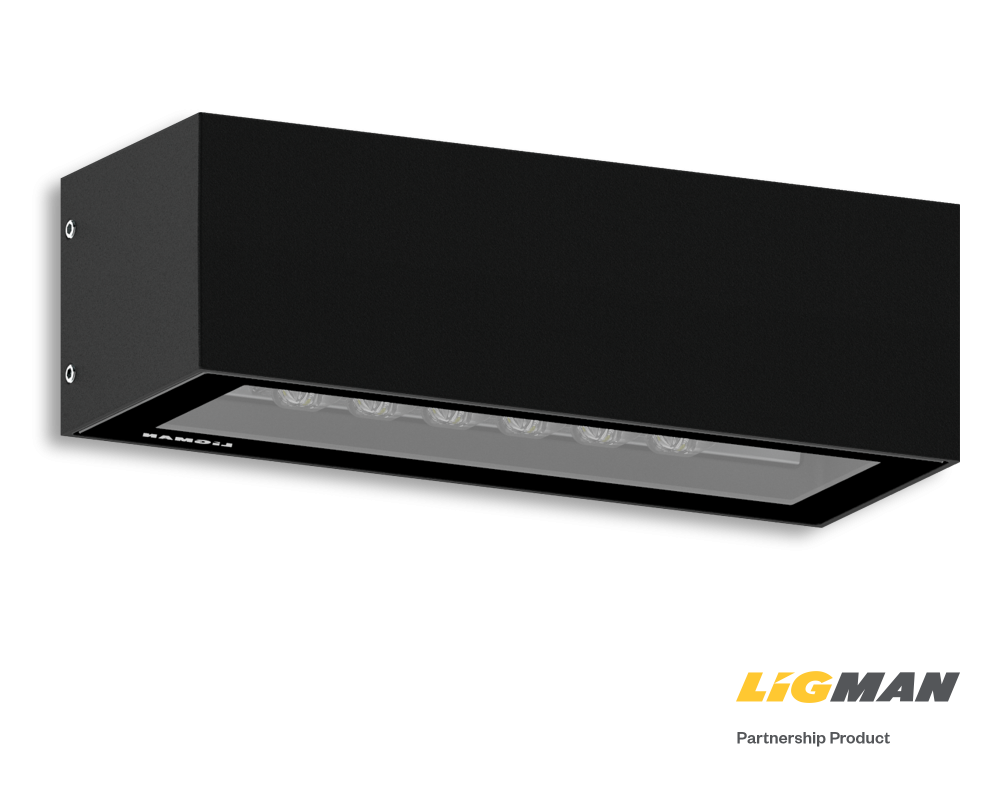

Surface wall luminaire
Clean, beautiful, surface wall-fixtures with class leading performance. Minimalist form, yet the most powerful and flexible lighting tool of its type, offering up to 2422 lumens and various street optic options.
- Die-cast aluminium housing and frame pre-treated before powder coating ensuring high corrosion resistance
- Single cable entry
- Through wiring on request
- Stainless steel fasteners in grade 316
- Durable silicone rubber gasket
- Clear toughened glass
- Integral control gear
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Applications:
Public realm
Buildings
Buildings
Lighting
Light source:
Service Mounted Device LED (SMD)
Lumen Range (lumens):
2045-2422
Power Range:
19.7
LED qty:
3 x 4
Distribution:
Direct - Medium 30°
Wide 56°
EW 109° x 102°
ME 140° x 62°
T2 137° x 58°
T3 124° x 86°
T4 108° x 66°
Wide 56°
EW 109° x 102°
ME 140° x 62°
T2 137° x 58°
T3 124° x 86°
T4 108° x 66°
Colour Temperature (CCT):
3000K
4000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 123lm/W
L80 Lifetime Estimate:
>92,000hrs
Power and control
Voltage:
220-240V
Drive Current Range:
500mA
Dimming:
On/Off, 1-10V, DALI
Mechanical and installation
Materials:
Body: Die-cast aluminium
Glazing: Glass
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall surface
Downloads and dimensions
Dimensions (mm):
- A 260
- B 95
- C 80
Weight (kg):
1.8
1.8
