Leeds 5

Change view:

Leeds Wall and ceiling LIGMAN Product Slider Location Image 1920x1080px5
Leeds 5 Product slider Product image LIGMAN 2000x1572px

Downloads

Leeds 3-4-5-6 installation instructions

Format: Adobe Acrobat PDF file, (375 KB)

Leeds family datasheet

Format: Adobe Acrobat PDF file, (2.3 MB)

Leeds 5 datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Surface wall luminaire

Clean, beautiful, surface wall-fixtures with class leading performance. Minimalist form, yet the most powerful and flexible lighting tool of its type, offering up to 4844 lumens and various street optic options.

  • Die-cast aluminium housing and frame pre-treated before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Through wiring on request
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • Clear toughened glass
  • Integral control gear

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Applications:
Public realm
Buildings

Lighting

Light source:
Service Mounted Device LED (SMD)
Lumen Range (lumens):
4090-4844
Power Range:
39.4
LED qty:
3 x 4 & 8
Distribution:
Direct & Indirect - Medium 30°
Wide 56°
EW 109° x 102°
ME 140° x 62°
T2 137° x 58°
T3 124° x 86°
T4 108° x 66°
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 123lm/W
L80 Lifetime Estimate:
>92,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
500mA
Dimming:
On/Off

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall surface

Downloads and dimensions

Leeds 3-4-5-6 installation instructions

Format: Adobe Acrobat PDF file, (375 KB)

Leeds family datasheet

Format: Adobe Acrobat PDF file, (2.3 MB)

Leeds 5 datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

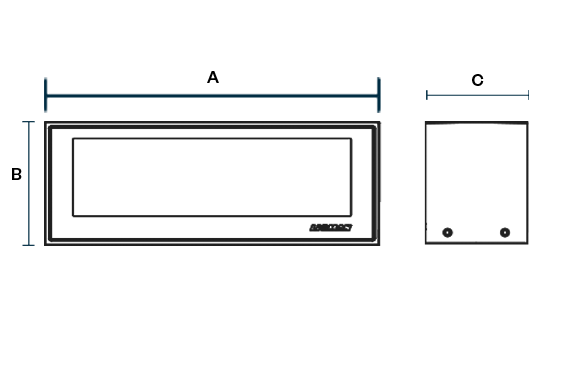

Completed Leeds 5 Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 260
  • B 95
  • C 80
Weight (kg):
2.0
