Lador 2

Change view:

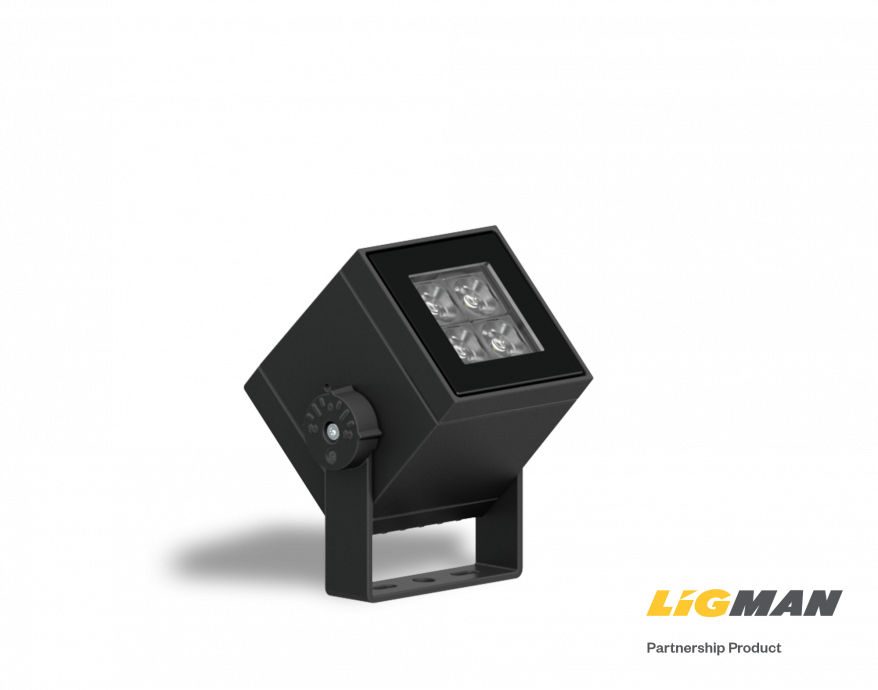

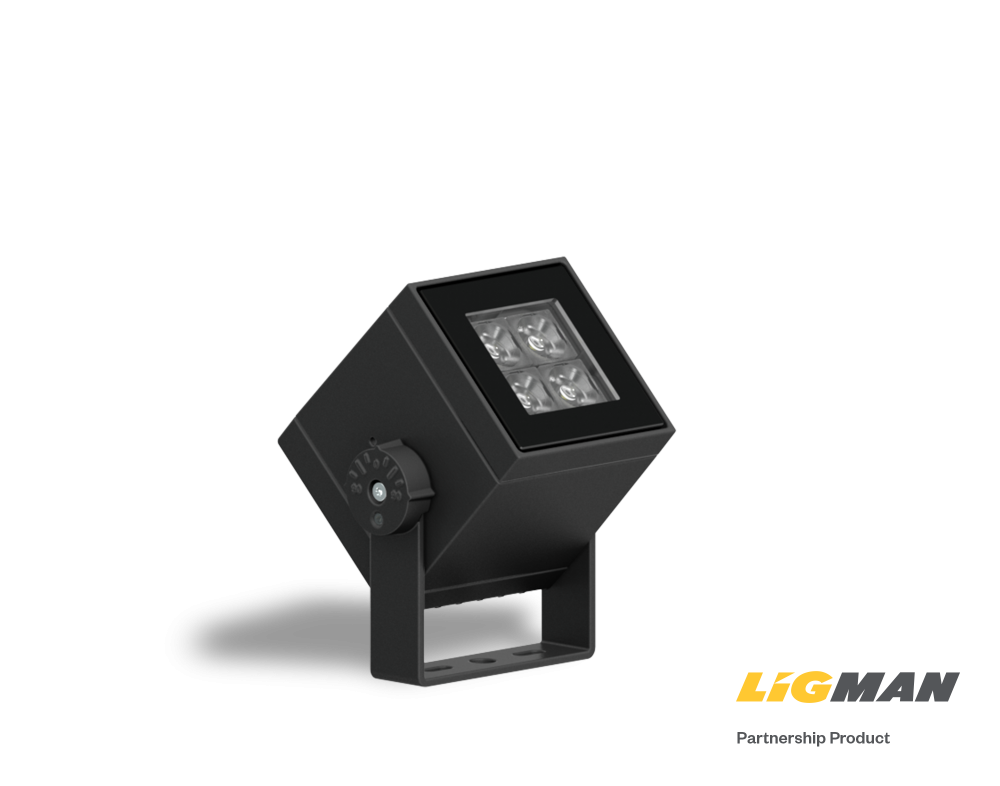

Lador 2 Product slider Product image LIGMAN 2000x1572px

Downloads

Lador floodlight family datasheet

Format: Adobe Acrobat PDF file, (2.8 MB)

Lador 2 datasheet

Format: Adobe Acrobat PDF file, (963 KB)

Lador 1 and 2 installation instructions

Format: Adobe Acrobat PDF file, (292 KB)

Floodlights & projectors

Square surface architectural floodlight range. Four sizes of square artistic precision with wide range of beam distributions.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Thermal heat dissipation body
  • Single cable entry
  • Through wiring on request for LD-50021, LD-50031
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • High-efficiency PMMA lens
  • Clear toughened glass
  • Integral control gear

Detailed Specification

Product specification

IP rating:
IP66
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings
Area lighting

Lighting

Light source:
Surface Mounted Device LED (SMD)
Lumen Range (lumens):
425-904
LED qty:
4
Colour rendering (CRI):
>80Ra

Power and control

Voltage:
220-240V

Mechanical and installation

Tilt / inclination:
-40° to +90°
Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Ground surface

Downloads and dimensions

Lador floodlight family datasheet

Format: Adobe Acrobat PDF file, (2.8 MB)

Lador 2 datasheet

Format: Adobe Acrobat PDF file, (963 KB)

Lador 1 and 2 installation instructions

Format: Adobe Acrobat PDF file, (292 KB)

Completred Lador 1 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 82
  • B 82
  • C 125
  • D 95
  • E 15
Weight (kg):
1.0
