Surface exterior downlight
Square surface ceiling-mounted architectural range. Four sizes of square artistic precision with wide range of beam distributions.
- Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
- Single cable entry
- Stainless steel fasteners in grade 316
- High-efficiency PMMA lens
- Durable silicone rubber gasket
- Clear toughened glass
- Integral control gear
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Applications:
Public realm
Buildings
Buildings
Lighting
Light source:
Service Mounted Device LED (SMD)
Lumen Range (lumens):
1542-1975
Power Range:
21
LED qty:
9
Distribution:
Narrow 10°
Medium 19°
Wide 33°
Very wide 71°
Elliptical 41° x 14°
Medium 19°
Wide 33°
Very wide 71°
Elliptical 41° x 14°
Colour Temperature (CCT):
3000K
4000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 94lm/W
L90 Lifetime Estimate:
>100,000hrs
Power and control
Voltage:
220-240V
Drive Current Range:
700mA
Dimming:
On/Off, DALI
Mechanical and installation
Materials:
Body: Die-cast aluminium
Glazing: Glass
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Ceiling surface
Downloads and dimensions

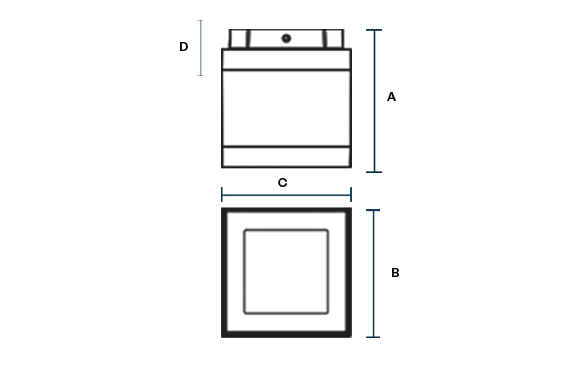

Dimensions (mm):
- A 128
- B 120
- C 120
- D 38
Weight (kg):
2.1
2.1
