Lador 10

Change view:

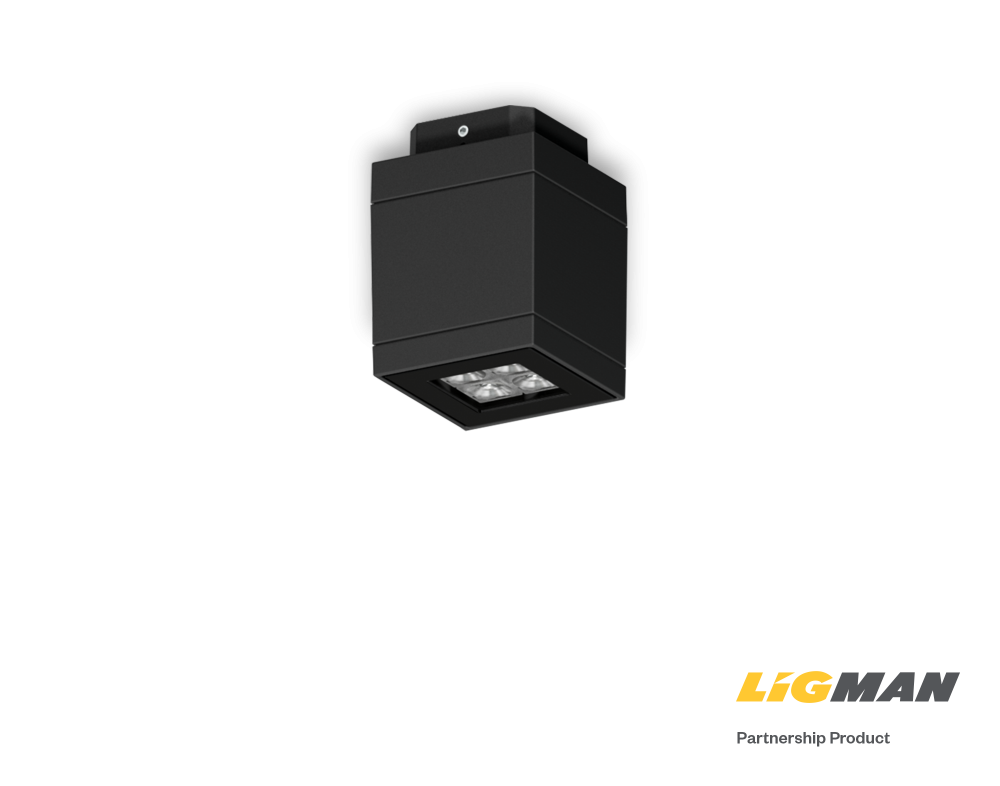

Lador 10 Product slider Product image LIGMAN 2000x1572px

Downloads

Lador Ceiling family datasheet

Format: Adobe Acrobat PDF file, (802 KB)

Lador 10 datasheet

Format: Adobe Acrobat PDF file, (601 KB)

Lador 10 installation instructions

Format: Adobe Acrobat PDF file, (282 KB)

Surface exterior downlight

Square surface ceiling-mounted architectural range. Four sizes of square artistic precision with wide range of beam distributions.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Stainless steel fasteners in grade 316
  • High-efficiency PMMA lens
  • Durable silicone rubber gasket
  • Clear toughened glass
  • Integral control gear

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Applications:
Public realm
Buildings

Lighting

Light source:
Service Mounted Device LED (SMD)
Lumen Range (lumens):
686-904
Power Range:
11
LED qty:
4
Distribution:
Narrow 10°
Medium 19°
Wide 33°
Very wide 71°
Elliptical 41° x 14°
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 82lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
700mA
Dimming:
On/Off

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Ceiling surface

Downloads and dimensions

Lador Ceiling family datasheet

Format: Adobe Acrobat PDF file, (802 KB)

Lador 10 datasheet

Format: Adobe Acrobat PDF file, (601 KB)

Lador 10 installation instructions

Format: Adobe Acrobat PDF file, (282 KB)

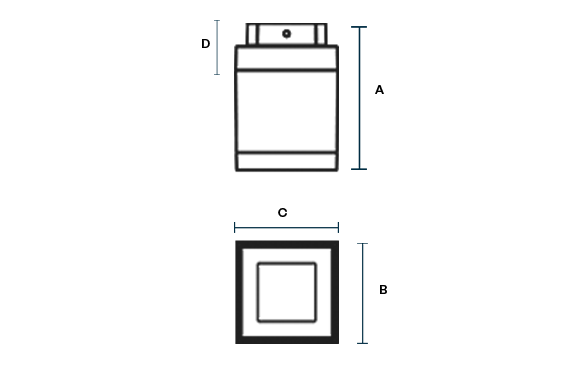

Completed Lador 10 Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 118
  • B 82
  • C 82
  • D 38
Weight (kg):
1.1
