Kova Surface

Change view:

Kova Surface Underpass and Anti Vandal Location image 1920x1080px Alt1

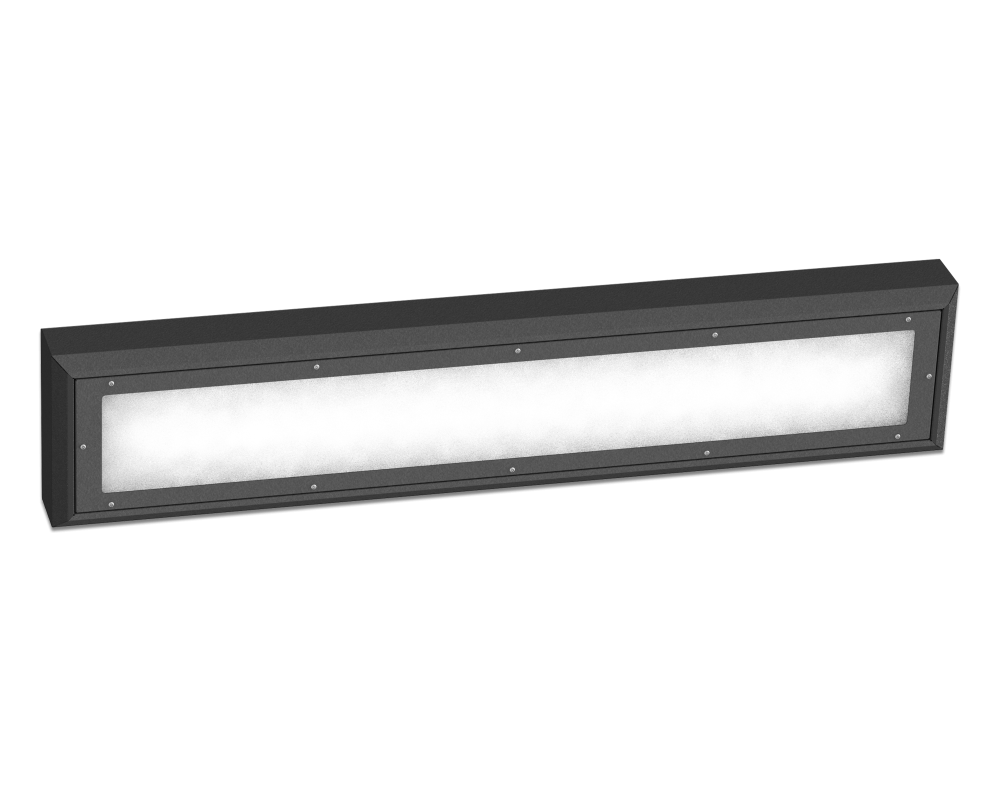

Kova Surface Underpass and Anti Vandal Product image 2000x1572px Alt1

Downloads

Kova brochure

Format: Adobe Acrobat PDF file, (813 KB)

Kova Surface datasheet

Format: Adobe Acrobat PDF file, (82 KB)

Kova Surface instructions

Format: Adobe Acrobat PDF file, (968 KB)

Extreme performance in tough situations

The Kova family of highly efficient anti-vandal luminaires are fabricated in stainless steel and thick polycarbonate to provide an IK rating of 10+ Available with a range of extras to offer further energy savings and increased vandal resistance, the Kova family offers extreme performance for tough applications.

  • Supplied in three sizes: 600, 1200 and 1500mm
  • Certified IK10+ and tested against impact to 150J for extreme performance

  Request a quote

Options in this range

Name Lumen Range (lumens) Power Range Dimensions (mm) Weight (kg)
KOV S 60 1 2113 18.8 Length: 600 12
KOV S 60 2 2857 27.2 Length: 600 12
KOV S 60 3 4171 36.6 Length: 600 12
KOV S 60 4 4665 42.1 Length: 600 12
KOV S 12 1 4420 36.6 Length: 1200 20
KOV S 12 2 4990 42.1 Length: 1200 20
KOV S 12 3 5921 53.5 Length: 1200 20
KOV S 12 4 9037 72.1 Length: 1200 20
KOV S 12 5 9853 83.2 Length: 1200 20
KOV S 15 1 5040 45.4 Length: 1500 27
KOV S 15 3 7237 72.7 Length: 1500 27

Features




ResImages(5821, 0, 'desktop').Title

Standard colour

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP65
IK rating:
IK10+
Certifications:
CE
Applications:
Rail

Lighting

Light source:
Linear mid power LED
Lumen Range (lumens):
2113-9853
Distribution:
Asymmetric
Colour Temperature (CCT):
4000K
Colour rendering (CRI):
80Ra
Max efficacy (luminaire lumens):
125lm/W
L90 Lifetime Estimate:
>50,000hrs

Power and control

Dimming:
1-10V, DALI
Controls:
1-10V
DALI
Emergency battery backup
Driver:
Tridonic

Mechanical and installation

Materials:
Body: Fabricated stainless steel
Glazing: Polycarbonate
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-30°C to +45°C
Mounting:
Surface Mount
Wall Mount

Downloads and dimensions

Kova brochure

Format: Adobe Acrobat PDF file, (813 KB)

Kova Surface datasheet

Format: Adobe Acrobat PDF file, (82 KB)

Kova Surface instructions

Format: Adobe Acrobat PDF file, (968 KB)

Kova product codes

Format: Adobe Acrobat PDF file, (25 KB)

Kova photometry

Format: ZIP compressed file, (118 KB)

Kova Surface 600 product dimension drawing W573px
Dimensions (mm):
  • A 760
  • B 280
  • C 110
Weight (kg):
12
Kova Surface 1200 product dimension drawing W573px
Dimensions (mm):
  • A 1370
  • B 280
  • C 110
Weight (kg):
20
Kova Surface 1500 product dimension drawing W573px
Dimensions (mm):
  • A 1670
  • B 280
  • C 110
Weight (kg):
27
