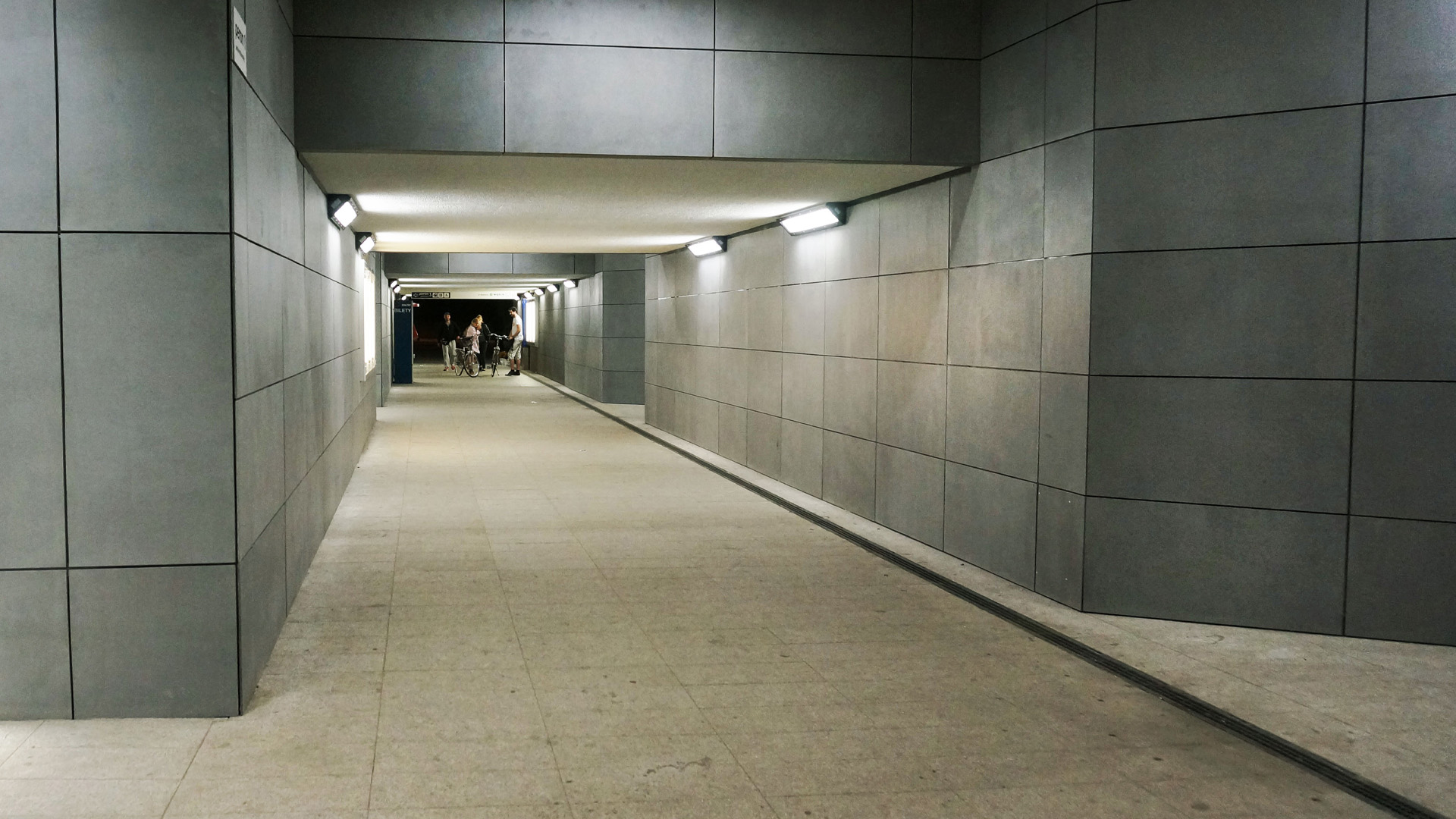

Kova Corner Underpass and Anti Vandal Location image 1920x1080px Alt1

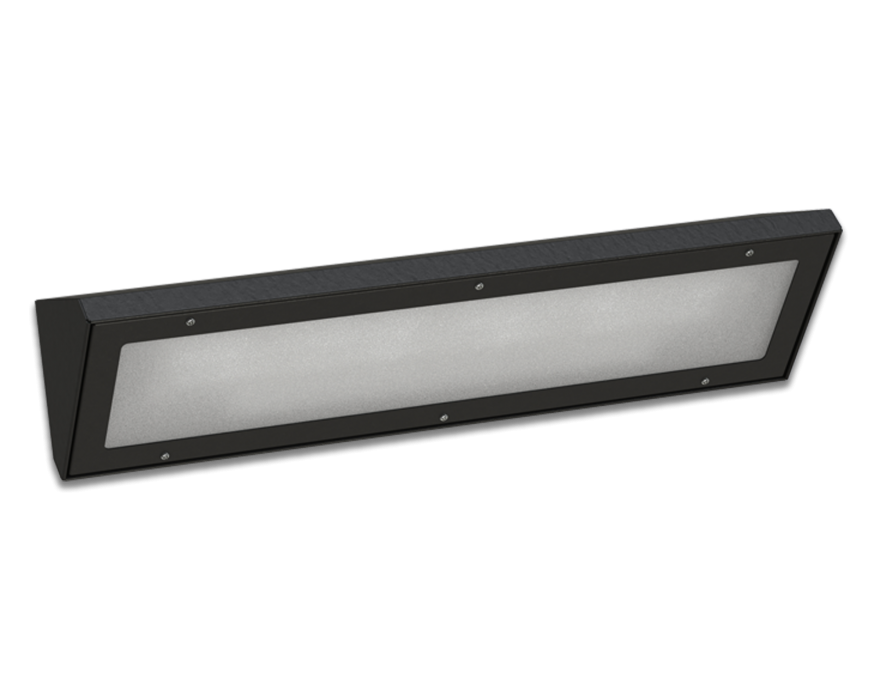

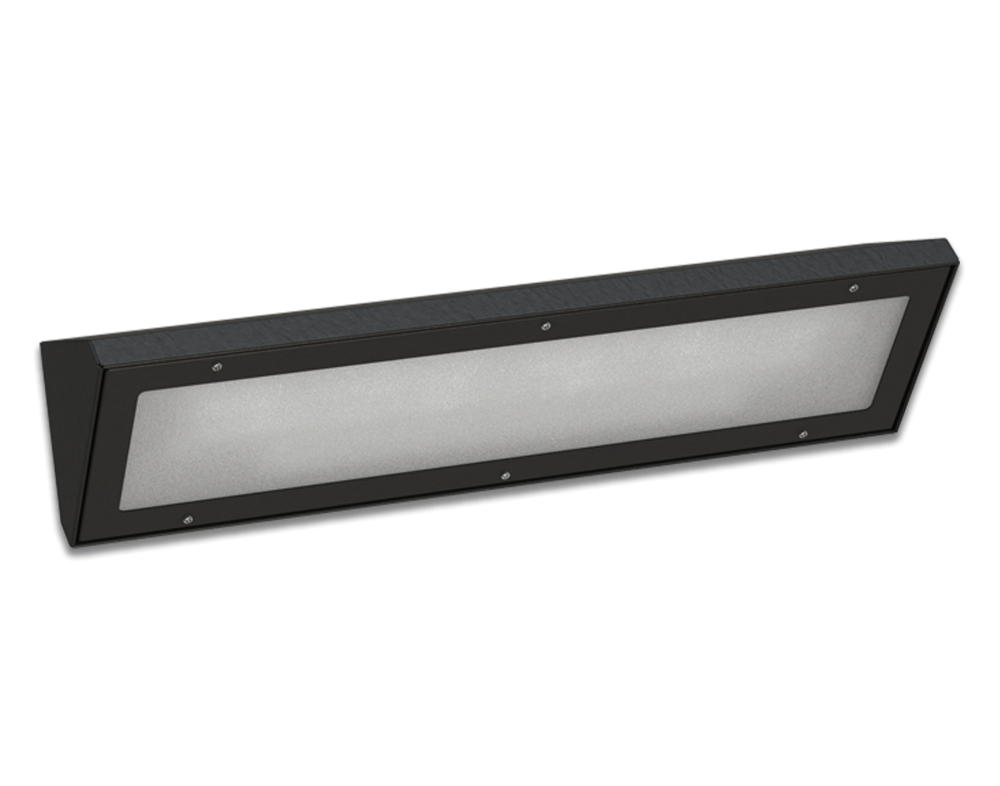

Kova Corner Underpass and Anti Vandal Product image 2000x1572px

Downloads

Kova brochure

Format: Adobe Acrobat PDF file, (813 KB)

Kova Corner datasheet

Format: Adobe Acrobat PDF file, (85 KB)

Kova product codes

Format: Adobe Acrobat PDF file, (25 KB)

Extreme performance in tough situations

The Kova family of highly efficient anti-vandal luminaires are fabricated in stainless steel and thick polycarbonate to provide an IK rating of 10+ Available with a range of extras to offer further energy savings and increased vandal resistance, the Kova family offers extreme performance for tough applications.

  • Supplied in three sizes: 600, 1200 and 1500mm
  • Certified IK10+ and tested against impact to 150J for extreme performance

  Request a quote

Options in this range

Name Lumen Range (lumens) Power Range Dimensions (mm) Weight (kg)
KOV C 60 1 2103 18.8 Length: 600 10
KOV C 60 2 2933 27.2 Length: 600 10
KOV C 60 3 4281 36.6 Length: 600 10
KOV C 60 4 4836 42.1 Length: 600 10
KOV C 12 1 4173 36.6 Length: 1200 16
KOV C 12 2 4715 42.1 Length: 1200 16
KOV C 12 3 5755 53.5 Length: 1200 16
KOV C 12 4 8721 72.1 Length: 1200 16
KOV C 15 1 5259 45.4 Length: 1500 20
KOV C 15 2 6142 55.9 Length: 1500 20

Features




Kova Corner linear system

Kova Corner is available with a range of additional components to create highly robust, intelligent and seamless vandal resistant lighting installations.

Infill sections are available which allow the Kova Corner luminaires to be spaced to achieve optimum lighting levels whilst providing a secure enclosure for cabling routing in between.

A range of enclosures also allows for the addition of movement sensors, speakers and even CCTV cameras into the system for true integration.

ResImages(5821, 0, 'desktop').Title

Standard colour

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP65
IK rating:
IK10+
Certifications:
CE
Applications:
Rail

Lighting

Light source:
Linear mid power LED
Lumen Range (lumens):
2103-8721
Distribution:
Asymmetric
Colour Temperature (CCT):
4000K
Colour rendering (CRI):
80Ra
Max efficacy (luminaire lumens):
125lm/W
L90 Lifetime Estimate:
>50,000hrs

Power and control

Dimming:
1-10V, DALI
Controls:
1-10V
DALI
Emergency battery backup
Driver:
Tridonic

Mechanical and installation

Materials:
Body: Fabricated stainless steel
Glazing: Polycarbonate
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-30°C to +45°C
Mounting:
Surface Mount
Wall Mount

Downloads and dimensions

Kova brochure

Format: Adobe Acrobat PDF file, (813 KB)

Kova Corner datasheet

Format: Adobe Acrobat PDF file, (85 KB)

Kova product codes

Format: Adobe Acrobat PDF file, (25 KB)

Kova Corner instructions

Format: Adobe Acrobat PDF file, (400 KB)

Kova photometry

Format: ZIP compressed file, (118 KB)

Kova Corner 600 product dimension drawing W573px
Dimensions (mm):
  • A 760
  • B 170
  • C 170
Weight (kg):
10
Kova Corner 1200 product dimension drawing W573px
Dimensions (mm):
  • A 1370
  • B 170
  • C 170
Weight (kg):
16
Kova Corner 1500 product dimension drawing W573px
Dimensions (mm):
  • A 1670
  • B 170
  • C 170
Weight (kg):
20
