Kirium Pro Midi

Change view:

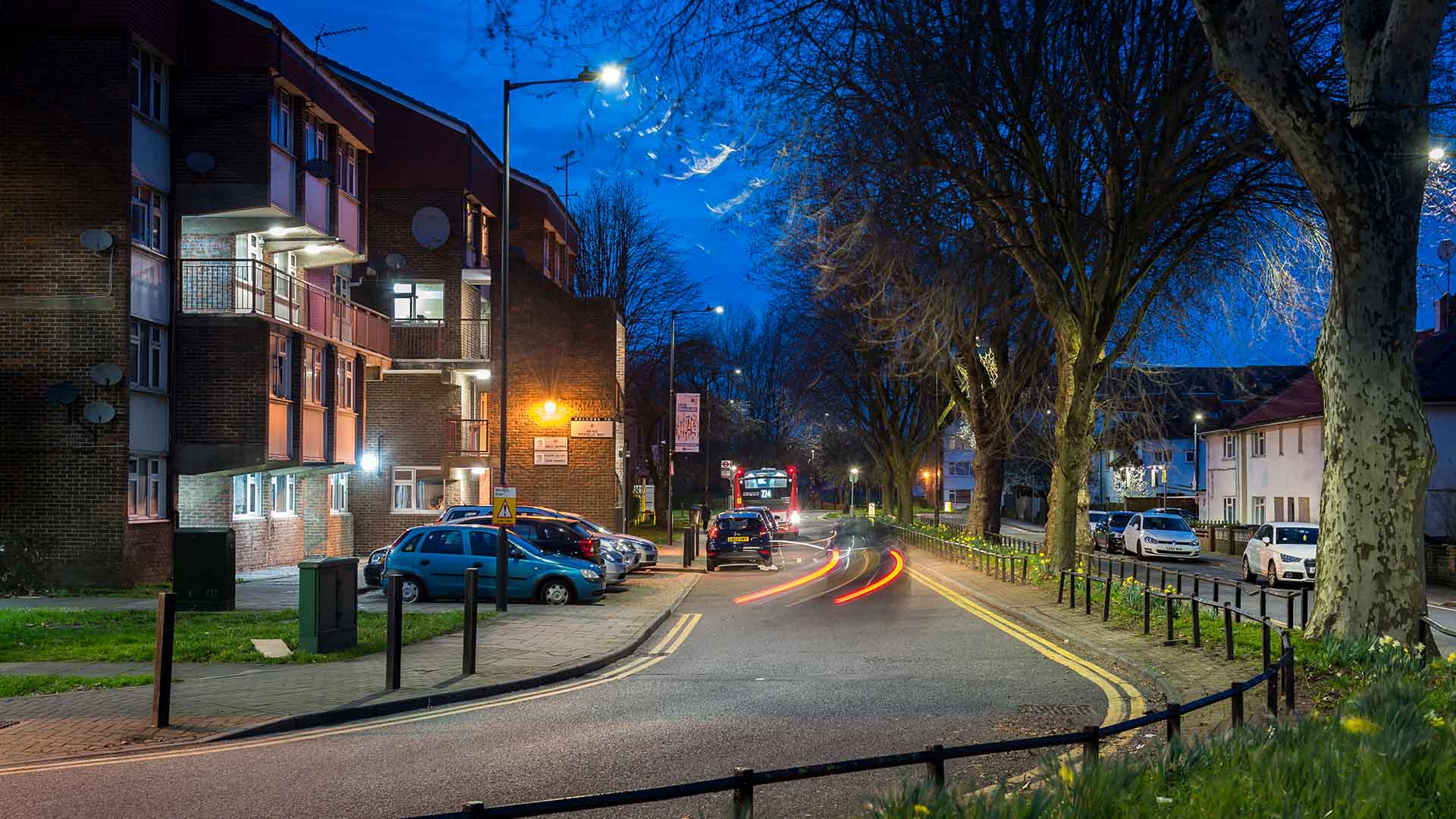

Kirium Pro Midi Street Lighting Location image 1920x1080px

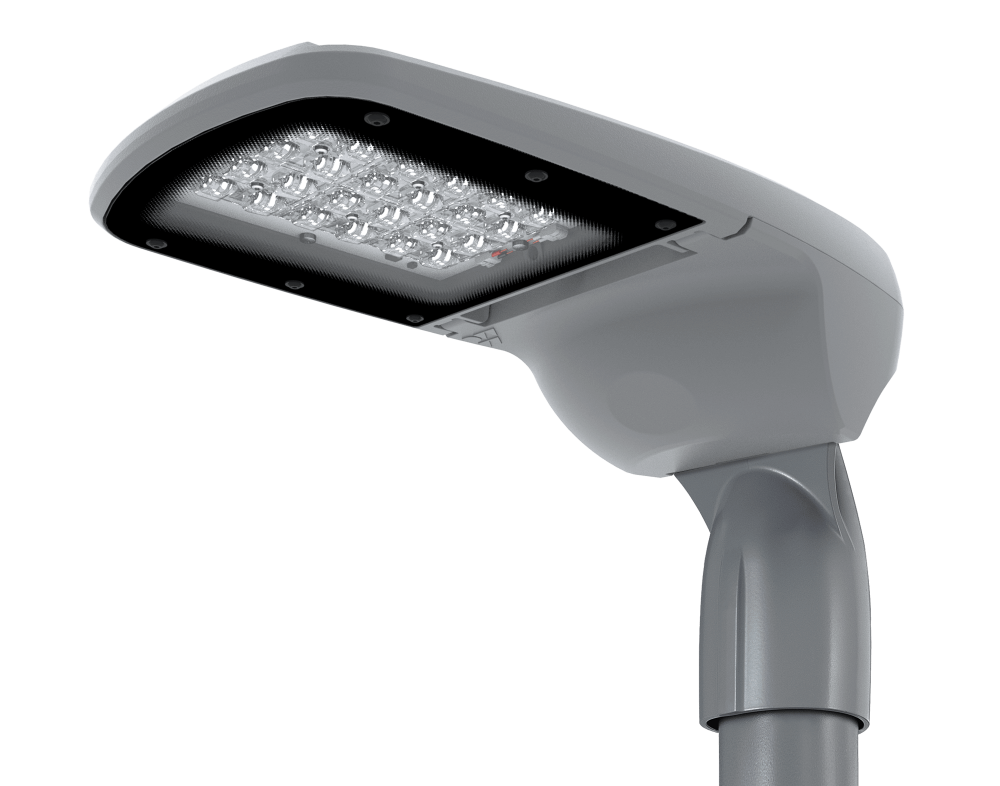

Kirium Pro Midi Functional street lighting Product image 2000x1572px

Downloads

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (23 MB)

Kirium Pro Product Performance Matrix

Format: Adobe Acrobat PDF file, (167 KB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (1.9 MB)

Overview

Kirium Pro Midi is suitable for footpaths, cycle-ways, pedestrian crossings and residential roads.

  • Recommended for mounting at 4-8 metres
  • Available in 24 LEDs
  • Outputs up to 10,600lm and luminaire efficacy up to 186lm/W

  Request a quote

Options in this range

Name Lumen Range (lumens) Power Range LED qty Colour Temperature (CCT)
24 LED 2535-10641 14-70 24 2700K, 3000K, 4000K

Check out our brochure

Contact us to find out more

You may want to consider

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
UKCA, CE, ENEC
Mounting Height (m):
4-8
Applications:
High street & road lighting
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
2535-10641
LED qty:
24
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
Up to 186lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
200mA-1050mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Presence detector
NEMA socket
Zhaga Book 18 socket
CMS
Sensor ready
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Tilt / inclination:
-15° to +15° (5° increments)
Materials:
Bodies: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass / Polycarbonate for IK10
Finish:
Polyester powder coat
Product colours:
RAL 7046 Mid grey
RAL 7035 Light grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Side Entry: Ø34mm - Ø42mm / Ø60mm
Direct Post: Ø60mm / Ø60mm - Ø76mm

Downloads and dimensions

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (23 MB)

Kirium Pro Product Performance Matrix

Format: Adobe Acrobat PDF file, (167 KB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (1.9 MB)

Kirium Pro product codes

Format: Adobe Acrobat PDF file, (50 KB)

Kirium Pro Midi product datasheet

Format: Adobe Acrobat PDF file, (109 KB)

Kirium Pro Midi photometry GEN2

Format: ZIP compressed file, (4.2 MB)

Kirium Pro Midi installation guide

Format: Adobe Acrobat PDF file, (2.6 MB)

Kirium Pro Midi BIM files

Format: ZIP compressed file, (5.7 MB)

Kirium Pro Midi product dimension drawing W573px
Dimensions (mm):
  • A 451
  • B 119
  • C 227
Weight (kg):
5
Windage (m2):
0.034 (CxS = 0.026)

Kirium Pro range
