Kirium Pro 3

Change view:

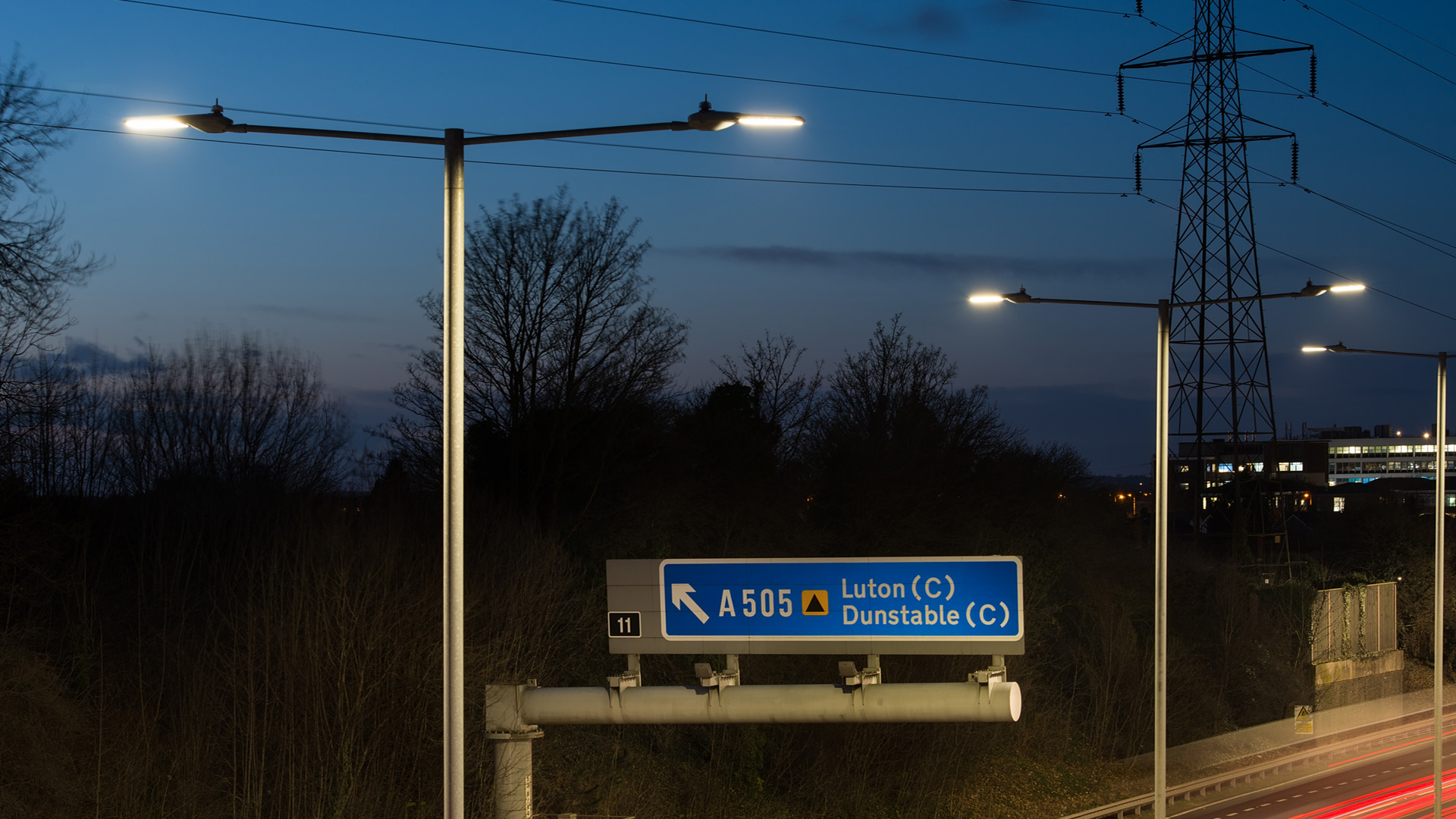

Kirium Pro 3 Street Lighting Location image 1920x1080px Alt2

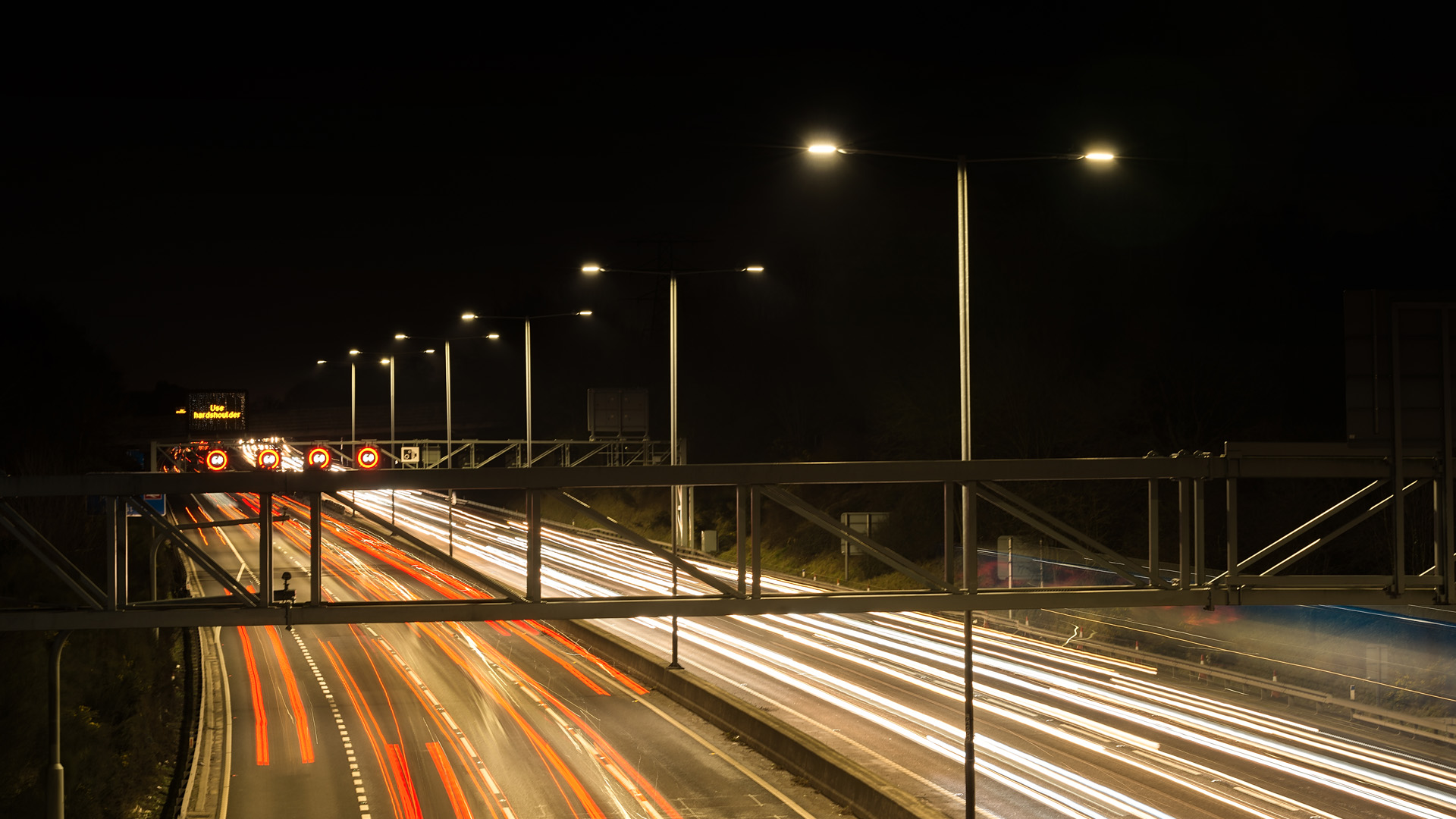

Kirium Pro 3 Street Lighting Location image 1920x1080px Alt3

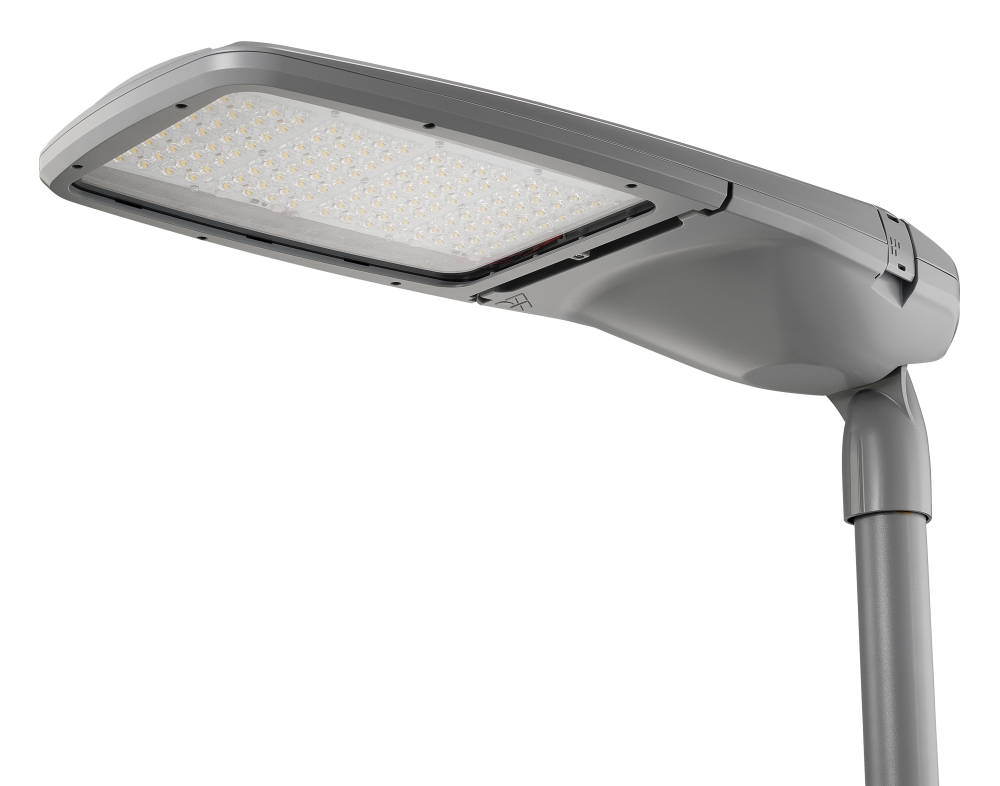

Kirium Pro 3 Street Lighting Product image 2000x1572px

Downloads

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (3.4 MB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (4.3 MB)

Kirium Pro 3 photometry

Format: ZIP compressed file, (15 MB)

More views

Kirium Pro 3 Street Lighting Product image 2000x1572px

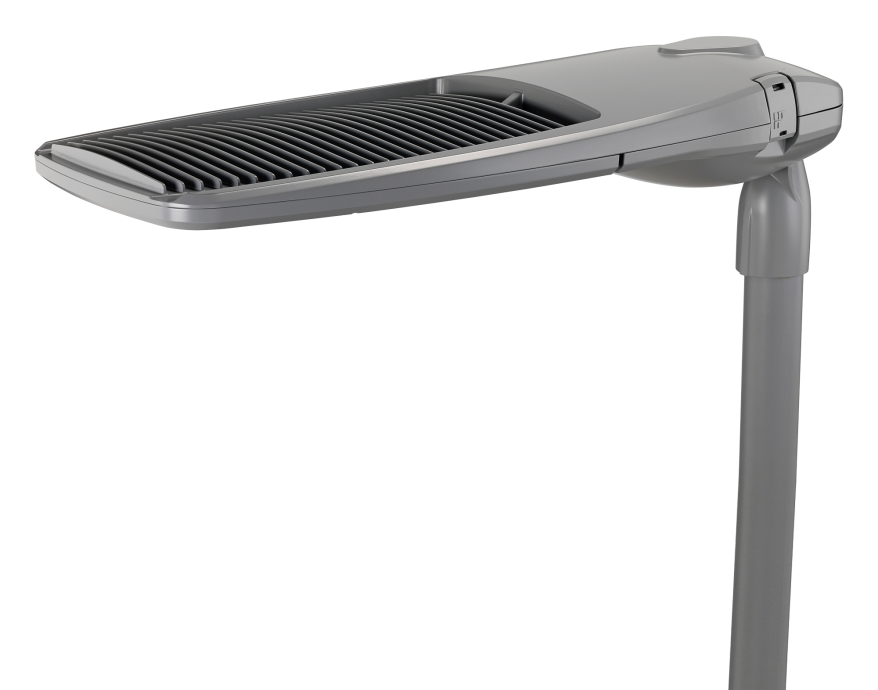

Kirium Pro 3 Side Street Lighting Product image 2000x1572px

Overview

Suitable for major road systems, wide area lighting and large junctions.

  • Recommended for mounting at 8-15 metres
  • Available in 64, 80, 96 or 128 LEDs
  • From 5200-37000lm

Request a quote

Product Selector

Lumen Range (lumens)4762-46109

LED qty64-128

Options in this range

Name Lumen Range (lumens) Power Range Colour Temperature (CCT)
64 LED 4762-24315 35-168 2700K, 3000K, 3500K, 4000K
80 LED 5770-29547 45-216 2700K, 3000K, 3500K, 4000K
96 LED 6759-39804 53-255 2700K, 3000K, 3500K, 4000K
128 LED 9168-46109 70-335 2700K, 3000K, 3500K, 4000K

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE, ENEC
Mounting Height (m):
8-15
Applications:
High street & road lighting

Lighting

Light source:
High power LED
Lumen Range (lumens):
4762-46109
LED qty:
64-128
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
3500K
4000K
Colour rendering (CRI):
70Ra (4000K / 3500K / 3000K)
80Ra (3000K / 2700K)
Max efficacy (luminaire lumens):
Up to 174lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
200mA-1000mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
NEMA
Zhaga
Integral CMS
Sensor ready
Surge protection:
10kV
Driver:
Philips Xi

Mechanical and installation

Tilt / inclination:
-15° to +15° (5° increments)
Materials:
Bodies: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass / Polycarbonate for IK10
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7046 Mid grey
RAL 7035 Light grey
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Side Entry: Ø34mm - Ø42mm / Ø60mm
Direct Post: Ø60mm / Ø60mm - Ø76mm

Downloads and resources

Downloads

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (3.4 MB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (4.3 MB)

Kirium Pro 3 photometry

Format: ZIP compressed file, (15 MB)

Kirium Pro product codes

Format: Adobe Acrobat PDF file, (41 KB)

Kirium Pro installation instructions

Format: Adobe Acrobat PDF file, (4.8 MB)

Dimensions

Kirium Pro 3 product dimension drawing W573px
Dimensions (mm):
  • A 1010
  • B 167
  • C 415
Weight (kg):
17.1
Windage (m2):
0.0867
