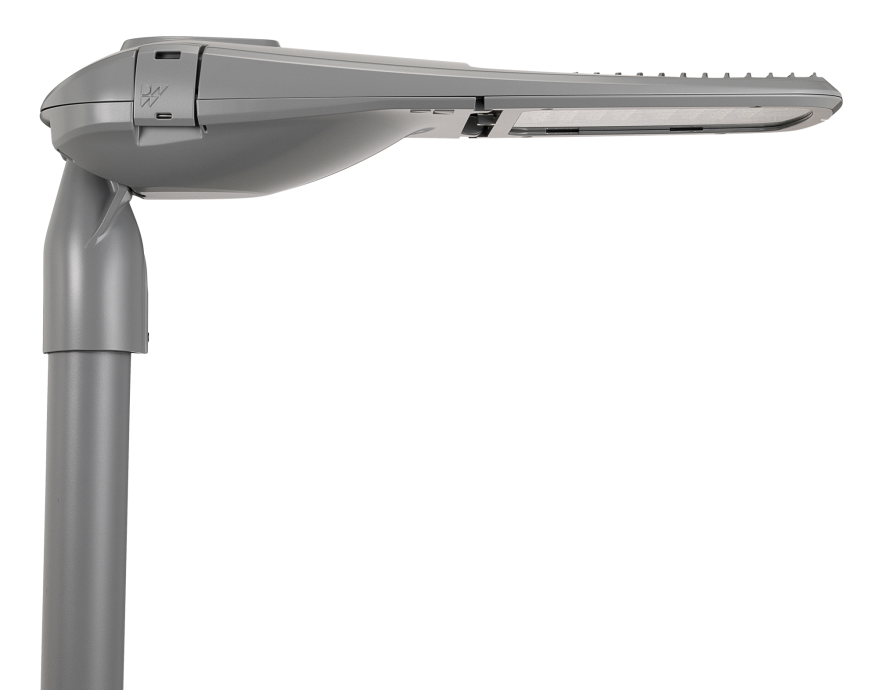

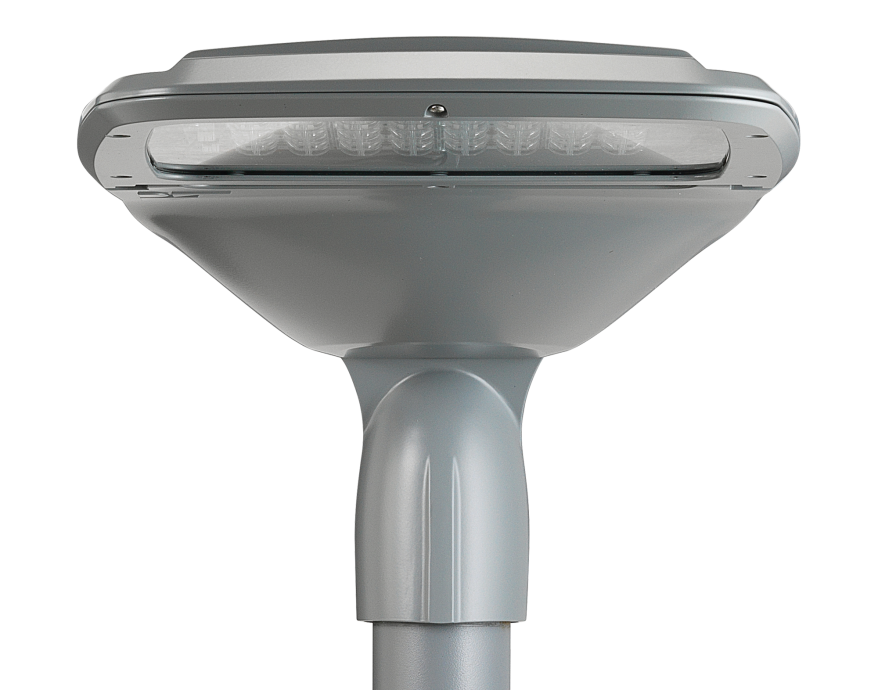

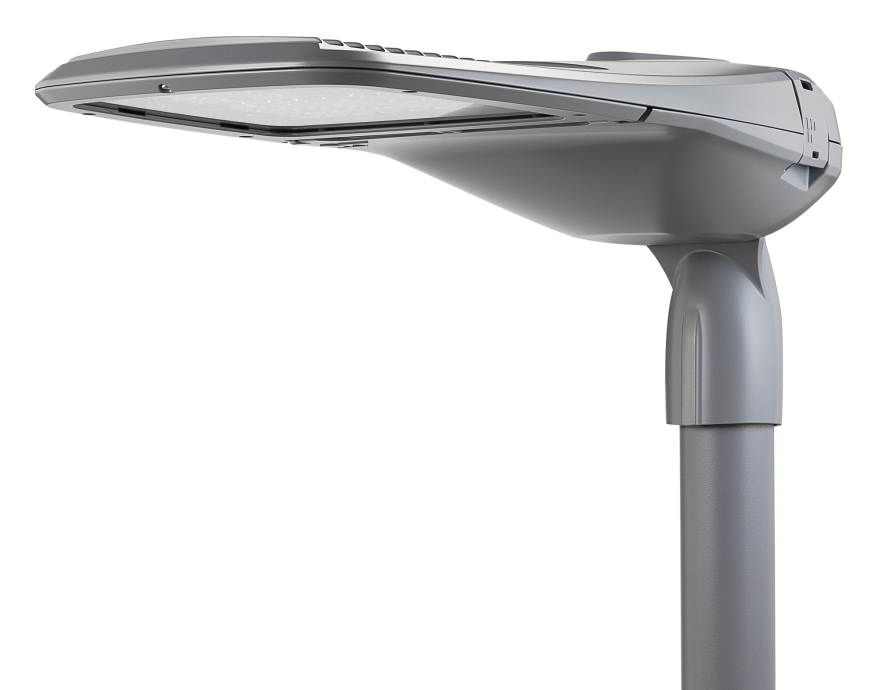

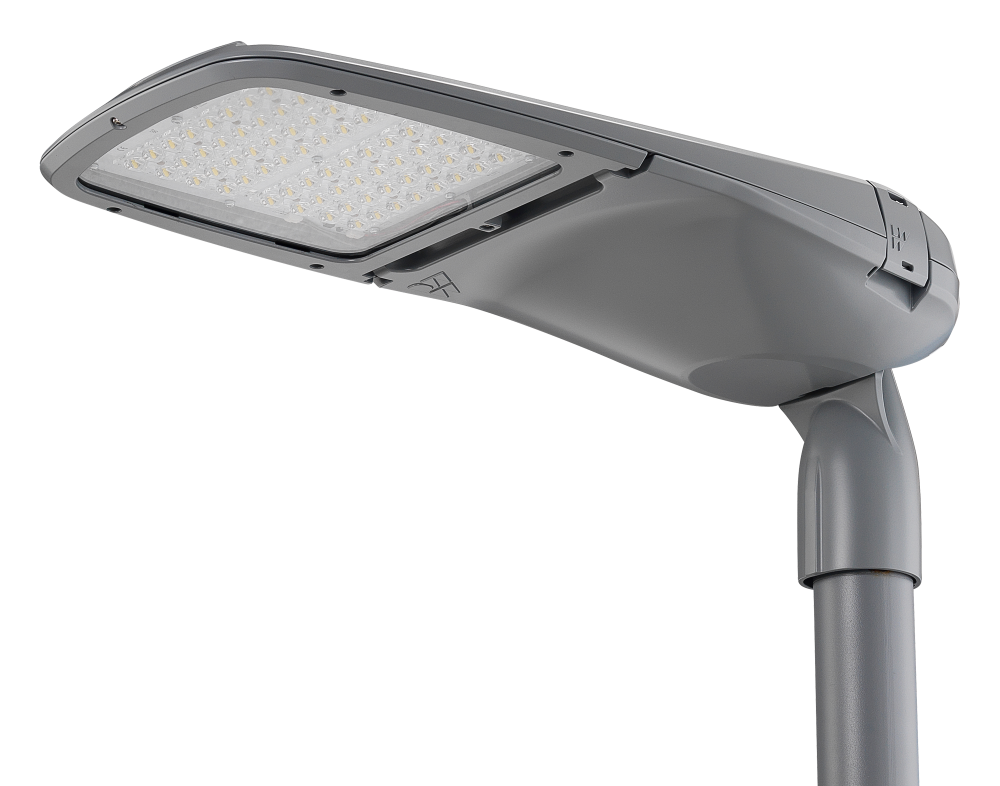

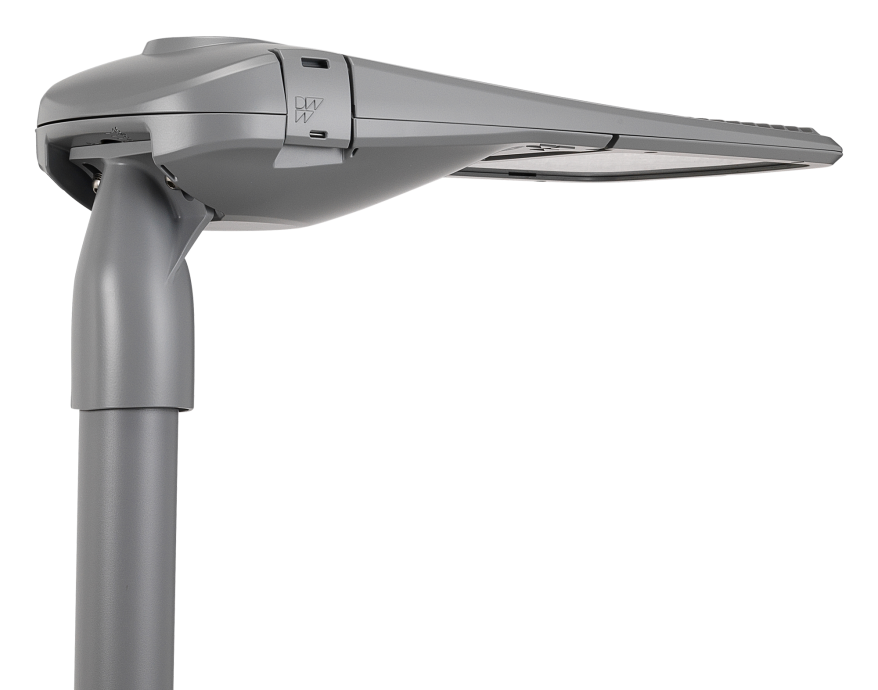

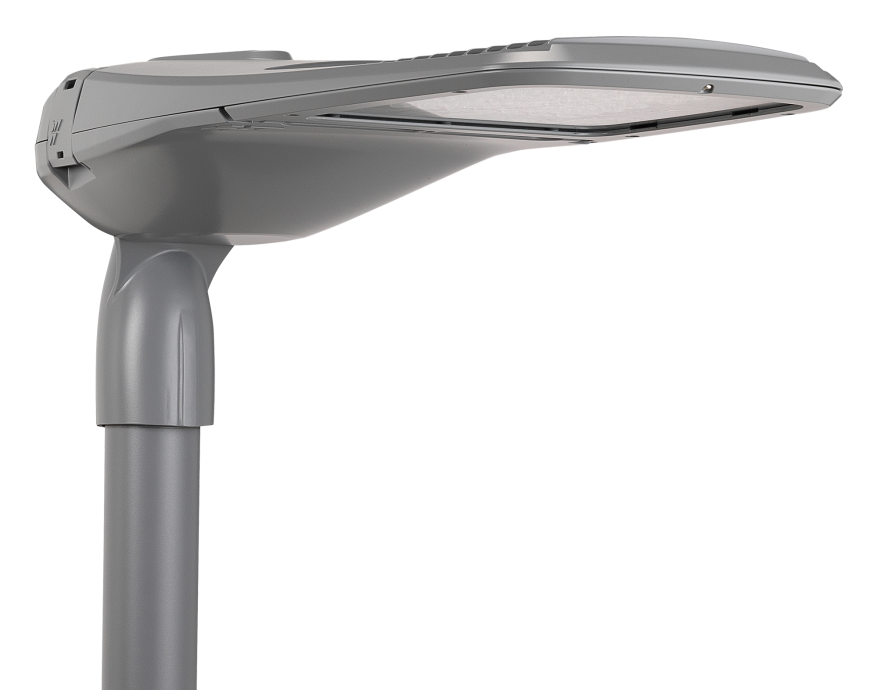

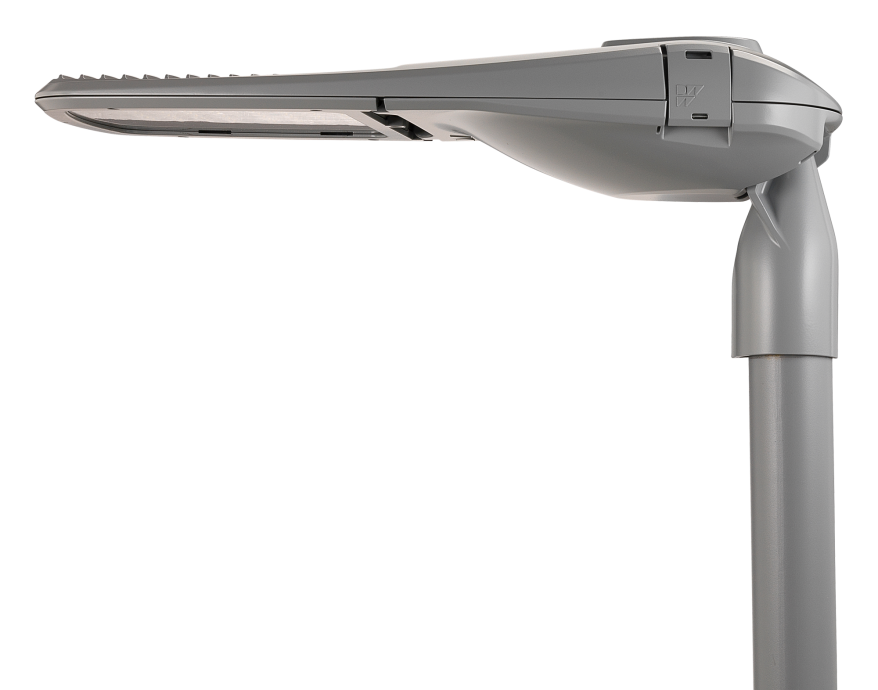

More views
Options in this range
| Name | Lumen Range (lumens) | Power Range | Colour Temperature (CCT) | |
|---|---|---|---|---|
| 32 LED | 2372-12284 | 19-89 | 2700K, 3000K, 3500K, 4000K | |
| 64 LED | 4762-24315 | 35-168 | 2700K, 3000K, 3500K, 4000K | |
| 48 LED | 3686-18715 | 27-131 | 2700K, 3000K, 3500K, 4000K |
Detailed Specification
Product specification
Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE, ENEC
Mounting Height (m):
6-10

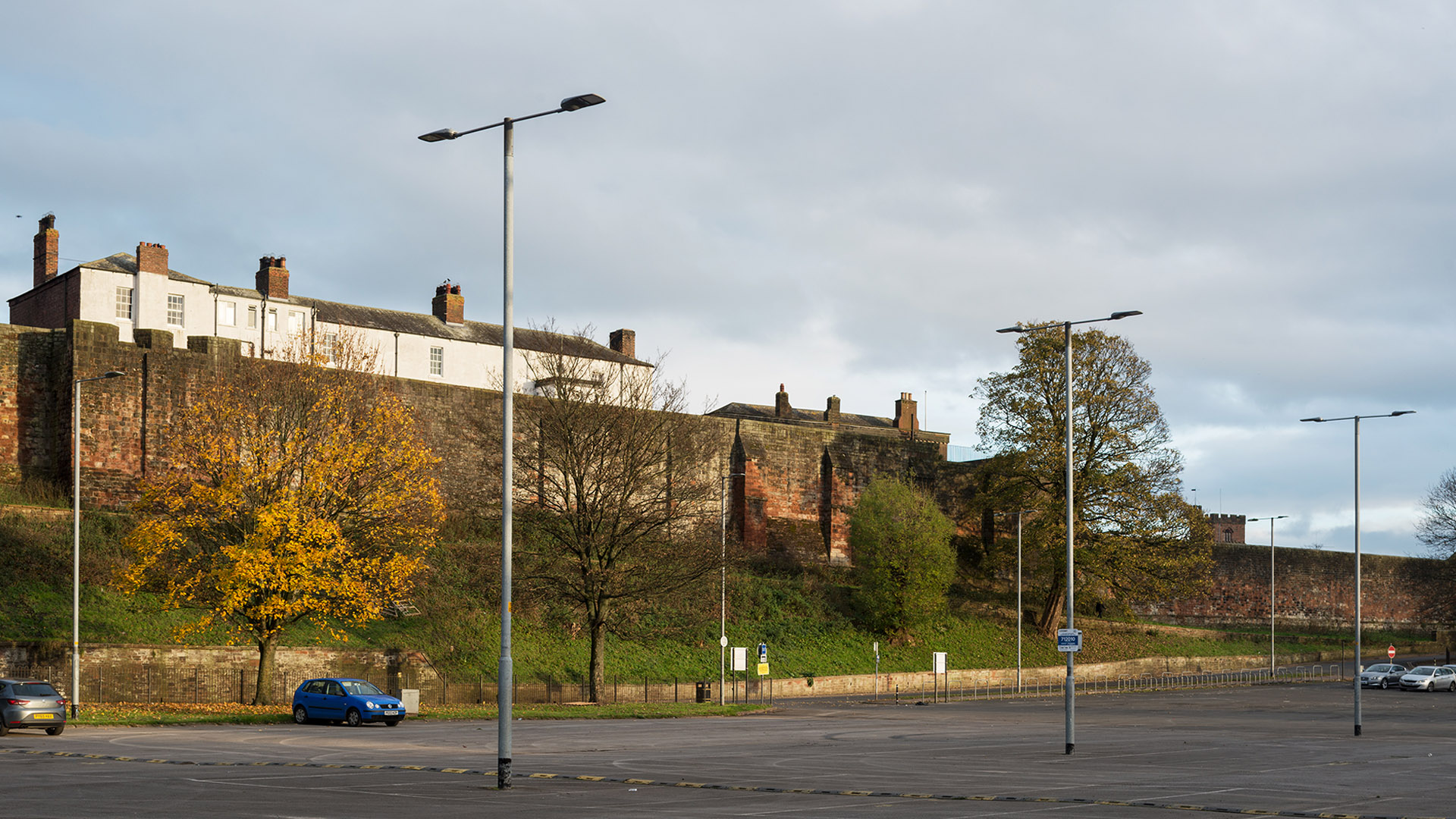

Applications:

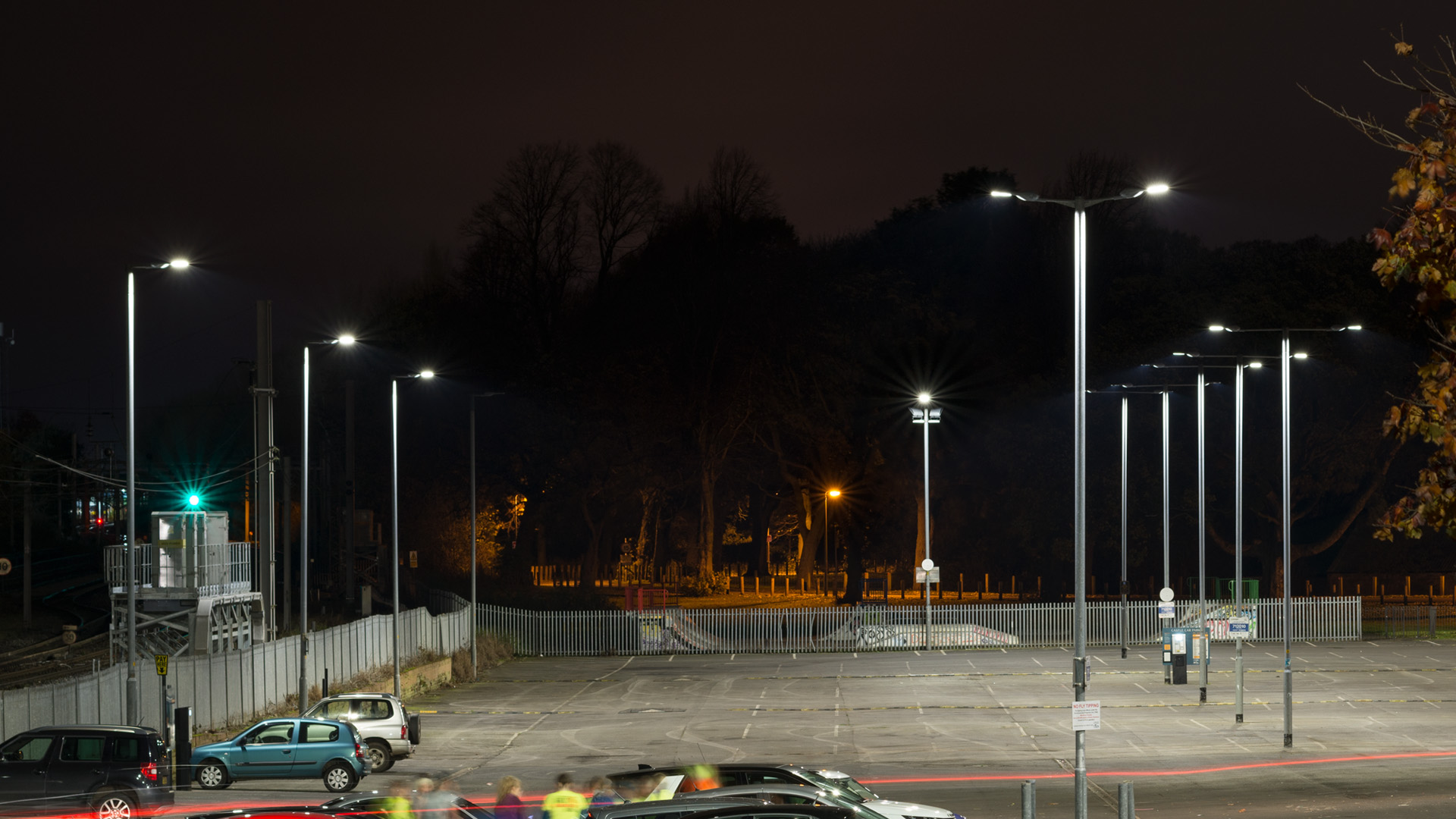

Car parks
High street & road lighting
Rail
High street & road lighting
Rail
Lighting
Light source:
High power LED
Lumen Range (lumens):
2372-24315
LED qty:
32-64
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
3500K
4000K
3000K
3500K
4000K
Colour rendering (CRI):
70Ra (4000K / 3500K / 3000K)
80Ra (3000K / 2700K)
80Ra (3000K / 2700K)
Max efficacy (luminaire lumens):
Up to 174lm/W
L90 Lifetime Estimate:
>100,000hrs
Power and control
Drive Current Range:
200mA-1000mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
NEMA
Zhaga
Integral CMS
Sensor ready
Part-night switching
Pre-programmed dimming
NEMA
Zhaga
Integral CMS
Sensor ready
Surge protection:
10kV
Driver:
Philips Xi
Mechanical and installation
Tilt / inclination:
-15° to +15° (5° increments)
Materials:
Bodies: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass / Polycarbonate for IK10
Seals: Silicone
Glazing: Toughened glass / Polycarbonate for IK10
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7046 Mid grey
RAL 7035 Light grey
Other RAL colours on request
RAL 7046 Mid grey
RAL 7035 Light grey
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C

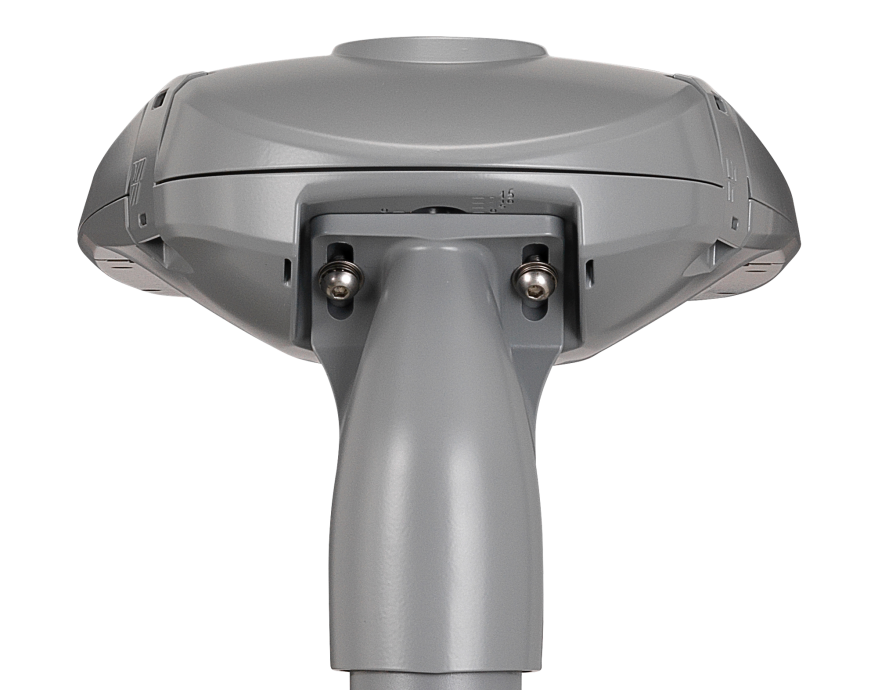

Mounting:
Side Entry: Ø34mm - Ø42mm / Ø60mm
Direct Post: Ø60mm / Ø60mm - Ø76mm
Direct Post: Ø60mm / Ø60mm - Ø76mm
Downloads and dimensions
Kirium Pro brochure
Format: Adobe Acrobat PDF file, (3.4 MB)
Kirium Pro design guide
Format: Adobe Acrobat PDF file, (4.3 MB)
Please enter email address to download design guide
Kirium Pro 2 photometry
Format: ZIP compressed file, (10 MB)
Kirium Pro product codes
Format: Adobe Acrobat PDF file, (41 KB)
Kirium Pro 1 2 3 installation instructions issue 7
Format: Adobe Acrobat PDF file, (4.8 MB)
Dimensions (mm):
- A 720
- B 140
- C 350
Weight (kg):
9.8
9.8
Windage (m2):
0.059 (CxS = 0.034)
0.059 (CxS = 0.034)
