Kirium Pro 1

Change view:

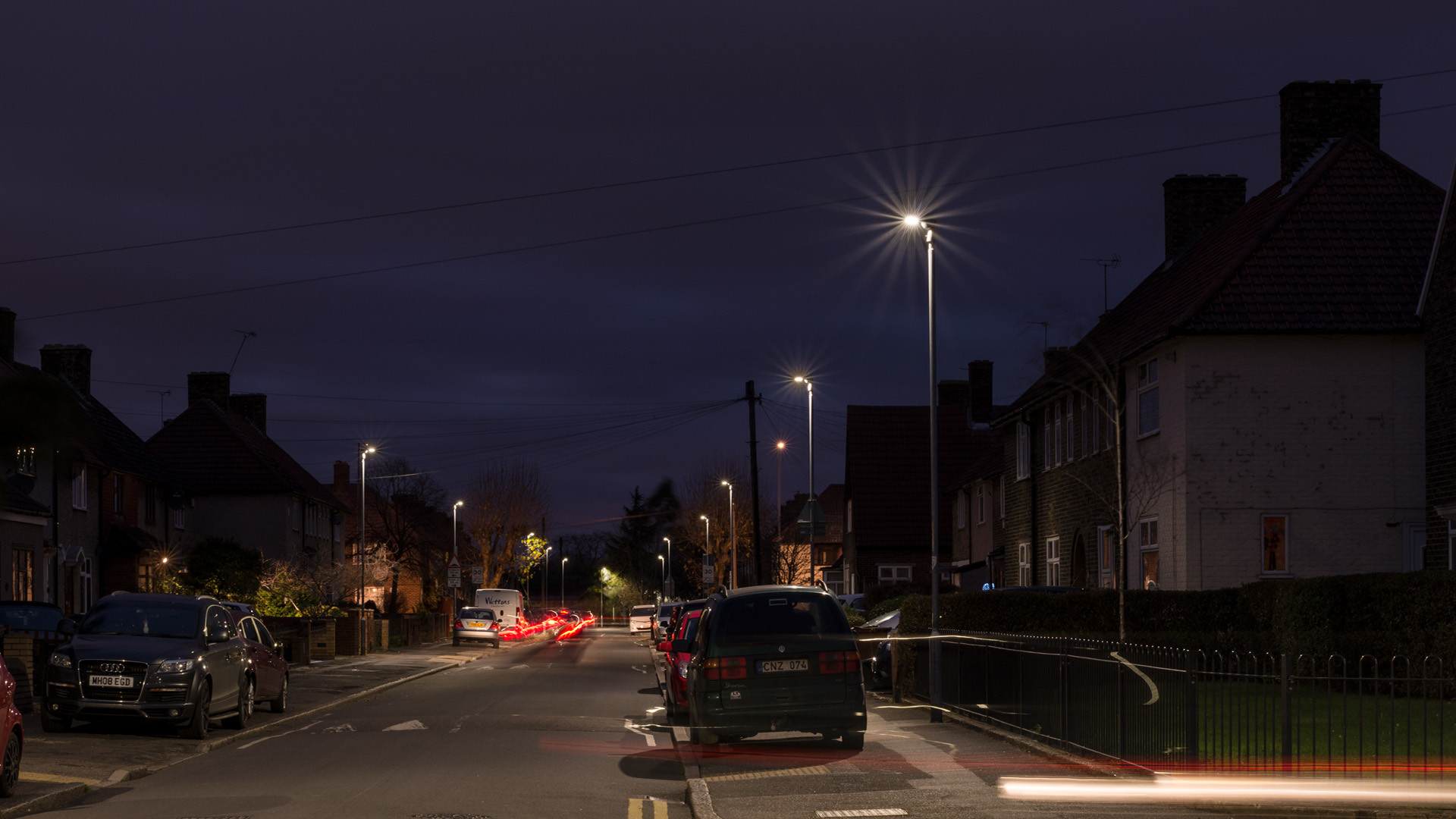

Kirium Pro 1 Street Lighting Location image 1920x1080px Alt2

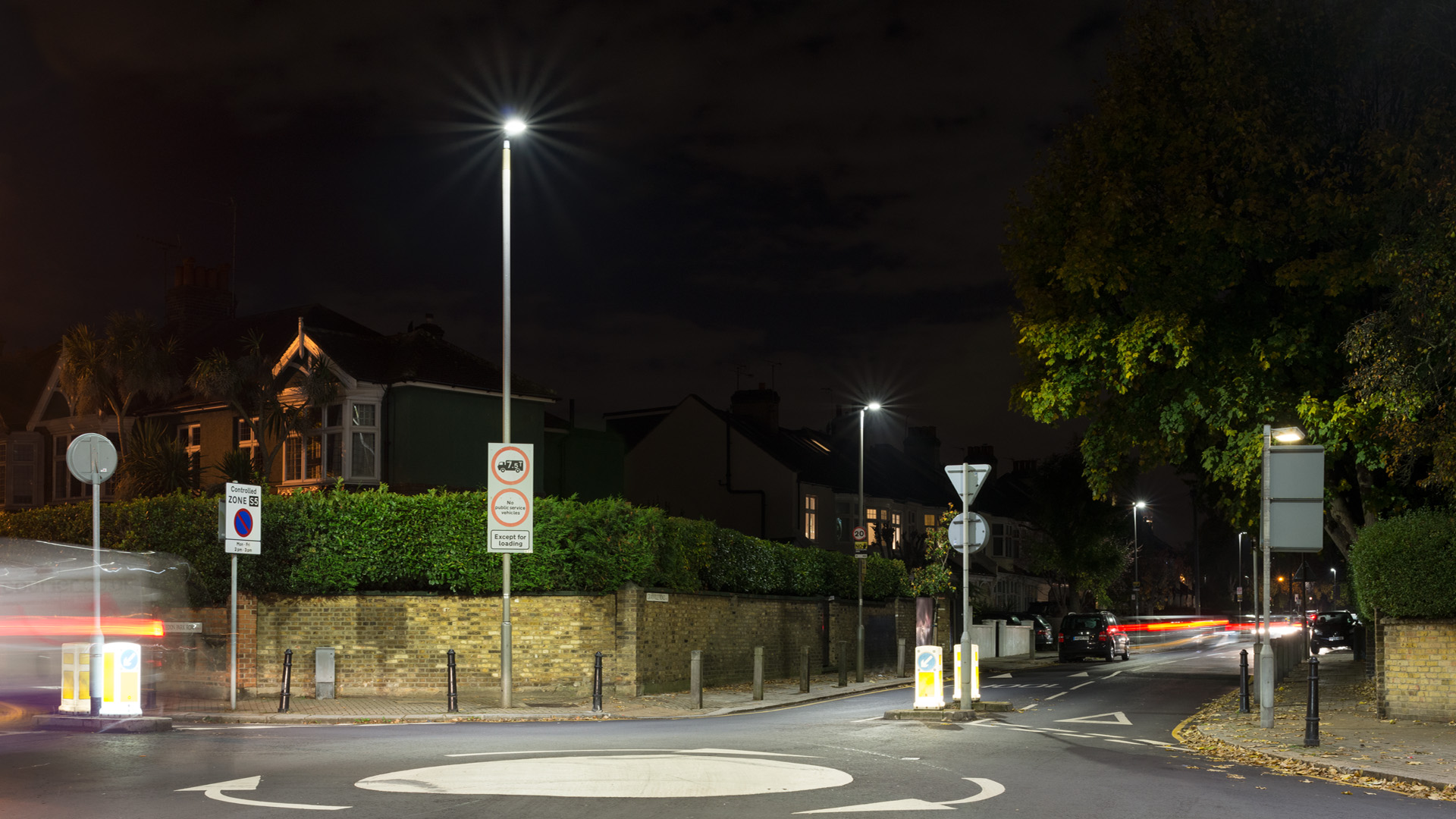

Kirium Pro 1 Street Lighting Location image 1920x1080px Alt3

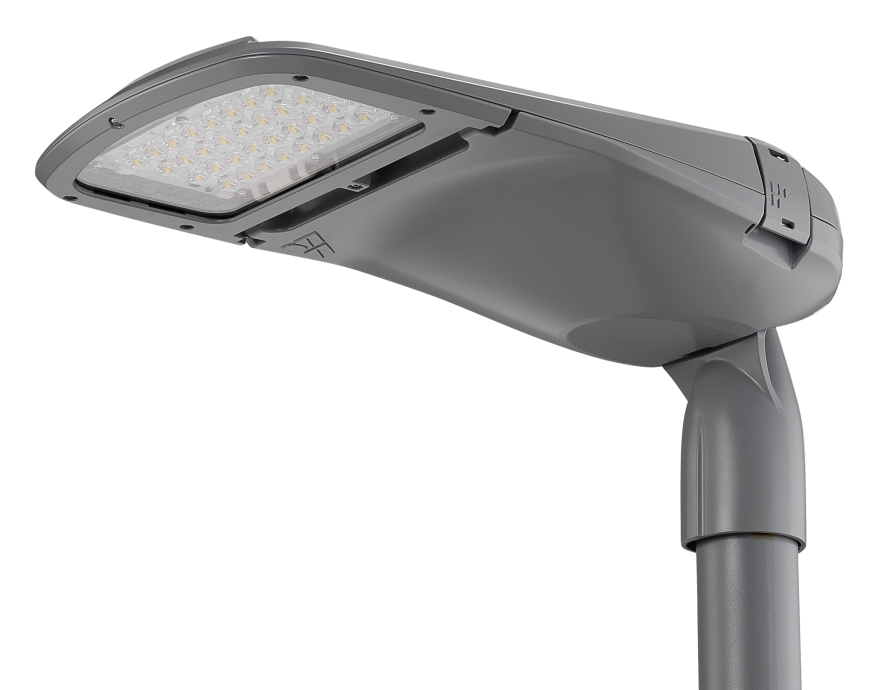

Kirium Pro 1 Street Lighting Product image 2000x1572px

Downloads

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (3.3 MB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (1.9 MB)

Kirium Pro 1 product datasheet

Format: Adobe Acrobat PDF file, (126 KB)

More views

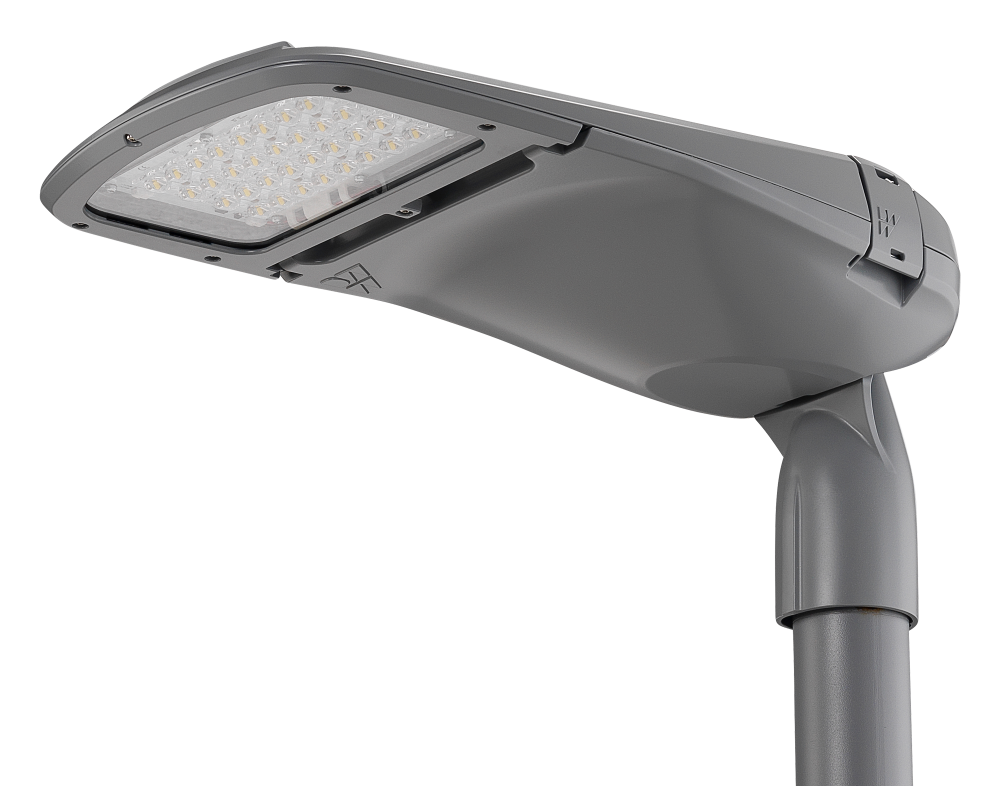

Kirium Pro 1 Street Lighting Product image 2000x1572px

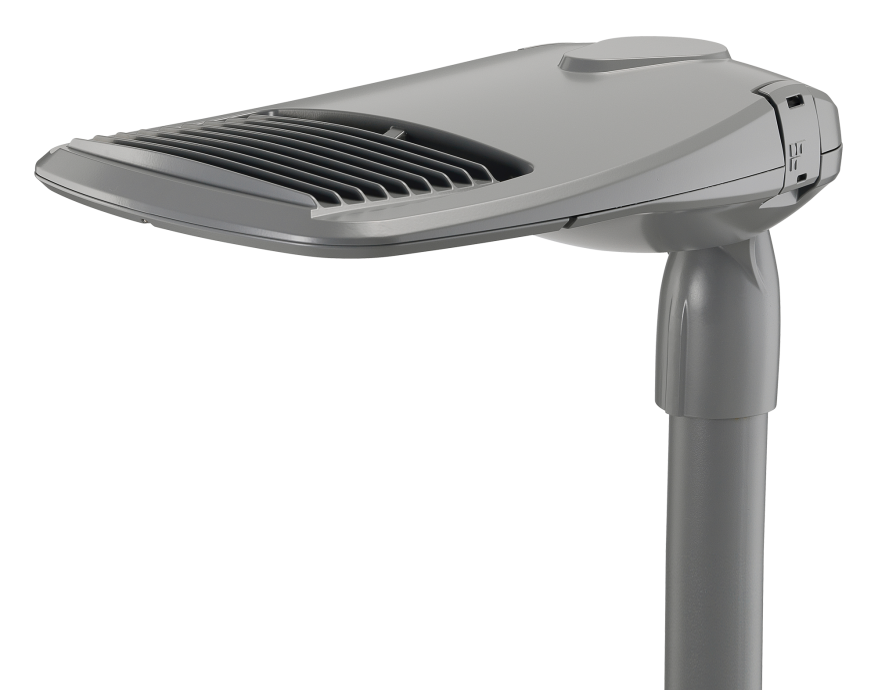

Kirium Pro 1 Side Street Lighting Product image 2000x1572px Alt1

Overview

Kirium Pro 1 is suitable for footpaths, cycle-ways, pedestrian crossings and residential roads.

  • Recommended for mounting at 5-8 metres
  • Available in 8, 16, 24, or 32 LEDs
  • Outputs up to 13,800lm and luminaire efficacy up to 187lm/W

Request a quote

Options in this range

Name Lumen Range (lumens) Power Range Colour Temperature (CCT)
24 LED 2535-10641 14-70 2700K, 3000K, 4000K
32 LED 3297-13839 19-93 2700K, 3000K, 4000K
8 LED 915-3841 6-27 2700K, 3000K, 4000K
16 LED 1791-7518 10-49 2700K, 3000K, 4000K

You may want to consider

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
UKCA, CE, ENEC
Mounting Height (m):
5-8
Applications:
High street & road lighting
Car parks
Rail

Lighting

Light source:
High power LED
Lumen Range (lumens):
915-13839
LED qty:
8-32
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
Up to 187lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
200mA-1050mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Presence detector
NEMA socket
Zhaga Book 18 socket
CMS
Sensor ready
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Tilt / inclination:
-15° to +15° (5° increments)
Materials:
Bodies: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass / Polycarbonate for IK10
Finish:
Polyester powder coat
Product colours:
RAL 7046 Mid grey
RAL 7035 Light grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Side Entry: Ø34mm - Ø42mm / Ø60mm
Direct Post: Ø60mm / Ø60mm - Ø76mm

Downloads and dimensions

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (3.3 MB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (1.9 MB)

Kirium Pro 1 product datasheet

Format: Adobe Acrobat PDF file, (126 KB)

Kirium Pro product codes

Format: Adobe Acrobat PDF file, (50 KB)

Kirium Pro 1 photometry

Format: ZIP compressed file, (3.9 MB)

Kirium Pro 1 BIM files

Format: ZIP compressed file, (1.8 MB)

Kirium Pro 1 product dimension drawing W573px
Dimensions (mm):
  • A 610
  • B 140
  • C 350
Weight (kg):
8.5
Windage (m2):
0.054 (CxS = 0.029)

Kirium Pro range
