Kirium Pro S2

Change view:

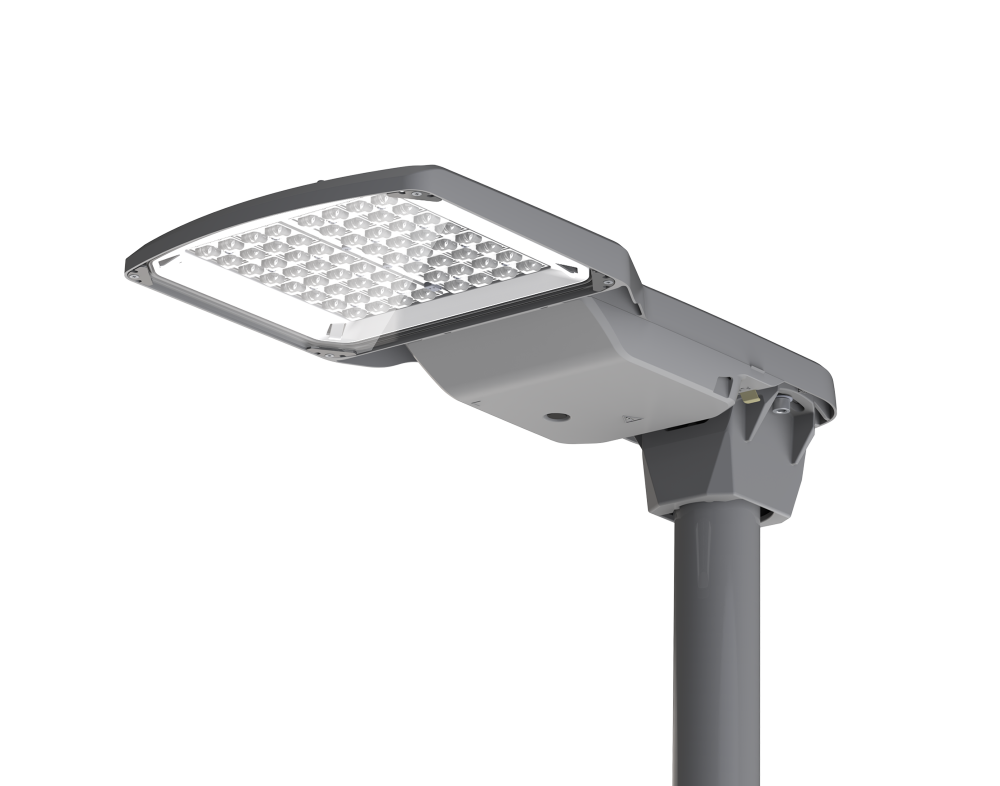

kirium pro s2 product slider product image lighting 2000x1572px4

Downloads

Kirium Pro S brochure

Format: Adobe Acrobat PDF file, (9.2 MB)

Kirium Pro S2 product datasheet

Format: Adobe Acrobat PDF file, (116 KB)

Kirium Pro S installation guide

Format: Adobe Acrobat PDF file, (3.1 MB)

More views

kirium pro s2 product slider product image lighting 2000x1572px4

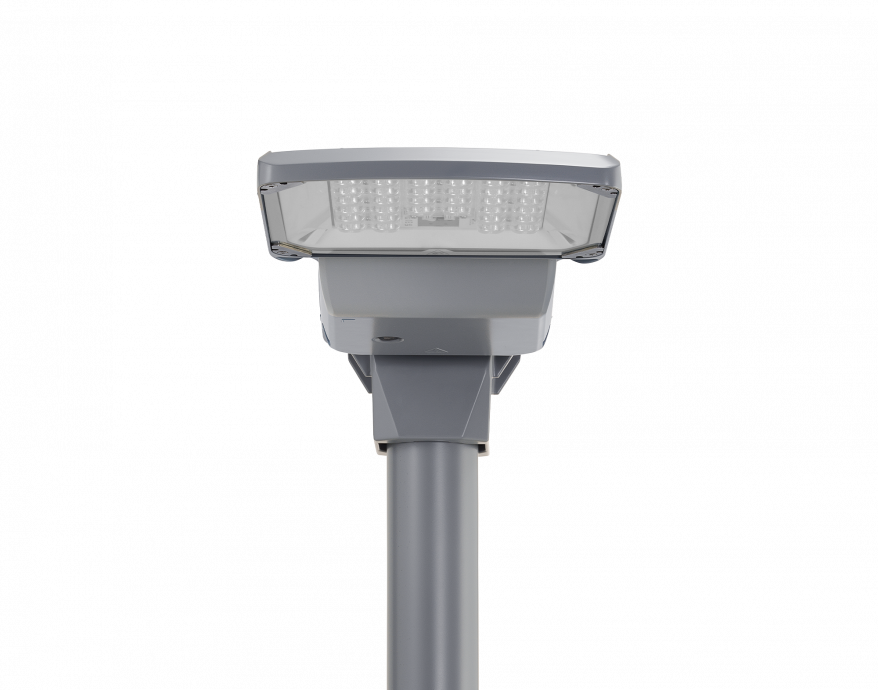

kirium pro s front product slider product image lighting 2000x1572px6

Designed to perform, built to last.

Kirium Pro S2 is a high-quality lighting solution optimised for road lighting applications, offering exceptional performance, easy maintenance, and a low total cost of ownership.

  • Highly efficient solution delivering significant energy savings as well as reducing operational costs
  • Multiple LED configurations from 32 to 64 and flexible drive currents for tailored performance
  • A wide range of Diamond+ light distributions optimised for roads, car parks, pedestrian crossings and motorway applications
  • Futureproofed design using standardised components with Zhaga and NEMA connectivity

Request a quote

Product Selector

Mounting Height (m)8-10

Lumen Range (lumens)3300-27937

Weight (kg)6.8-7.2

Check out our latest brochure

Contact us to find out more

Universal Entry

Universal Entry is a game changer. Having on-site switching from side entry to post-top entry without disconnecting the flex as Kirium Pro S can be supplied pre-wired. With quick and easy tilting functionality, Kirium Pro S offers delicate on-site adjustments and flexibility to the luminaire.

Dedicated mounting options can help lower capital costs, offering maximum installation flexibility for schemes where the mounting method is known.

Features & Benefits

dww icons efficient mb8

Minimal energy use

Optimised for low energy usage over its 100,000-hour lifetime with control options to ensure a low total cost of ownership.

dww icons weather proof mb6

Built to Last

With an IP66 rating and anti-condensation valve constructed from high-quality materials to prevent moisture build-up.

dww icons lightweight mb3

A lightweight solution

Kirium Pro S reduces its overall weight and carbon footprint by using the minimal amount of raw materials possible.

dww icons circularity mb5

Circular by design

Constructed using durable materials for increased longevity, reduce waste and maximise service life.

dww icons service mb5

Easy to maintain

Easy to access control gear without the need for tools, ensuring maintenance can be safely conducted.

dww icons precise mb5

Targeted illumination

With 23 precision optics, Kirium Pro S produce widely different distributions to ensure light is placed where needed.

Find out more

profiles kirium pro s content banner desktop image 2340x800px

Flexible lighting for a changing world

Designed to offer comfort and safety without overlighting, Kirium Pro S2 is a highly efficient lighting solution offering tailored performance thanks to a wide range of precision optics and drive current settings. In addition, multiple LED quantities are available, ranging from 48 - 64 LEDs, which feature a uniform design, providing a consistent appearance across schemes.

Secure by Design

With quick-release spring clips to easily access internal components, auto disconnect power supply options and a hinged electronic cover with mechanical tether and optional tamper-proof screws, Kirium Pro S has been designed with safety and hassle-free installation in mind.

Contact us to find out more

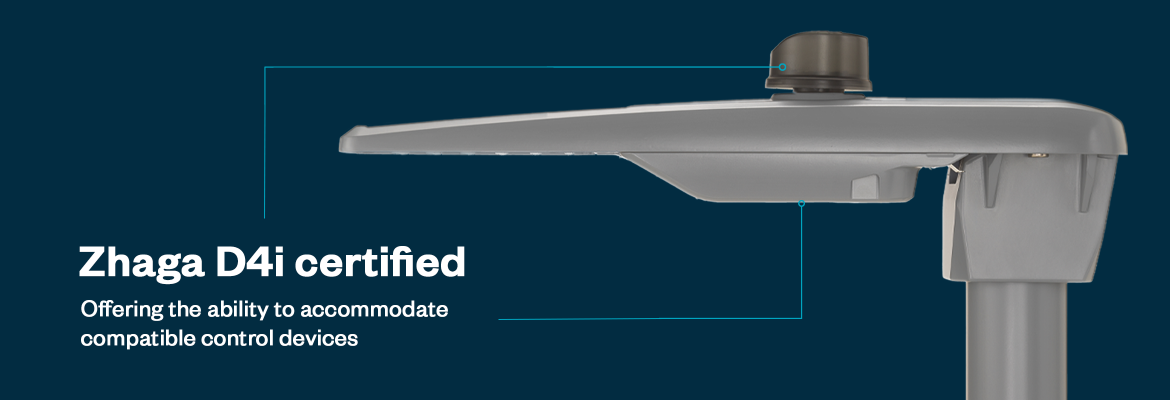

zhaga compatible content+image main image lighting 1992x880px5
diamond plus content banner desktop image 2340x800px16







     Find out more

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK08
Certifications:
UKCA, CE, ENEC, ZD4i
Mounting Height (m):
8-10
Applications:
High street & road lighting
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
3300-27937
LED qty:
32-64
Distribution:
Diamond+ Optics® (A/B/C/D/Z)
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
Up to 192lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
200mA-1050mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Presence detector
NEMA socket
Zhaga Book 18 socket
CMS
Sensor ready
Surge protection:
up to 10kV
Driver:
Fully programmable (with constant light output enabled)

Mechanical and installation

Tilt / inclination:
Post top: -10° to +15° (2.5° increments)
Side entry: -15° to +10° (2.5° increments)
Materials:
Body: die-cast aluminium / die-cast aluminium with UV-stabilised polycarbonate lower cover
Seals: Silicone
Glazing: Toughened flat glass
Finish:
Smooth polyester powder coat
Product colours:
RAL 7046 Mid grey
RAL 7035 Light grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-20°C to +40°C (please contact us for lifetime information at higher ambient temperatures)
Mounting:
Universal Entry (post top: Ø60-76mm
side entry: Ø34-60mm)
Dedicated Post Top Entry (Ø60-76mm)
Dedicated Side Entry (Ø34-60mm)

Downloads and dimensions

Kirium Pro S brochure

Format: Adobe Acrobat PDF file, (9.2 MB)

Kirium Pro S2 product datasheet

Format: Adobe Acrobat PDF file, (116 KB)

Kirium Pro S installation guide

Format: Adobe Acrobat PDF file, (3.1 MB)

Kirium Pro S product codes

Format: Adobe Acrobat PDF file, (47 KB)

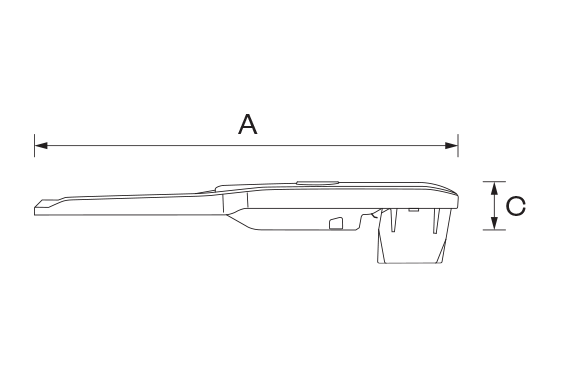

kirium pro midi side product variant dimensions drawing lighting W573px3
Dimensions (mm):
  • A 704
  • C 80
Weight (kg):
7.2
Windage (m2):
0.036

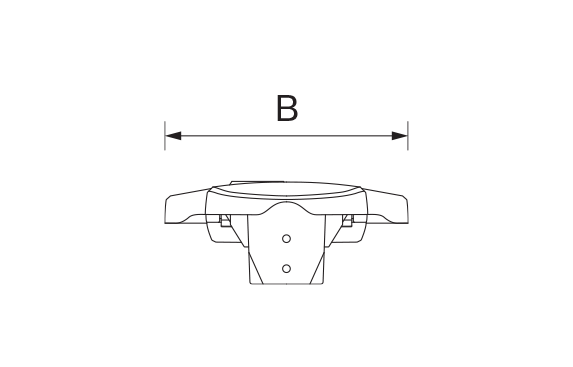

kirium pro midi back product variant dimensions drawing lighting W573px3
Dimensions (mm):
  • B 320
Weight (kg):
7.2
Windage (m2):
0.036

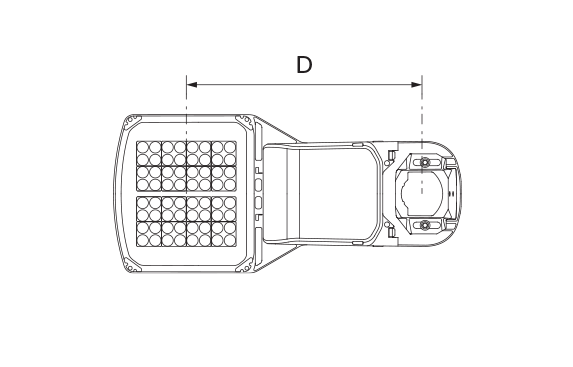

kirium pro midi underneath product variant dimensions drawing lighting W573px3
Dimensions (mm):
  • D 478
Weight (kg):
7.2
Windage (m2):
0.036
