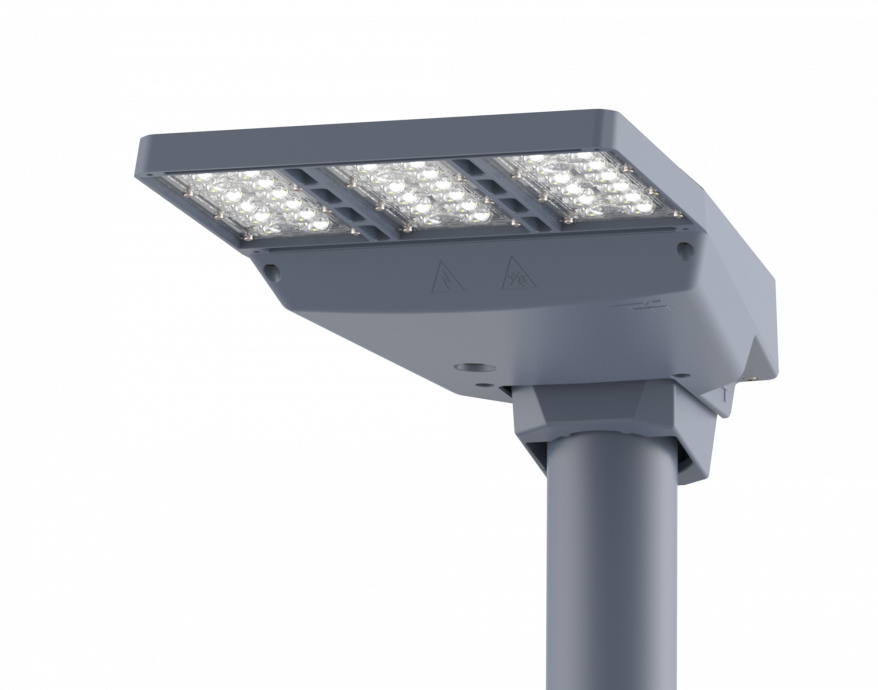

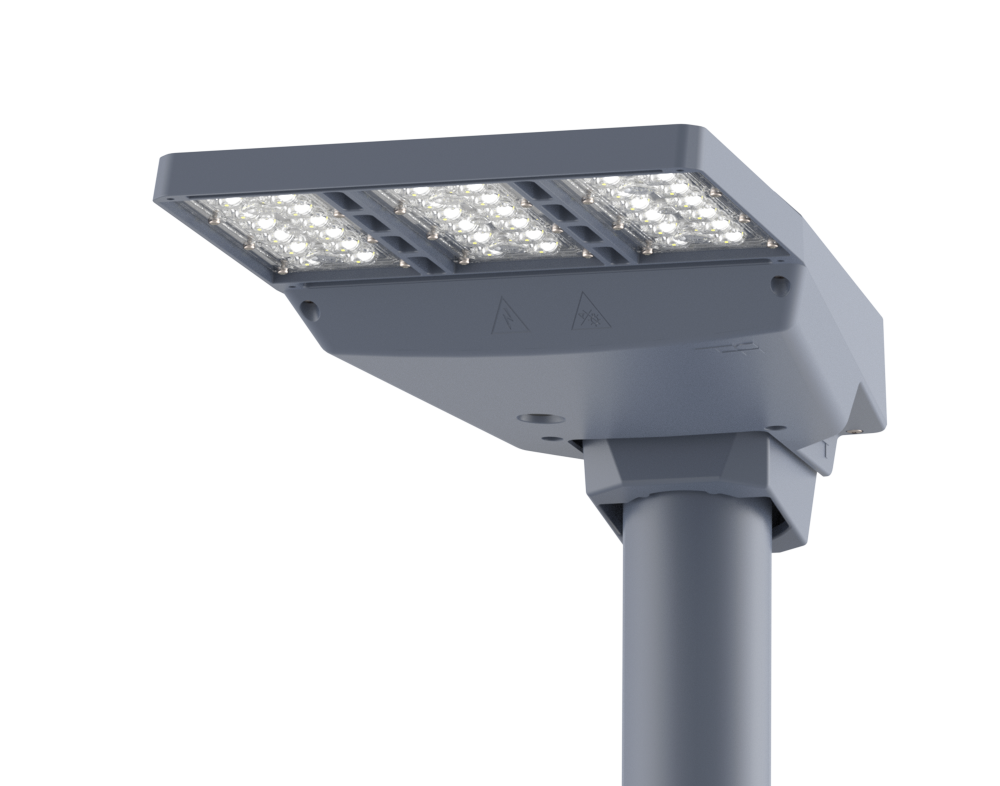

Our most competitive range of street lighting yet
Kirium Eco is our most competitive range of LED luminaires to date.
- Low total cost of ownership
- Universal mounting block allows on-site switching from side entry to post top
- Optically enhanced for residential lighting
- Smart-City ready
Request a quote
Request a quote
Check out our brochure
Contact us to find out more
Get in touch
Detailed Specification
Product specification
Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK08
Certifications:
UKCA, CE, ENEC
Mounting Height (m):
8-10
Applications:
High street & road lighting
Car parks
Area lighting
Buildings
Paths & walkways
Car parks
Area lighting
Buildings
Paths & walkways
Lighting
Light source:
High power LED
Lumen Range (lumens):
4000-17000
Power Range:
27-118
LED qty:
36
Distribution:
Narrow Road (Type 1 / Type 2)
Medium Road (Type 1 / Type 2)
Wide Road (Type 1 / Type 2)
Traffic Routes
Area (Symmetric / Asymmetric)
Zebra Crossing (Left / Right)
Medium Road (Type 1 / Type 2)
Wide Road (Type 1 / Type 2)
Traffic Routes
Area (Symmetric / Asymmetric)
Zebra Crossing (Left / Right)
Colour Temperature (CCT):
2200K
2700K
3000K
4000K
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
up to 185lm/W
L90 Lifetime Estimate:
>100,000hrs
Power and control
Voltage:
220-240V
Drive Current Range:
250mA - 1050mA (in 50mA increments)
Dimming:
DALI (10-100%)
Controls:
Miniature photocell
NEMA photocell
Part night switching
Pre-programmed dimming
NEMA photocell
Integral CMS
3/5/7 pin NEMA socket
4 pin Zhaga Book 18 socket
NEMA photocell
Part night switching
Pre-programmed dimming
NEMA photocell
Integral CMS
3/5/7 pin NEMA socket
4 pin Zhaga Book 18 socket
Surge protection:
up to 10kV
Driver:
Fully programmable (with constant light output)
Mechanical and installation
Tilt / inclination:
Post top: -5° to +15° (5° increments)
Side entry: -15° to +10° (5° increments)
Side entry: -15° to +10° (5° increments)
Materials:
Body (standard): Full LM6 die-cast aluminium
Body (hybrid): LM6 die-cast aluminium upper and UV-stabilised polypropylene polymer lower
Lenses: PMMA (polycarbonate on request)
Seals: Silicone
Body (hybrid): LM6 die-cast aluminium upper and UV-stabilised polypropylene polymer lower
Lenses: PMMA (polycarbonate on request)
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 7046 Mid Grey
RAL 7035 Light Grey
RAL 9005 Black
Other RAL colours on request
RAL 7035 Light Grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-20°C to +25°C (please contact us for lifetime information at higher ambient temperatures)
Mounting:
Post Top: Ø60-76mm
Side Entry: Ø34-60mm
Side Entry: Ø34-60mm
Downloads and dimensions
Kirium Eco brochure
Format: Adobe Acrobat PDF file, (4.1 MB)
Kirium Eco Product Performance Matrix
Format: Adobe Acrobat PDF file, (128 KB)
Kirium Eco Max product datasheet
Format: Adobe Acrobat PDF file, (131 KB)
Kirium Eco product codes
Format: Adobe Acrobat PDF file, (73 KB)
Kirium Eco Max installation guide (issue 2)
Format: Adobe Acrobat PDF file, (3.6 MB)
Kirium Eco Max photometry
Format: ZIP compressed file, (27 MB)
Kirium Eco Max BIM Files
Format: ZIP compressed file, (3.2 MB)
Dimensions (mm):
- A 588
- B 261
- C 180
- D 139
Weight (kg):
6
6
Windage (m2):
0.041 (CxS = 0.032)
0.041 (CxS = 0.032)
