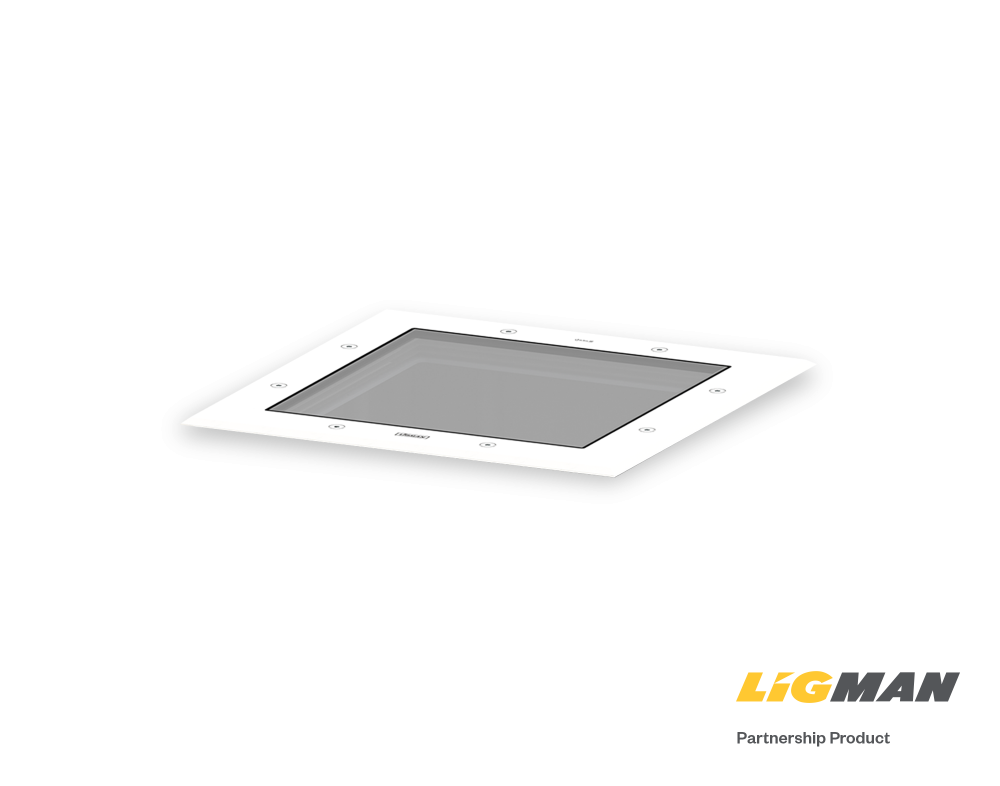

In-ground luminaire
Professional technical in-ground lighting solutions. Sophisticated and expansive; white and RGBW DMX, with 7 beam types.
- Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
- Stainless steel frame
- Single cable entry
- Through wiring on request
- Can be pre-wired with 2m cable on request
- Stainless steel fasteners in grade 316
- High-efficiency PMMA lens
- Durable silicone rubber gasket
- Clear or frosted toughened glass 15mm
- Integral control gear
- Recessing box in high density polyethylene is included
- Suitable for drive-over with a maximum load of 2000 kg
- Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h
- Load is transferred by the housing to the foundation
- The distance between the floodlight and the illuminated surface should be at least 0.5 m
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP67
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Paths & walkways
Paths & walkways
Lighting
Light source:
Surface Mounted Device LED (SMD)
Lumen Range (lumens):
2426-2739
Power Range:
25
LED qty:
16
Distribution:
T2 136° x 48°
T3 136° x 67°
T4 92° x 73°
T3 136° x 67°
T4 92° x 73°
Colour Temperature (CCT):
3000K
4000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 110lm/W
L80 Lifetime Estimate:
>50,000hrs
Power and control
Voltage:
220-240V
Drive Current Range:
500mA
Dimming:
On/Off, 1-10V, DALI
Mechanical and installation
Materials:
Body: Die-cast aluminium
Frame: Stainless steel
Glazing: Glass
Frame: Stainless steel
Glazing: Glass
Finish:
Powder coat
Product colours:
Stainless steel
Mounting:
Ground recessed
Downloads and dimensions
Dimensions (mm):
- A 445
- B 445
- C 360
- D 145
Weight (kg):
11.8
11.8
Dimensions (mm):
- A 445
- B 445
- C 360
- D 145
Weight (kg):
11.8
11.8
