Kios 5

Change view:

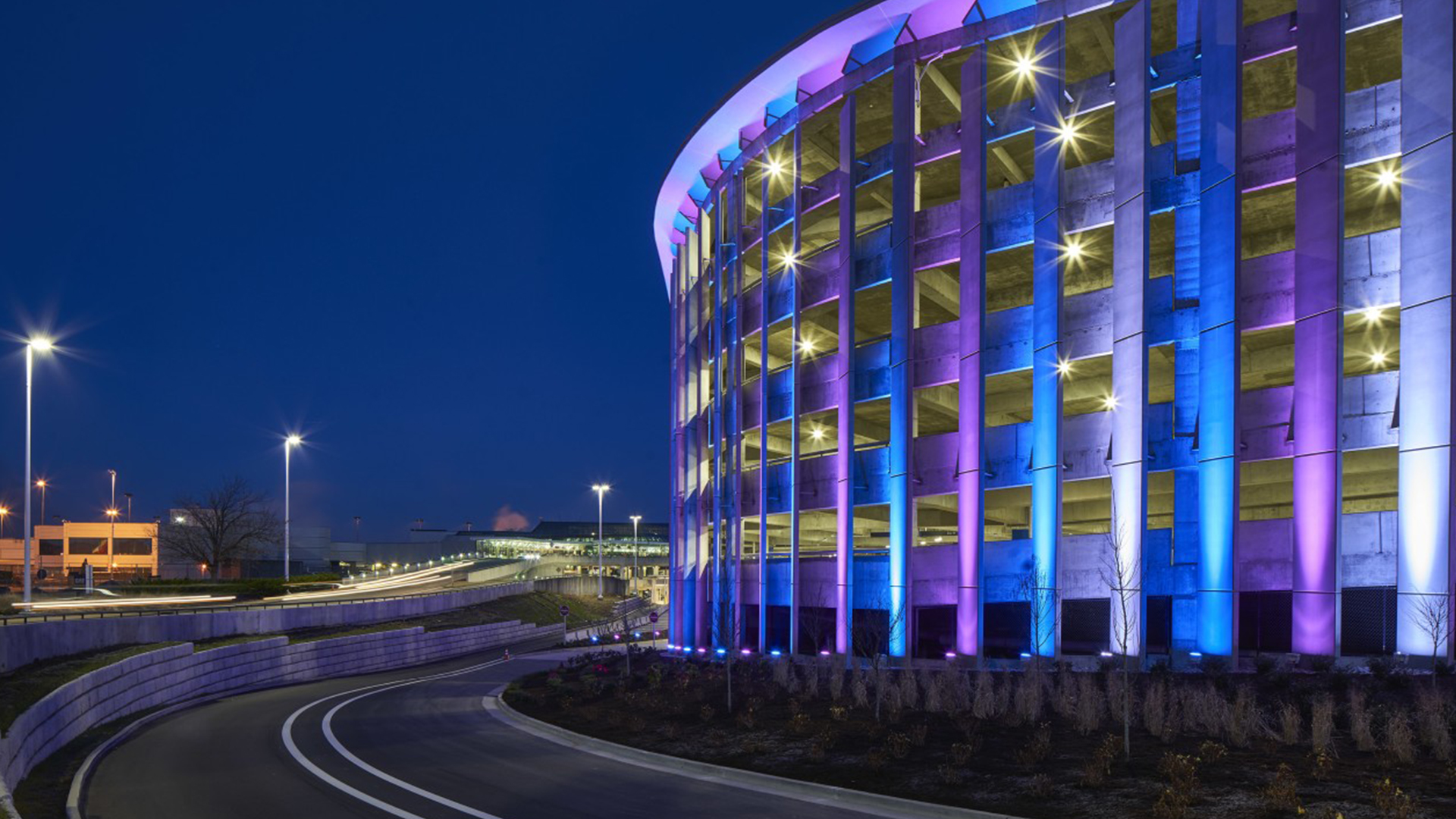

Kios In ground LIGMAN Product Slider Location Image 1920x1080px2

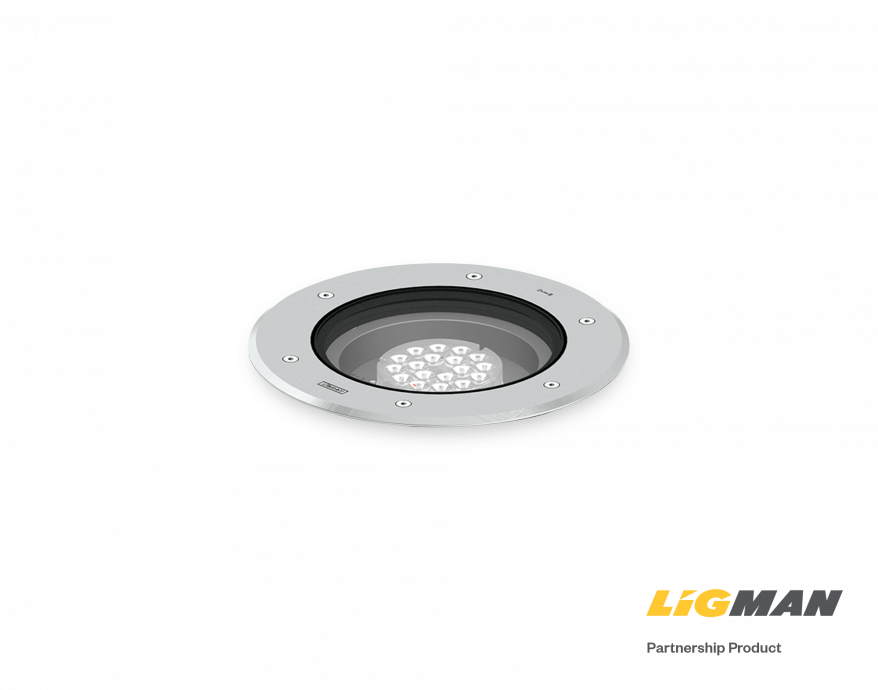

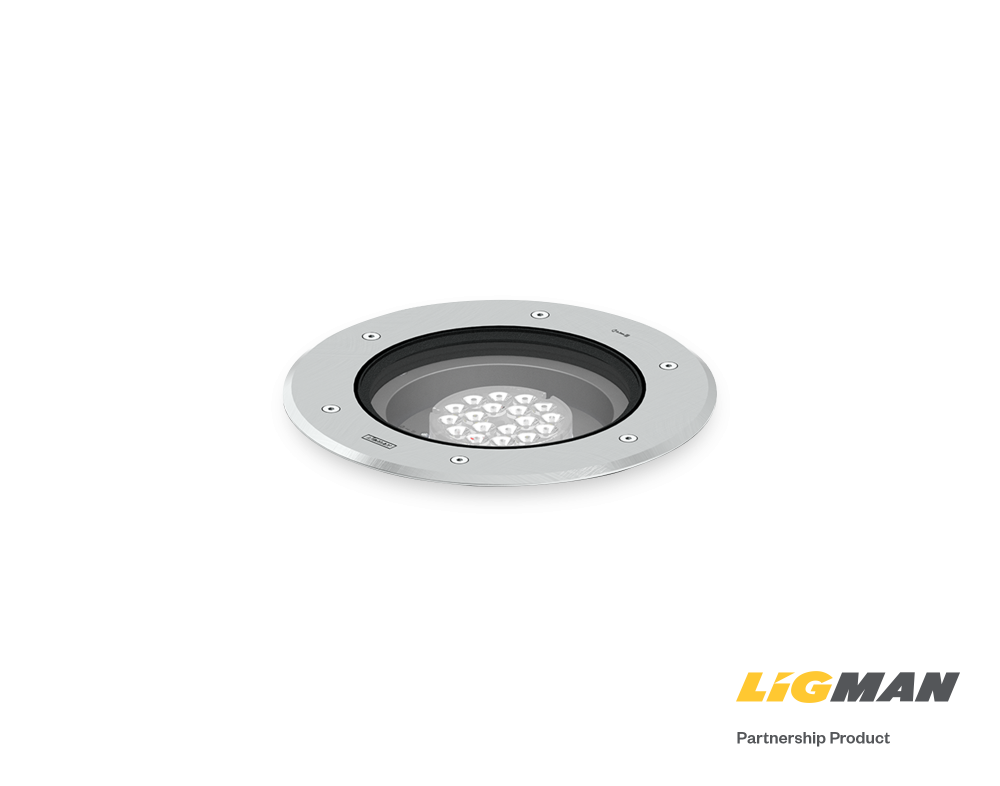

Kios 5 Emboss Product slider Product image LIGMAN 2000x1572px

Downloads

Kios family datasheet

Format: Adobe Acrobat PDF file, (2.7 MB)

Kios 5 datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Kios 5 RGBW datasheet

Format: Adobe Acrobat PDF file, (1.4 MB)

In-ground luminaire

Professional technical in-ground lighting solutions. Sophisticated and expansive; white and RGBW DMX, with 7 beam types.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Stainless steel frame
  • Single cable entry
  • Through wiring on request
  • Can be pre-wired with 2m cable on request
  • Stainless steel fasteners in grade 316
  • High-efficiency PMMA lens
  • Durable silicone rubber gasket
  • Clear or frosted toughened glass 15mm
  • Integral control gear
  • Recessing box in high density polyethylene is included
  • Suitable for drive-over with a maximum load of 2000 kg
  • Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h
  • Load is transferred by the housing to the foundation
  • The distance between the floodlight and the illuminated surface should be at least 0.5 m

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP67
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Paths & walkways

Lighting

Light source:
Surface Mounted Device LED (SMD)
Lumen Range (lumens):
1063-3320
LED qty:
7-18
Colour rendering (CRI):
>80Ra
L80 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V

Mechanical and installation

Materials:
Body: Die-cast aluminium
Frame: Stainless steel
Glazing: Glass
Finish:
Powder coat
Product colours:
Stainless steel
Mounting:
Ground recessed

Downloads and dimensions

Kios family datasheet

Format: Adobe Acrobat PDF file, (2.7 MB)

Kios 5 datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Kios 5 RGBW datasheet

Format: Adobe Acrobat PDF file, (1.4 MB)

Kios 5 installation instructions

Format: Adobe Acrobat PDF file, (1.5 MB)

Kios 5 and 6 RGBW installation instructions

Format: Adobe Acrobat PDF file, (704 KB)

Completed Kios 5 Emboss Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 375
  • B 220
  • C 145
Weight (kg):
7.2
Complete Kios 5 Flat Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 375
  • B 290
  • C 145
Weight (kg):
6.7
