Surface facade luminaires

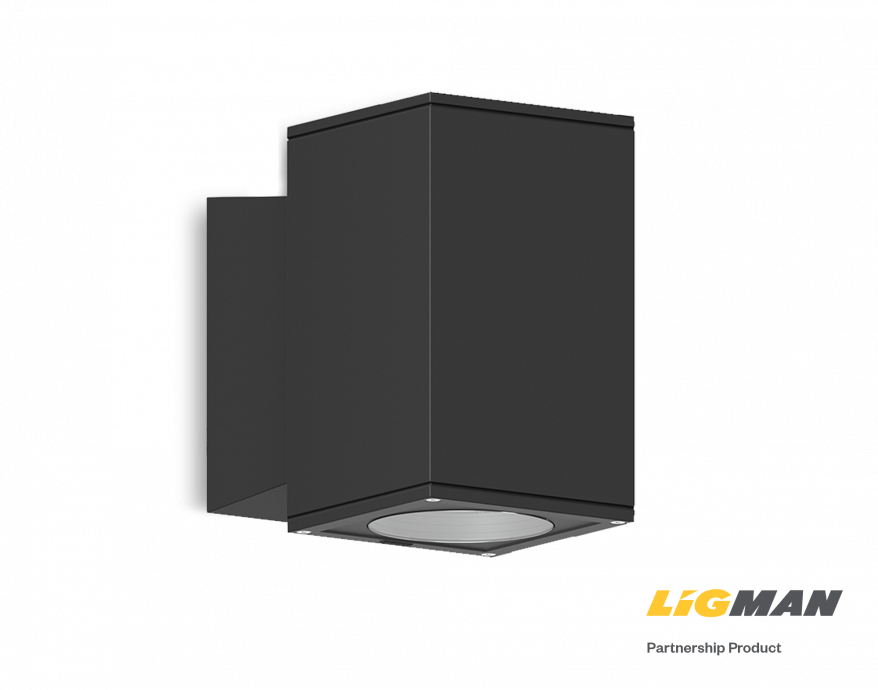

Rectangular form surface wall-mounted downlight. High performance, high output and numerous options ensure JET can be configured for any application.
- Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
- Single cable entry
- Two cable entries for through wiring for JE-30393, JE-30413, JE-30383, JE-30403
- Stainless steel fasteners in grade 316
- Durable silicone rubber gasket
- High-efficiency optical reflector
- Clear toughened glass
- Integral control gear
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings
Buildings
Lighting
Lumen Range (lumens):
949-6988
LED qty:
1-7 & 7
Colour rendering (CRI):
>80Ra
L90 Lifetime Estimate:
>50,000hrs
Power and control
Voltage:
220-240V
Mechanical and installation
Materials:
Body: Die-cast aluminium
Glazing: Glass
Reflector: Aluminium
Glazing: Glass
Reflector: Aluminium
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall surface
Downloads and dimensions

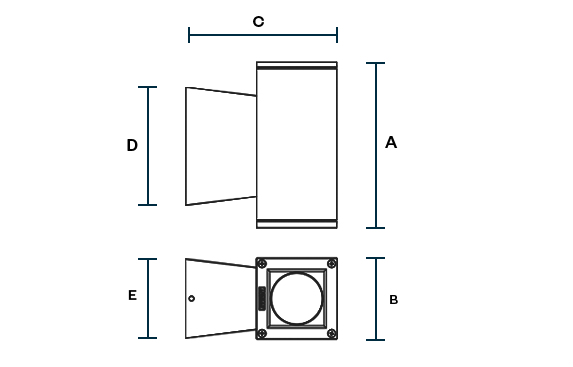

Dimensions (mm):
- A 218
- B 102
- C 192
- D 150
- E 100
Weight (kg):
2.6
2.6

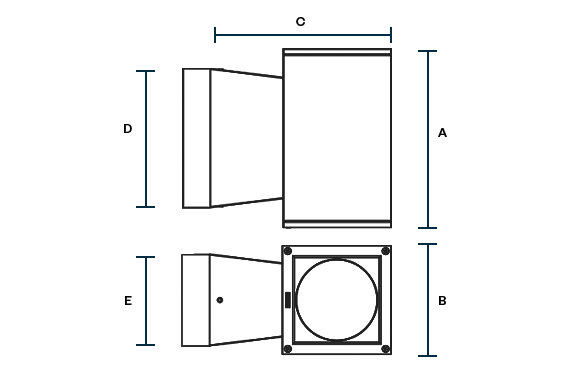

Dimensions (mm):
- A 263
- B 160
- C 267
- D 205
- E 135
Weight (kg):
5.1
5.1

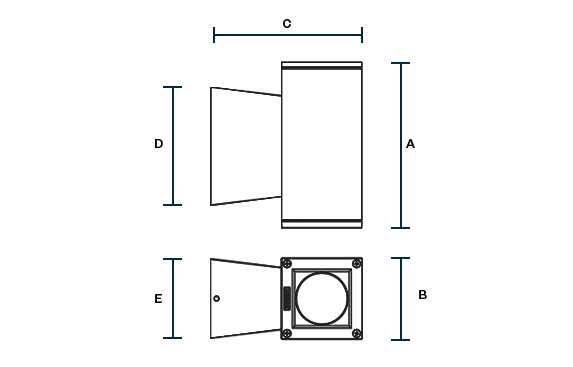

Dimensions (mm):
- A 218
- B 102
- C 192
- D 150
- E 100
Weight (kg):
2.7
2.7

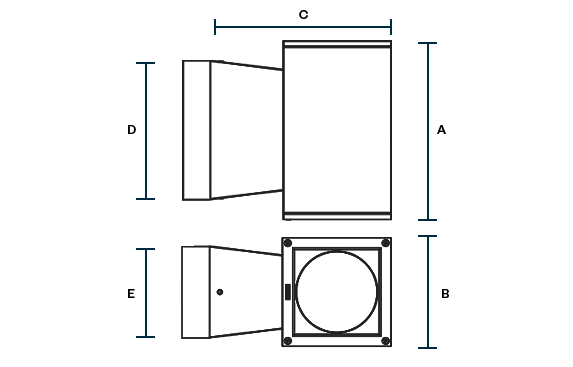

Dimensions (mm):
- A 263
- B 160
- C 267
- D 205
- E 135
Weight (kg):
6.2
6.2

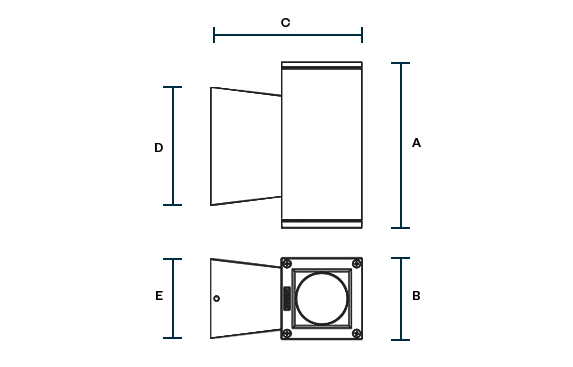

Dimensions (mm):
- A 263
- B 160
- C 307
- D 205
- E 135
Weight (kg):
5.6
5.6
Dimensions (mm):
- A 263
- B 160
- C 307
- D 205
- E 135
Weight (kg):
6.7
6.7
