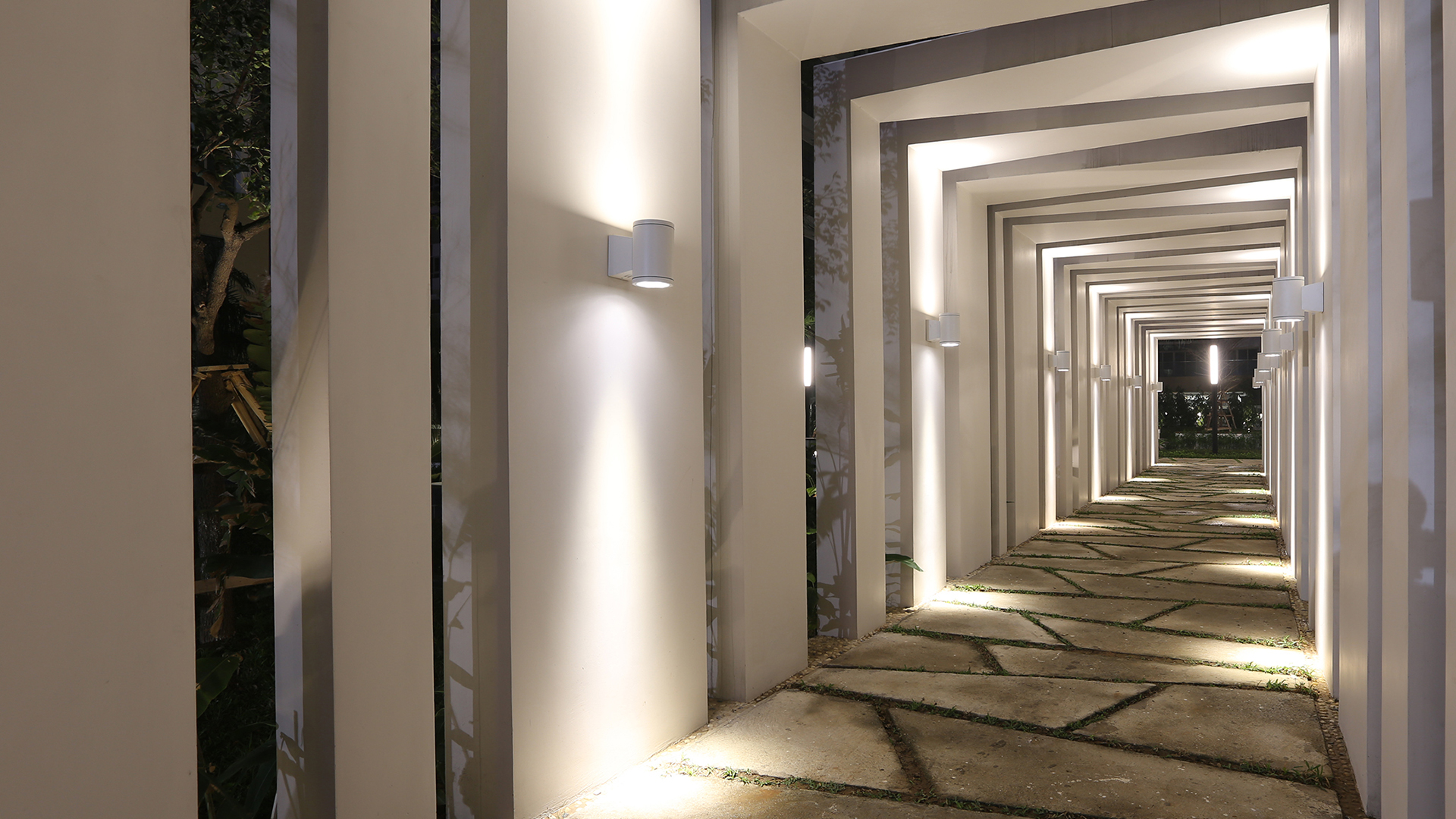

Jet wall Wall and ceiling LIGMAN Product Slider Location Image 1920x1080px2

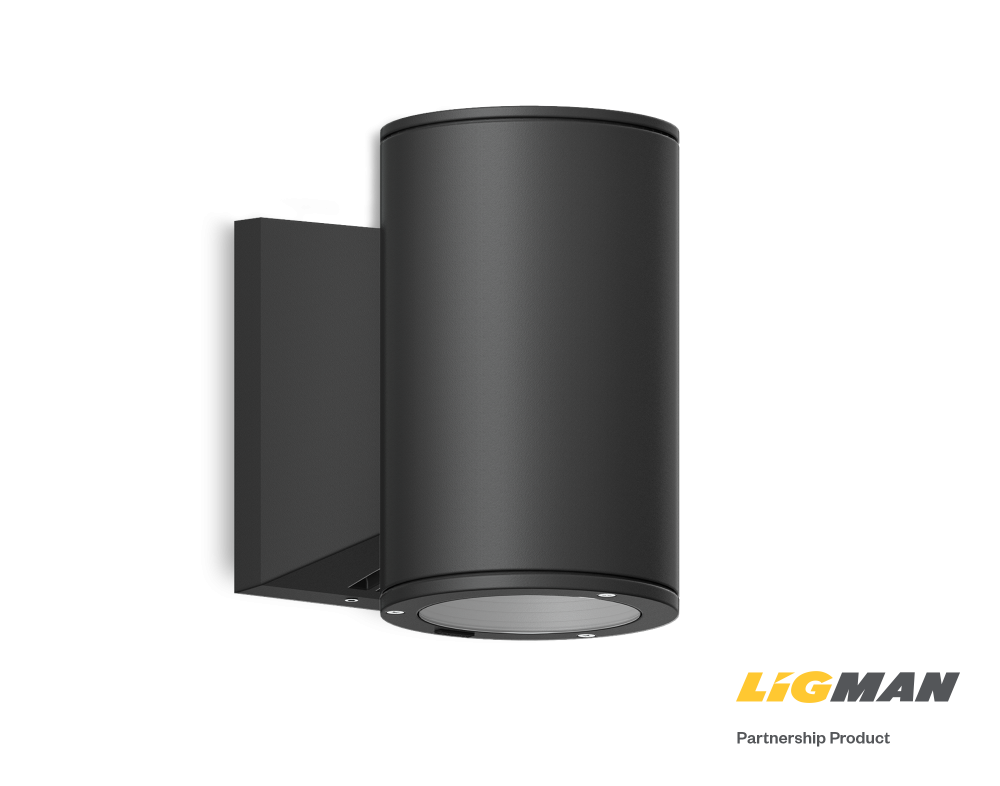

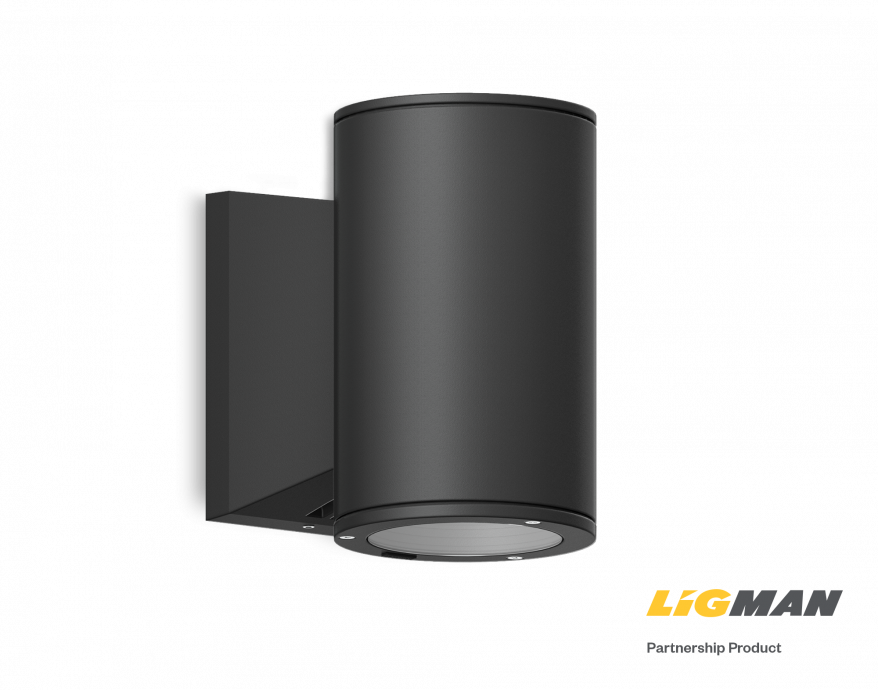

Jet 35 Product slider Product image LIGMAN 2000x1572px

Downloads

Jet Wall family datasheet

Format: Adobe Acrobat PDF file, (4.4 MB)

Surface facade luminaire

Cylindrical form surface wall-mounted downlight. High performance, high output and numerous options ensure JET can be configured for any application.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Two cable entries for through wiring for JE-30393, JE-30413, JE-30383, JE-30403
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • High-efficiency optical reflector
  • Clear toughened glass
  • Integral control gear

Products in this range

(6 in total)

Change view:

Contact us about this product

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings

Lighting

Lumen Range (lumens):
949-6988
LED qty:
1-7 & 7
Colour rendering (CRI):
>80Ra
L90 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Reflector: Aluminium
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall surface

Downloads and dimensions

Jet Wall family datasheet

Format: Adobe Acrobat PDF file, (4.4 MB)

Completed Jet 31 Round Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 218
  • B 102
  • C 189
  • D 150
  • E 100
Weight (kg):
2.2
Completed Jet 31 Round Product variant dimensions drawing LIGMAN W573px3
Dimensions (mm):
  • A 262
  • B 160
  • C 261
  • D 202
  • E 132
Weight (kg):
3.8
Completed Jet 35 Round Product variant dimensions drawing LIGMAN W573px4
Dimensions (mm):
  • A 218
  • B 102
  • C 189
  • D 150
  • E 100
Weight (kg):
2.3
Completed Jet 37 Round Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 262
  • B 160
  • C 261
  • D 202
  • E 132
Weight (kg):
5
Completed Jet 53 Round Product variant dimensions drawing LIGMAN W573px3
Dimensions (mm):
  • A 262
  • B 160
  • C 301
  • D 202
  • E 132
Weight (kg):
4.3
Completed Jet 53 Round Product variant dimensions drawing LIGMAN W573px4
Dimensions (mm):
  • A 262
  • B 160
  • C 301
  • D 202
  • E 132
Weight (kg):
5.3
