Jet 41 (80051)

Change view:

Jet 41 80051 Product slider Product image LIGMAN 2000x1572px

Downloads

Jet Ceiling family datasheet

Format: Adobe Acrobat PDF file, (1.3 MB)

Jet 41 slim datasheet

Format: Adobe Acrobat PDF file, (694 KB)

Jet 41 and 42 slim installation instructions

Format: Adobe Acrobat PDF file, (247 KB)

Surface exterior downlight

Cylindrical form surface ceiling-mounted downlight. High performance, high output and numerous options ensure JET can be configured for any application.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • Clear toughened glass
  • Integral control gear

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings

Lighting

Light source:
Chip on Board LED (CoB)
Lumen Range (lumens):
1700-2284
Power Range:
20
LED qty:
1
Distribution:
Asymmetric 46° x 56°
Narrow 22°
Medium 35°
Wide 52°
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 114lm/W
L90 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
500mA
Dimming:
On/Off, 1-10V, DALI

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Ceiling surface

Downloads and dimensions

Jet Ceiling family datasheet

Format: Adobe Acrobat PDF file, (1.3 MB)

Jet 41 slim datasheet

Format: Adobe Acrobat PDF file, (694 KB)

Jet 41 and 42 slim installation instructions

Format: Adobe Acrobat PDF file, (247 KB)

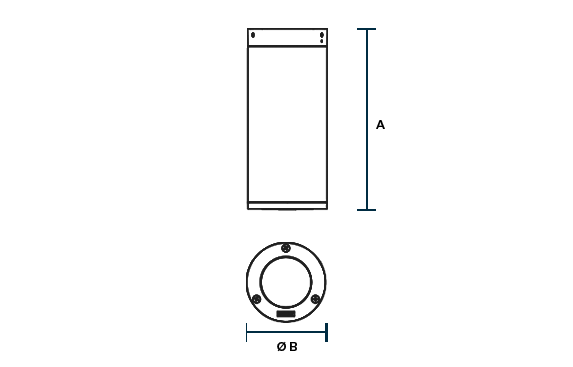

Complete Jet 41 80051 Product variant dimensions drawing LIGMAN W573px3
Dimensions (mm):
  • A 296
  • Ø B 160
Weight (kg):
3.1kg
