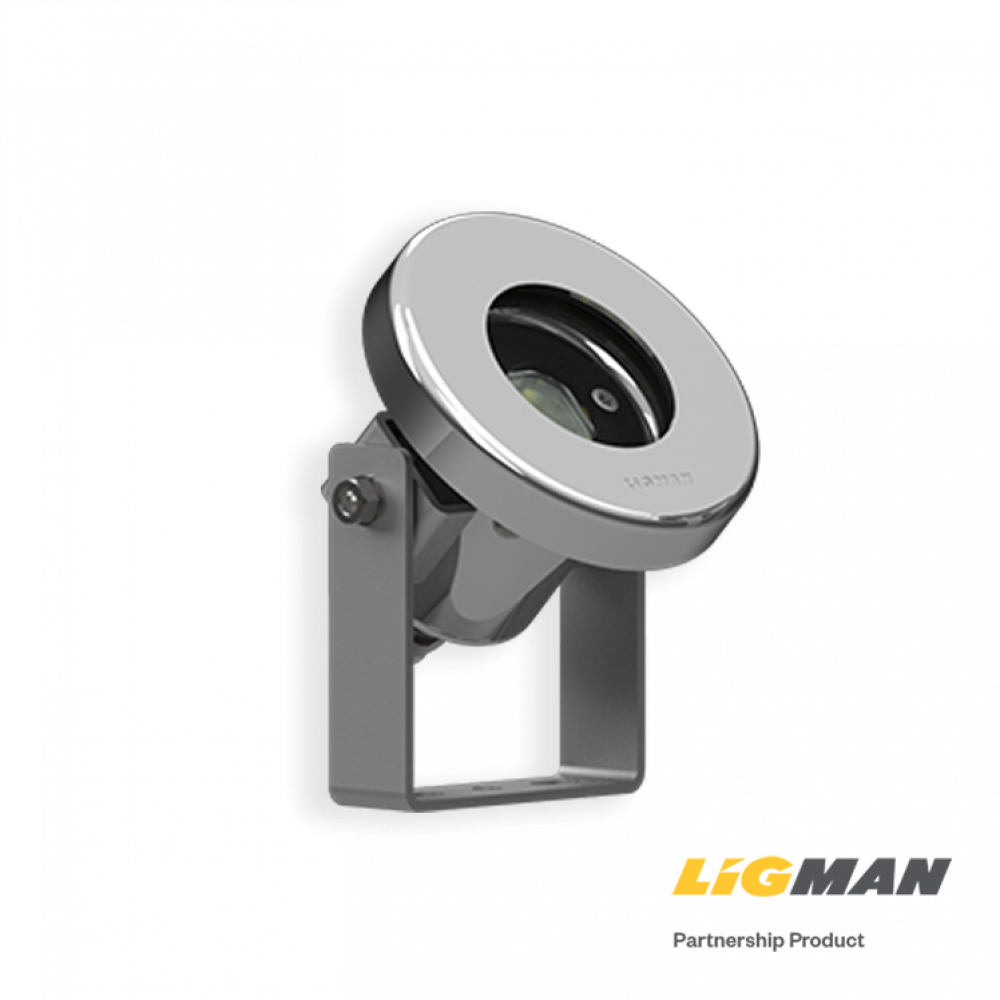

Underwater projectors
Powerful professional, high-performing underwater adjustable spotlight family. The complete professional underwater system offers RGBW options with extensive source and optic combinations. Offering a solution for even the largest of water features.
- Stainless steel body and fasteners in grade 316
- Single cable entry
- One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
- Durable silicone rubber gasket
- Clear toughened glass
- Maximum depth of 1.5 m
- Luminaire must be submerged when operational
- Remote driver for constant current (CC) is included, for constant voltage (CV) not included
- Remote box IP-rated is not included
- Outdoor cable needs to be ordered with a specific length
Detailed Specification
Product specification
Electrical Class:
III
IP rating:
IP68
IK rating:
IK07
Certifications:
CE
Lighting
Lumen Range (lumens):
211-358
Power Range:
4
LED qty:
1
Distribution:
Narrow 13°
Medium 18°
Wide 32°
Medium 18°
Wide 32°
Colour Temperature (CCT):
3000K
4000K
RGBW 3000K
RGBW 4000K
4000K
RGBW 3000K
RGBW 4000K
Max efficacy (luminaire lumens):
up to 90lm/W
Power and control
Voltage:
24V
Drive Current Range:
350mA
Dimming:
On/Off, 1-10V, DALI, DMX
Mechanical and installation
Materials:
Body: Grade 316 Stainless steel
Glazing: Glass
Glazing: Glass
Product colours:
Stainless steel
Mounting:
Underwater surface

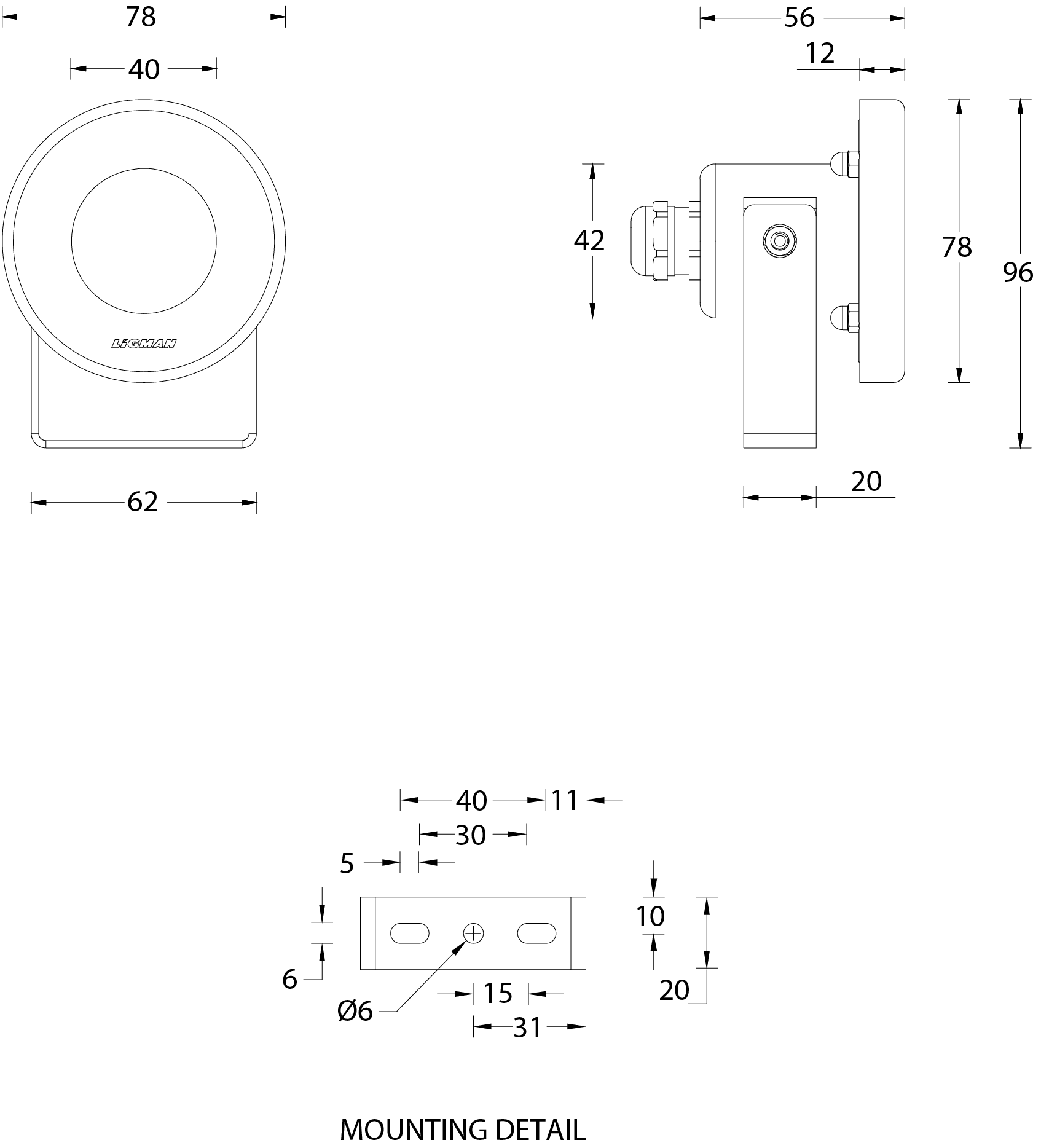

Downloads and dimensions
FUNEN family datasheet
Format: Adobe Acrobat PDF file, (4 MB)
Weight (kg):
0.4
0.4
