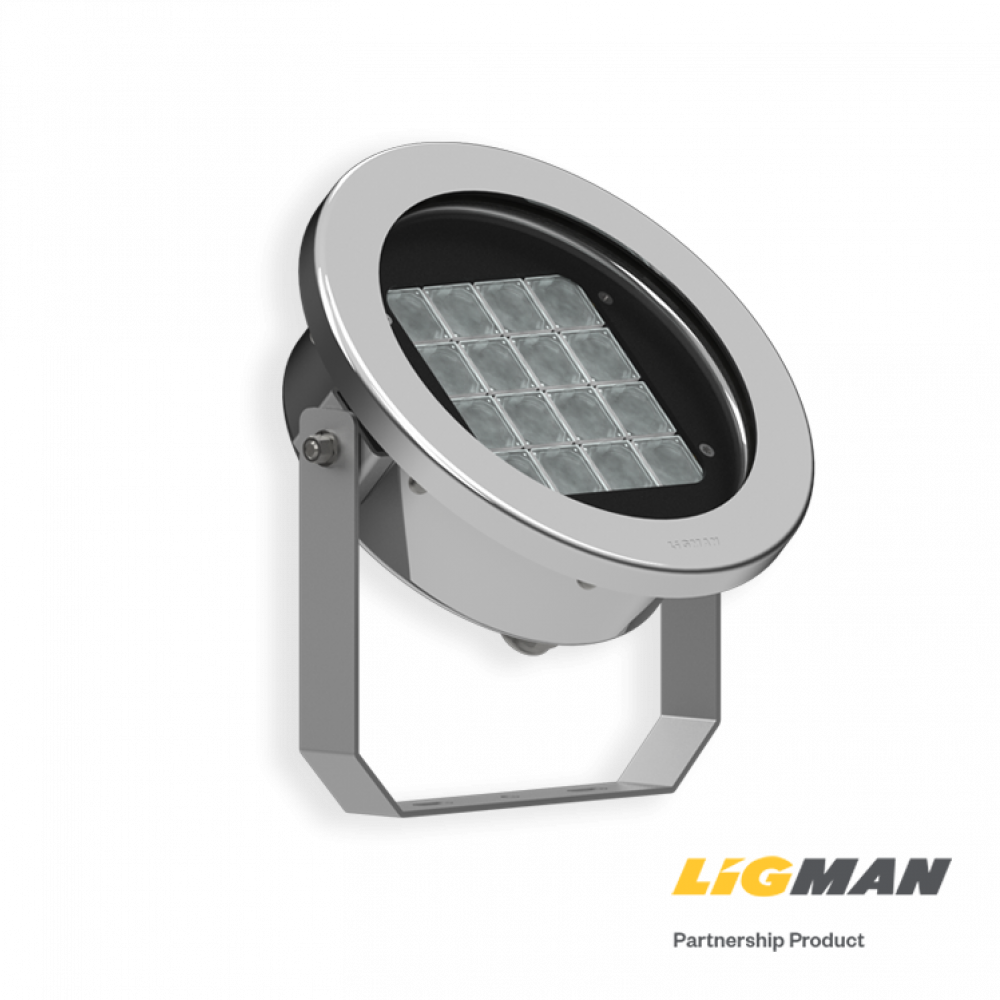

Funen 4 Product slider Product image LIGMAN 748x748px3

Downloads

FUNEN family datasheet

Format: Adobe Acrobat PDF file, (4 MB)

Underwater projectors

Powerful professional, high-performing underwater adjustable spotlight family. The complete professional underwater system offers RGBW options with extensive source and optic combinations. Offering a solution for even the largest of water features.

  • Stainless steel body and fasteners in grade 316
  • Single cable entry
  • One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
  • Durable silicone rubber gasket
  • Clear toughened glass
  • Maximum depth of 1.5 m
  • Luminaire must be submerged when operational
  • Remote driver for constant current (CC) is included, for constant voltage (CV) not included
  • Remote box IP-rated is not included
  • Outdoor cable needs to be ordered with a specific length

Products in this range

(4 in total)

Change view:

Contact us about this product

Detailed Specification

Product specification

Electrical Class:
III
IP rating:
IP68
IK rating:
IK07
Certifications:
CE

Lighting

Lumen Range (lumens):
211-4038
LED qty:
1
Colour Temperature (CCT):
3000K
4000K
RGBW 3000K
RGBW 4000K

Power and control

Voltage:
24V
Dimming:
On/Off, 1-10V, DALI, DMX

Mechanical and installation

Materials:
Body: Grade 316 Stainless steel
Glazing: Glass
Product colours:
Stainless steel
Mounting:
Underwater surface

Downloads and dimensions

FUNEN family datasheet

Format: Adobe Acrobat PDF file, (4 MB)

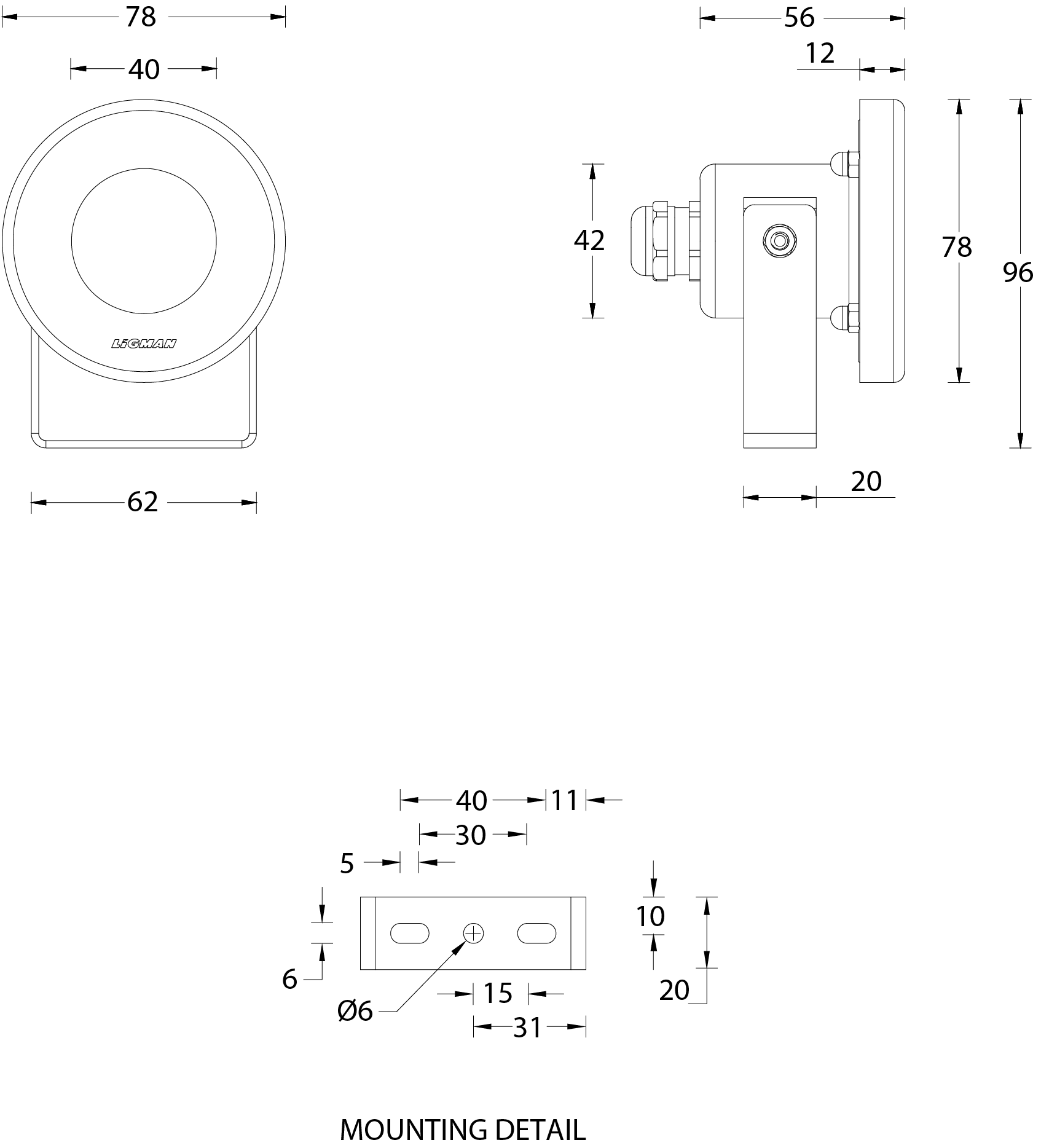

FUN 1 technical
Weight (kg):
0.4
FUN 2 technical
Weight (kg):
0.9
FUN 3 technical
Weight (kg):
1.4

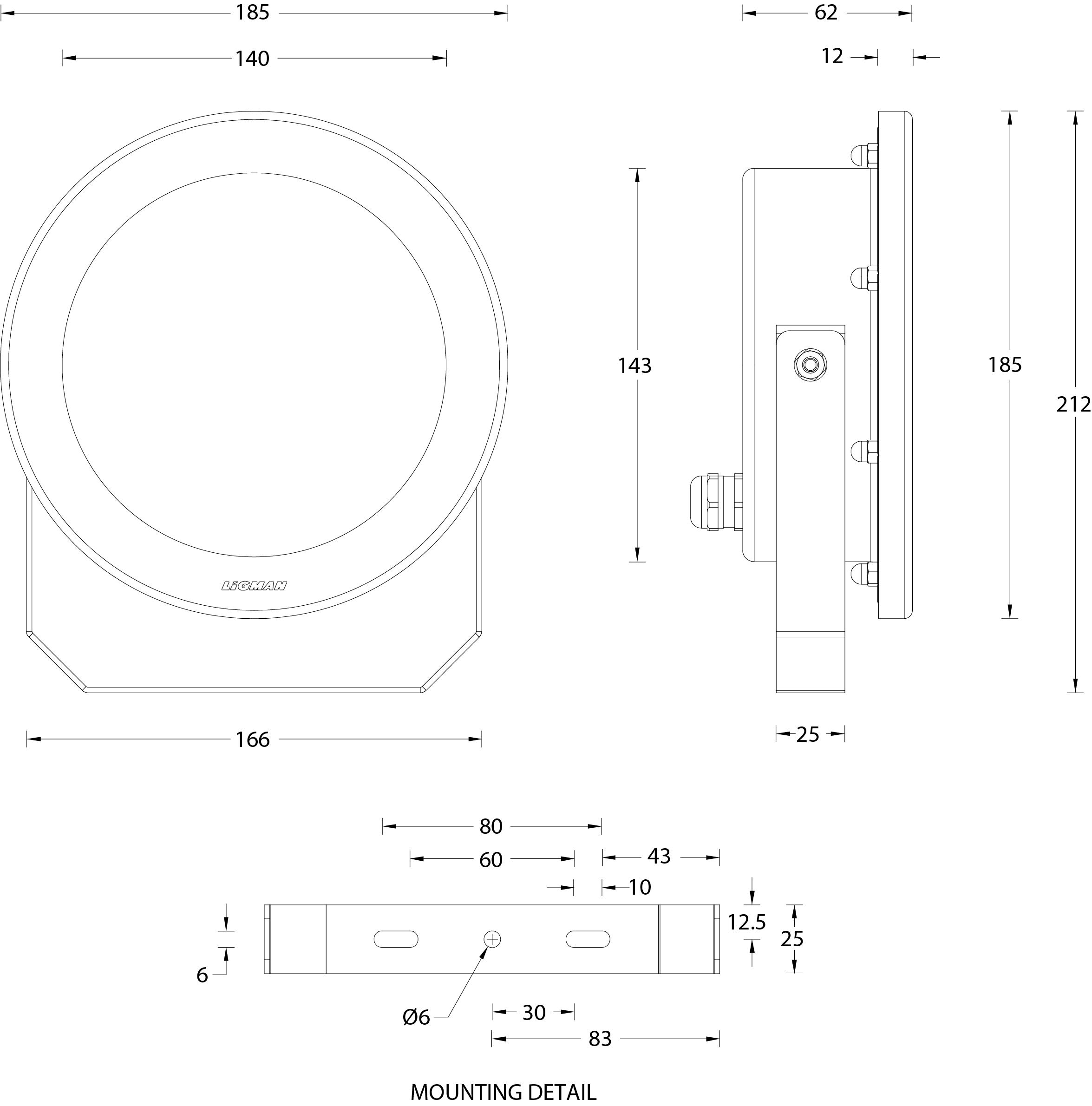

FUN 4 technical
Weight (kg):
2.4
