Sky Wall

Change view:

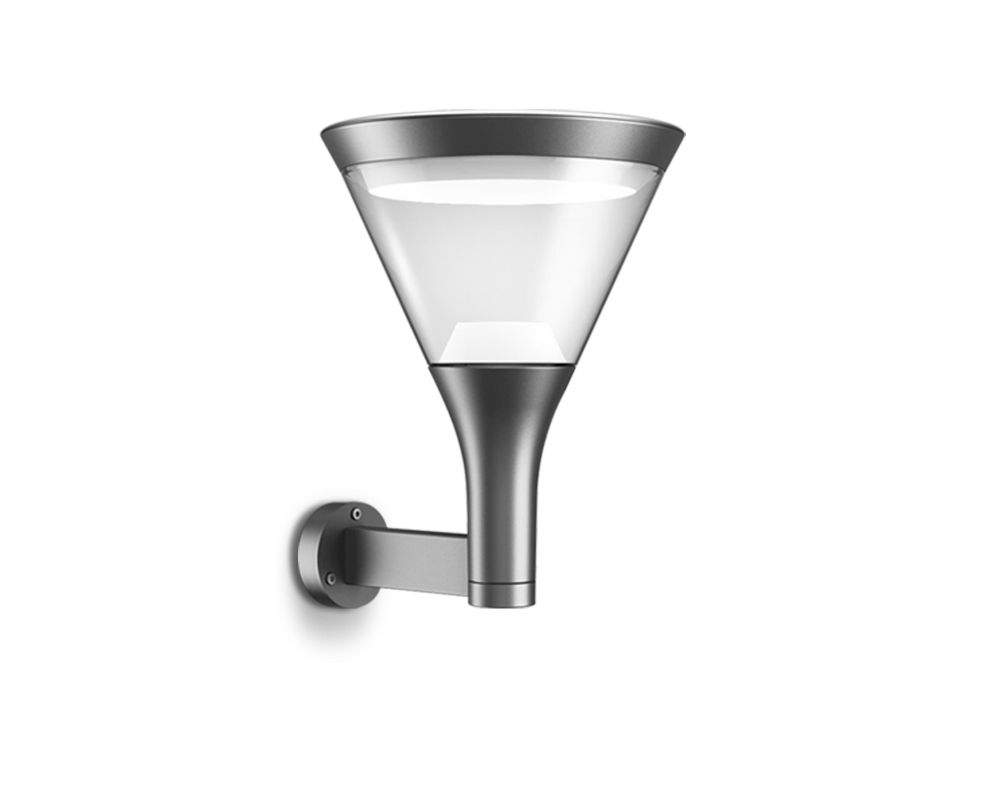

Sky Wall Mounted Lighting Product image 2000x1572px

Downloads

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Sky brochure

Format: Adobe Acrobat PDF file, (2.8 MB)

Sky photometry

Format: ZIP compressed file, (34 KB)

Decorative wall mounted luminaire, from Focus by DW Windsor

Sky Wall is an exterior contemporary luminaire, designed by AART designers. The simple shape of the Sky Wall provides pleasant and low-glare indirect light, producing high quality comfortable lighting for public pedestrian spaces. The Sky family also consists of a complementary bollard and column mounted luminaire.

  • Recommended for mounting at 4 metres
  • Indirect COB LED light source, minimising glare
  • From 1550 to 4700lm

Request a quote

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
4
Applications:
Buildings

Lighting

Light source:
Bridgelux Vero 18
Lumen Range (lumens):
1550-4700
Power Range:
up to 35
LED qty:
1
Distribution:
Asymmetric
Symmetric
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
80Ra
L80 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
700mA
Dimming:
1-10V, DALI
Surge protection:
L/N-GND: 8kv
L-N: 6kV
Driver:
Philips Xi FP

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Lid: Spun aluminium
Glazing: Clear polycarbonate with UV-resistant acrylate
Finish:
Polyester powder coat
Product colours:
SW302G Graphite grey
MW300D Silver grey
SN351F Black (Noir 900 Sablé)
YX355F Corten brown (Mars 2525)
Other RAL colours on request
Mounting:
Wall Mount
Post Top

Downloads and dimensions

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Sky brochure

Format: Adobe Acrobat PDF file, (2.8 MB)

Sky photometry

Format: ZIP compressed file, (34 KB)

Sky Wall installation instructions

Format: Adobe Acrobat PDF file, (449 KB)

Sky Wall product dimension drawing W573px
Dimensions (mm):
  • A 553
  • B 670
  • Ø C 150
  • D 359
  • Ø E 480
Weight (kg):
8.4
