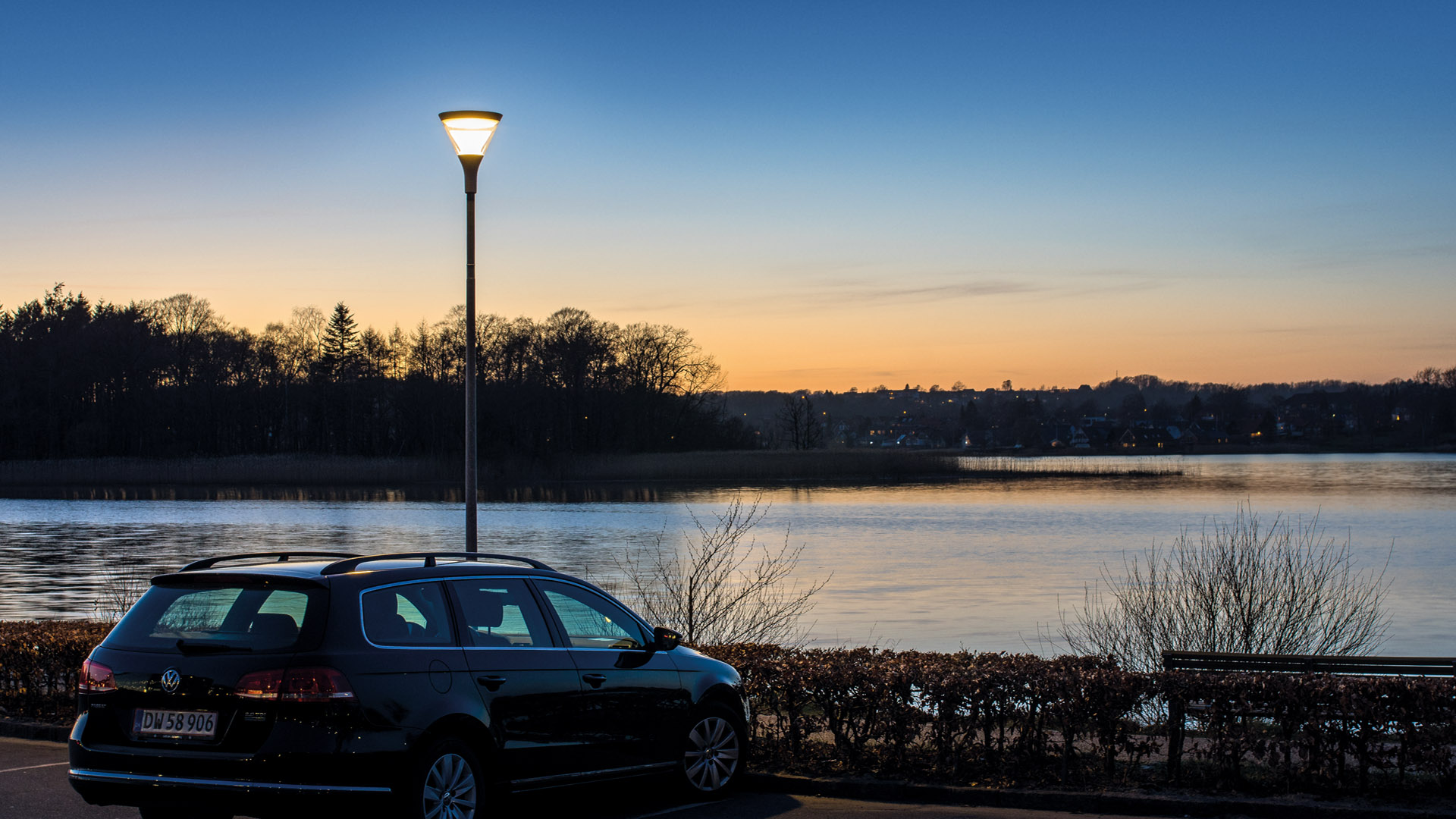

Sky Decorative Street Lighting Location image 1920x1080px Alt1

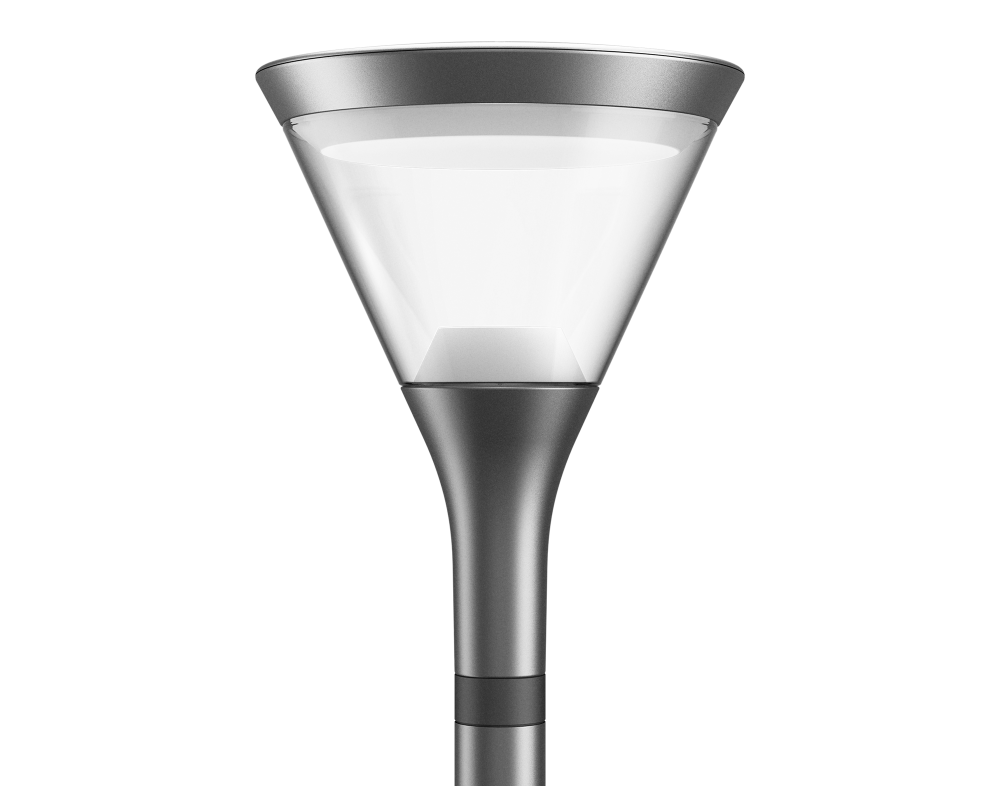

Sky Decorative Street Lighting Product image 2000x1572px

Downloads

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Focus by DWW - Sky Family Brochure

Format: Adobe Acrobat PDF file, (3 MB)

Sky photometry

Format: ZIP compressed file, (34 KB)

Low-glare public realm luminaire, from Focus by DW Windsor

Sky is a contemporary post top luminaire, designed by AART designers. The simple shape of the Sky lantern provides pleasant and low-glare indirect light, producing high quality comfortable lighting for public pedestrian spaces. The Sky family also consists of a complementary bollard and wall mounted luminaire.

  • Recommended for mounting at 3-5 metres
  • Indirect COB LED light source, minimising glare
  • From 1550 to 4900lm

Request a quote

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
2.5-4
Applications:
Public realm
High street & road lighting
Car parks
Buildings

Lighting

Light source:
Bridgelux Vero 18
Lumen Range (lumens):
1550-4900
Power Range:
up to 35
LED qty:
1
Distribution:
Symmetric
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
80Ra
L80 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Dimming:
1-10V, DALI
Surge protection:
L/N-GND: 8kV
L-N: 6kV
Driver:
Fully programmable

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Lid: Spun aluminium
Glazing: Polycarbonate with UV-resistant acrylate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
Graphite grey (YW355F Azko Nobel)
Silver grey (Y2370I Azko Nobel)
Black (Noir 900 Sablé SN351F Azko Nobel)
Corten brown (YX355F Azko Nobel)
Other RAL colours on request
Mounting:
Post Top: Ø60mm / Ø76mm (Ø90mm using accessory on Ø60mm spigot)

Downloads and dimensions

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Focus by DWW - Sky Family Brochure

Format: Adobe Acrobat PDF file, (3 MB)

Sky photometry

Format: ZIP compressed file, (34 KB)

Sky installation instructions

Format: Adobe Acrobat PDF file, (528 KB)

Sky Post Top product dimension drawing W573px
Dimensions (mm):
  • A 618
  • Ø B 480
  • Ø C 90
  • D 256
Weight (kg):
8.4
Windage (m2):
0.143
