Sky Bollard

Change view:

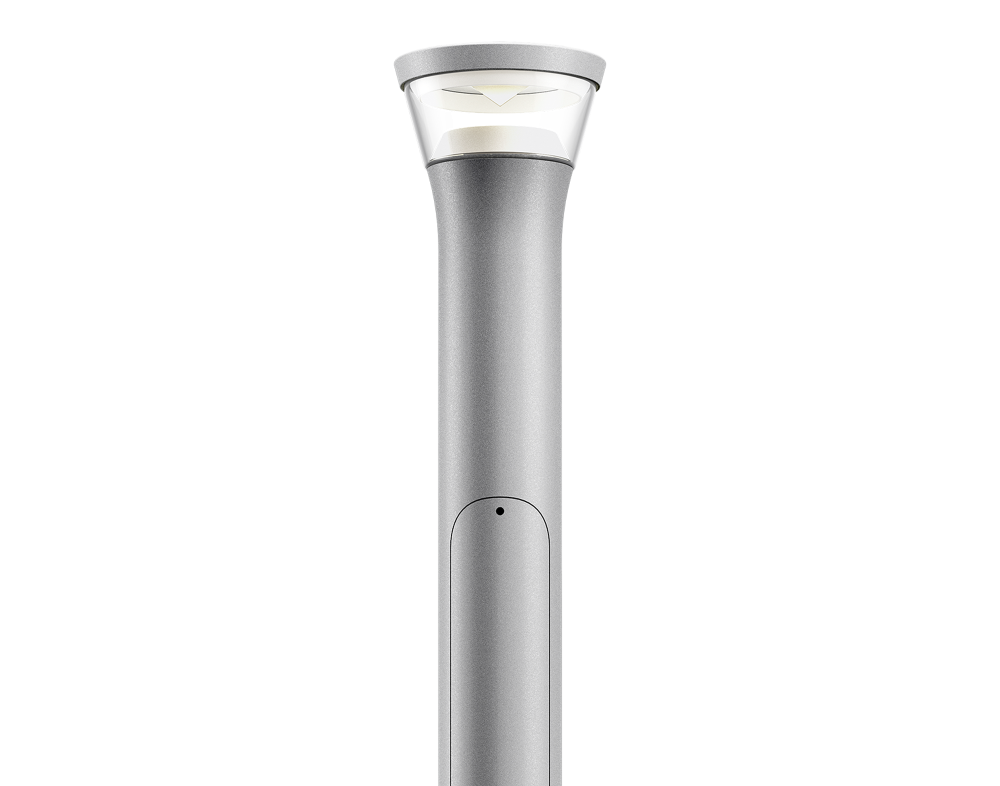

Sky Bollard Product image 2000x1572px

Downloads

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Sky brochure

Format: Adobe Acrobat PDF file, (2.8 MB)

Sky Bollard photometry

Format: ZIP compressed file, (8 KB)

More views

Sky Bollard Product image 2000x1572px

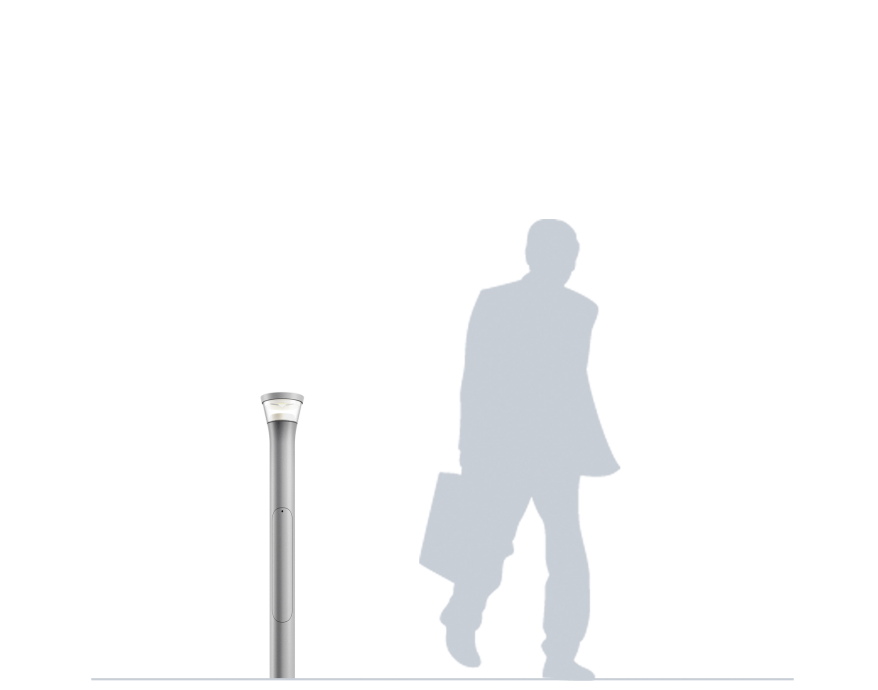

Sky height Bollard Product image 2000x1572px

Comfort lighting bollard, from Focus by DW Windsor

Sky Bollard is a contemporary luminaire, designed by AART designers. The Sky bollard is made up of three soft circular shapes, which provides pleasant and low-glare indirect light, producing high quality comfortable lighting for public pedestrian spaces. The Sky family also consists of a complementary column mounted and wall mounted luminaire.

  • Indirect COB LED light source, minimising glare
  • 2700K, 3000K and 4000K CCT options available

Request a quote

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Paths & walkways

Lighting

Light source:
Bridgelux V8
Lumen Range (lumens):
565-775
Power Range:
9-12
LED qty:
1
Distribution:
Symmetric
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
>90Ra
L80 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
350mA
500mA
Driver:
Helvar

Mechanical and installation

Materials:
Top: High pressure die-cast aluminium
Bollard: Galvanised steel
Glazing: Clear polycarbonate with UV-resistant acrylate
Finish:
Polyester powder coat
Product colours:
SW302G Graphite grey
MW300D Silver grey
SN351F Black (Noir 900 Sablé)
YX355F Corten brown (Mars 2525)
Other RAL colours on request
Mounting:
Root mounted
Flange plate

Downloads and dimensions

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Sky brochure

Format: Adobe Acrobat PDF file, (2.8 MB)

Sky Bollard photometry

Format: ZIP compressed file, (8 KB)

Sky Bollard installation instructions

Format: Adobe Acrobat PDF file, (367 KB)

Sky Bollard dimension drawing W573px
Dimensions (mm):
  • A 1020
  • Ø B 186
  • Ø C 108
  • D 600
  • Ø E 150
Weight (kg):
10

The Sky range
