Nyx 330 Wall

Change view:

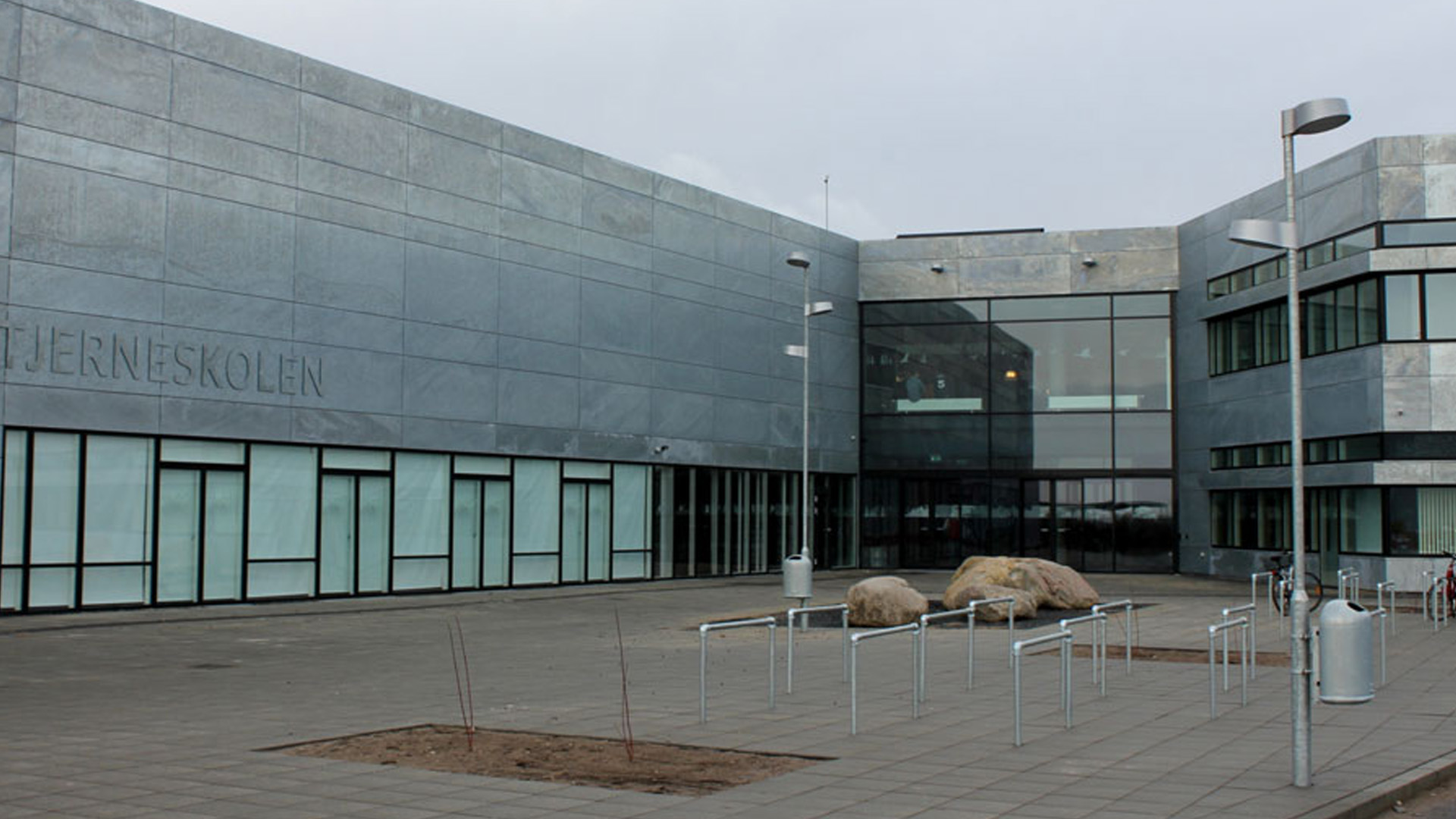

Nyx 330 Wall Mounted Lighting Location image 1920x1080px Alt1

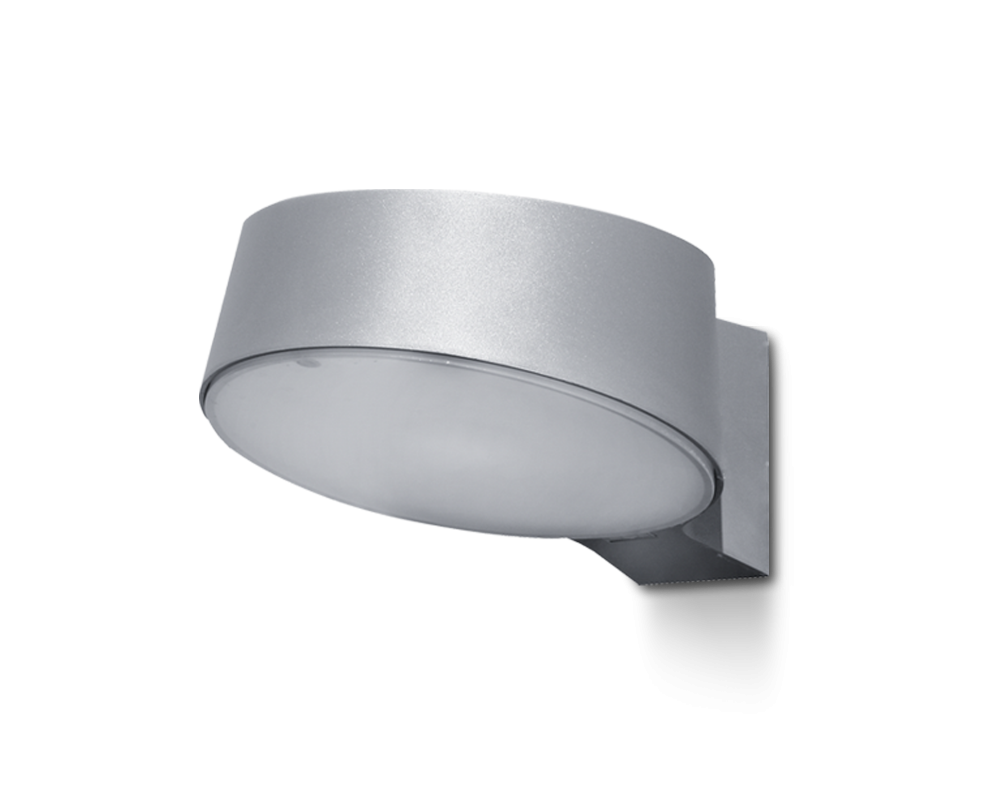

Nyx 330 Wall Mounted Lighting Product image 2000x1572px

Downloads

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Nyx brochure

Format: Adobe Acrobat PDF file, (4.2 MB)

Nyx 330 photometry

Format: ZIP compressed file, (333 KB)

Simple aesthetic, high quality luminaire, from Focus by DW Windsor

The Nyx 330 Wall luminaire, designed by Vilhelm Lauritzen Architects, is characterised by pleasant, indirect light with low glare. As part of the Nyx family, Nyx 330 Wall can be combined with matching column and wall mounted, and bollard luminaires for a consistent aesthetic across a scheme.

  • Recommended for mounting at 4-6 metres
  • Diffused glazing for comfortable, pedestrian-friendly lighting
  • From 1250 to 3100lm

Request a quote

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
4-6
Applications:
Buildings

Lighting

Light source:
Philips Fortimo LLM Gen4
Lumen Range (lumens):
1250-3100
Power Range:
10-37
LED qty:
1
Distribution:
Asymmetric
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
70Ra
80Ra (optional on 4000K only)
L80 Lifetime Estimate:
>120,000hrs

Power and control

Drive Current Range:
200mA
700mA
Dimming:
1-10V, DALI
Surge protection:
L/N-GND: 8kv
L-N: 6kV
Driver:
Philips Xi FP

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Frosted polycarbonate
Finish:
Polyester powder coat
Product colours:
SW302G Graphite grey
MW300D Silver grey
SN351F Black (Noir 900 Sablé)
RAL 9005 Black
YX355F Corten brown (Mars 2525)
Other RAL colours on request
Mounting:
Wall Mount

Downloads and dimensions

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Nyx brochure

Format: Adobe Acrobat PDF file, (4.2 MB)

Nyx 330 photometry

Format: ZIP compressed file, (333 KB)

Nyx 330 Wall installation instructions

Format: Adobe Acrobat PDF file, (382 KB)

Nyx 330 Wall product dimension drawing W573px
Dimensions (mm):
  • A 330
  • B 105
  • C 196
  • D 415
Weight (kg):
6.5
