Nyx 330

Change view:

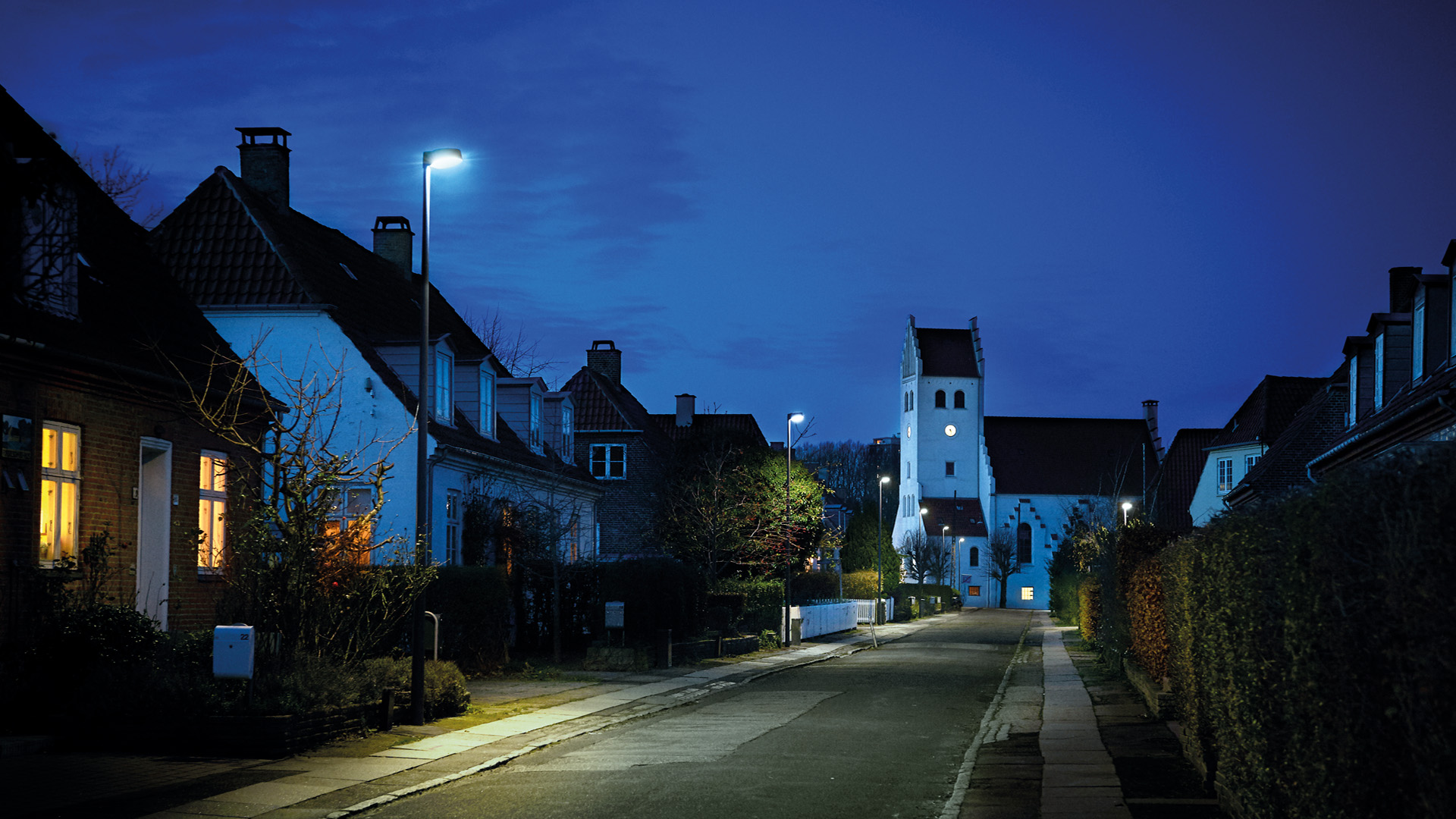

Nyx 330 Decorative Street Lighting Location image 1920x1080px Alt3

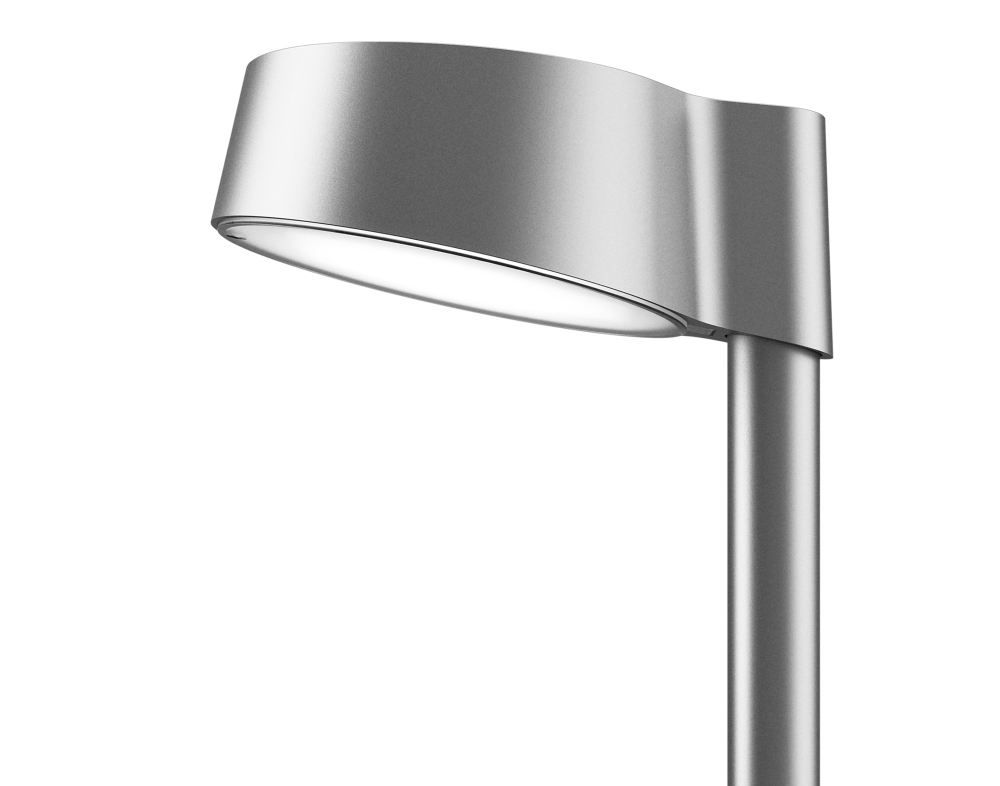

Nyx 330 Decorative Street Lighting Product image 2000x1572px

Downloads

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Nyx brochure

Format: Adobe Acrobat PDF file, (4.2 MB)

Nyx 330 photometry

Format: ZIP compressed file, (333 KB)

Comfort lighting luminaire, from Focus by DW Windsor

The Nyx 330 column mounted luminaire, designed by Vilhelm Lauritzen Architects, is characterised by pleasant, indirect light with low glare. The Nyx 330 can be both direct post and mid post mounted for flexible lighting in multiple configurations. As part of the Nyx family, Nyx 330 can be combined with matching wall mounted and bollard luminaires for a consistent aesthetic across a scheme.

  • Recommended for mounting at 4-6 metres
  • Diffused glazing for comfortable, pedestrian-friendly lighting
  • From 1500 to 4200lm

Request a quote

Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Nyx 330 Comfort Philips LLM Asymmetric 1250-3100 14-32 3000K, 4000K
Nyx 330 Performance Philips Fastflex Road 1500-4200 11-31 3000K, 4000K

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
4-6
Applications:
Public realm
High street & road lighting
Car parks
Buildings

Lighting

Lumen Range (lumens):
1250-4200
LED qty:
1-16
Colour Temperature (CCT):
3000K
4000K
L80 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Controls:
Remote switch
Remote dim
Pre-programmed dim
Full CMS
Surge protection:
L/N-GND: 8kV
L-N: 6kV
Driver:
Philips Xi FP

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Glazing: UV-resistant polycarbonate
Finish:
Polyester powder coat
Product colours:
SW302G Graphite grey
MW300D Silver grey
SN351F Black (Noir 900 Sablé)
RAL 9005 Black
YX355F Corten brown (Mars 2525)
Other RAL colours on request
Operating temp (°C):
-30°C to +35°C
Mounting:
Direct Post: Ø60mm
Mid Post: Ø60mm

Downloads and dimensions

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Nyx brochure

Format: Adobe Acrobat PDF file, (4.2 MB)

Nyx 330 photometry

Format: ZIP compressed file, (333 KB)

Nyx 330 installation instructions

Format: Adobe Acrobat PDF file, (373 KB)

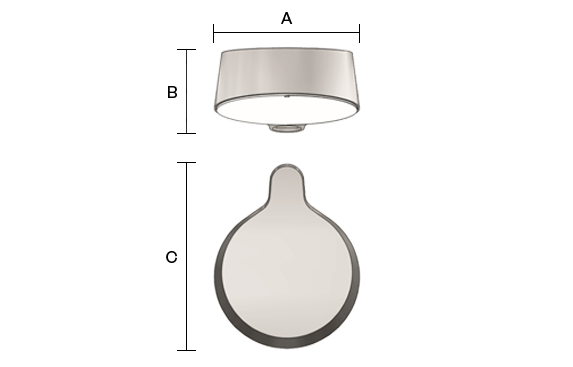

Nyx 330 product dimension drawing W573px2
Dimensions (mm):
  • A 330
  • B 191
  • C 416
Weight (kg):
8
Windage (m2):
0.053
