Nyx 190 Wall

Change view:

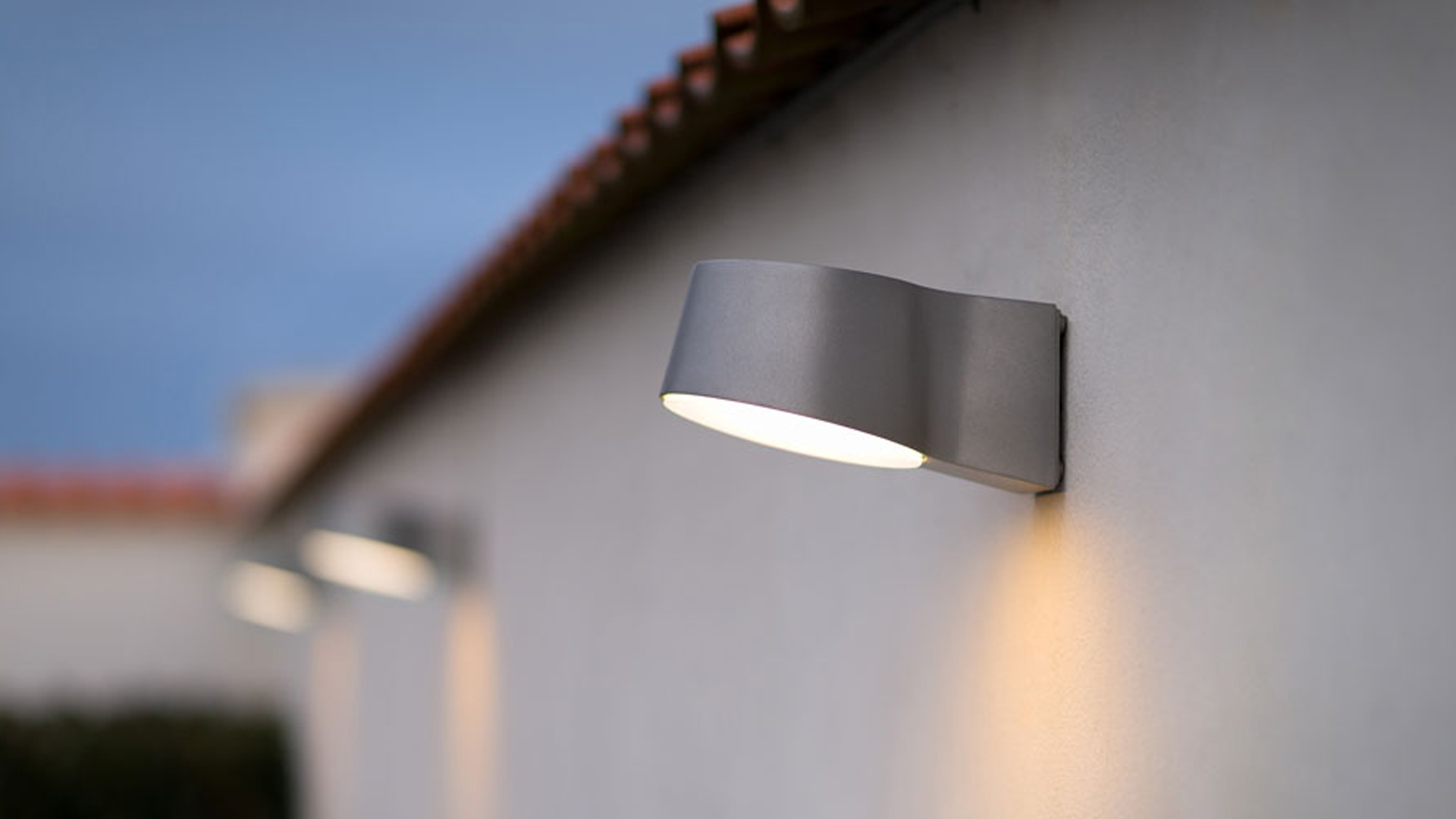

Nyx 190 Wall Mounted Lighting Location image 1920x1080px

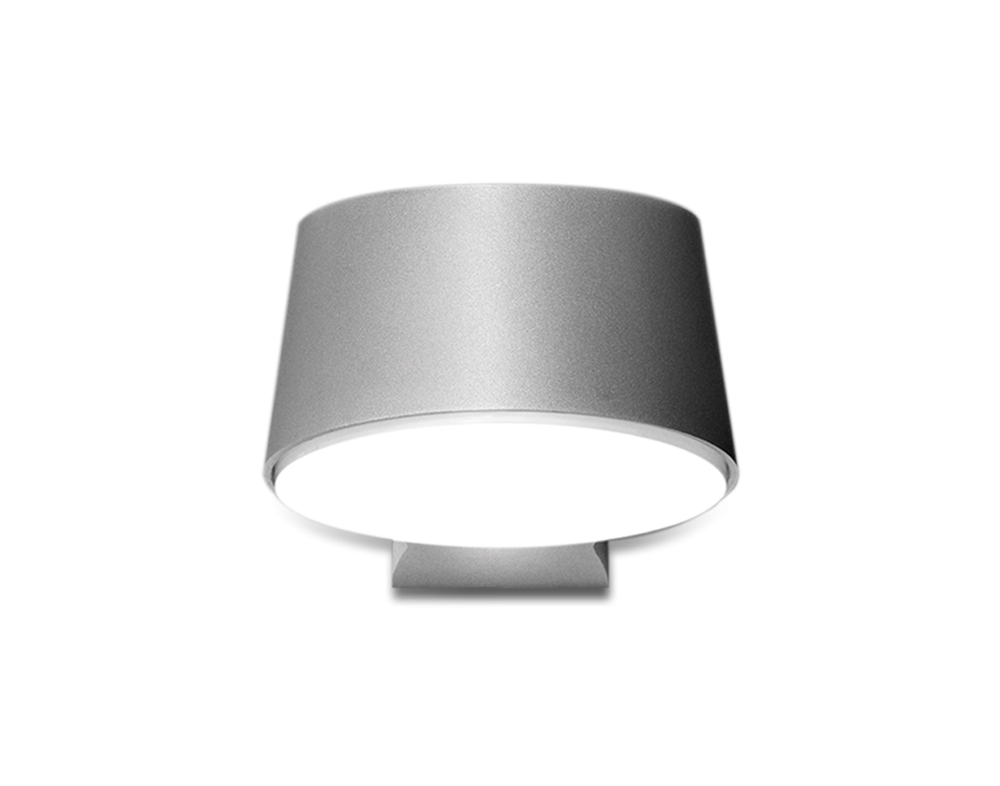

Nyx 190 Wall Mounted Lighting Product image 2000x1572px

Downloads

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Nyx brochure

Format: Adobe Acrobat PDF file, (4.2 MB)

Nyx 190 Wall photometry

Format: ZIP compressed file, (25 KB)

High quality, low glare luminaire, from Focus by DW Windsor

The Nyx 190 Wall luminaire, designed by Vilhelm Lauritzen Architects, is characterised by pleasant, indirect light with low glare. As part of the Nyx family, Nyx 190 Wall can be combined with matching column and wall mounted, and bollard luminaires for a consistent aesthetic across a scheme.

  • Recommended for mounting at 4 metres
  • Diffused glazing for comfortable, pedestrian-friendly lighting
  • From 800 to 1300lm

Request a quote

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
4
Applications:
Buildings

Lighting

Light source:
Bridgelux Vero 10
Lumen Range (lumens):
809-1397
Power Range:
12-17
LED qty:
1
Distribution:
Symmetric
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
90Ra
L80 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
350mA
500mA
Driver:
Helvar

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Frosted polycarbonate
Finish:
Polyester powder coat
Product colours:
SW302G Graphite grey
MW300D Silver grey
SN351F Black (Noir 900 Sablé)
RAL 9005 Black
YX355F Corten brown (Mars 2525)
Other RAL colours on request
Mounting:
Wall Mount

Downloads and dimensions

Focus Lighting brochure

Format: Adobe Acrobat PDF file, (7.9 MB)

Nyx brochure

Format: Adobe Acrobat PDF file, (4.2 MB)

Nyx 190 Wall photometry

Format: ZIP compressed file, (25 KB)

Nyx 190 Wall installation instructions

Format: Adobe Acrobat PDF file, (460 KB)

Nyx 190 Wall product dimension drawing W573px
Dimensions (mm):
  • A 190
  • B 95
  • C 150
  • D 270
Weight (kg):
2.6
