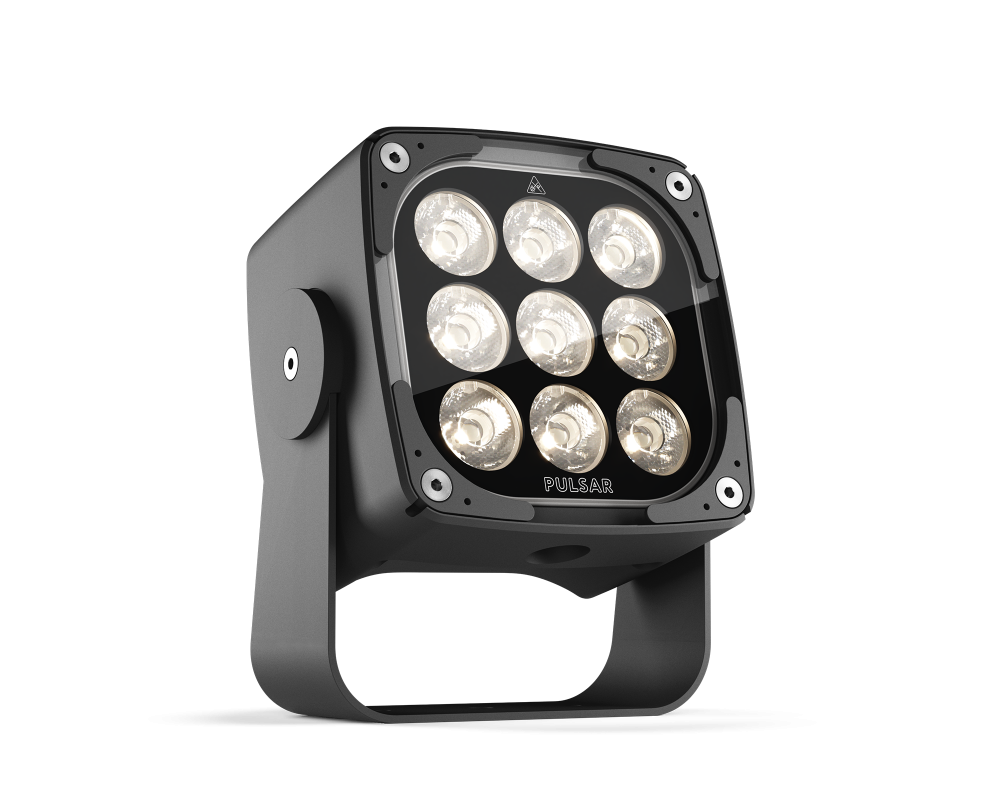

fira ultra Product slider Product image Lighting 2000x1572px

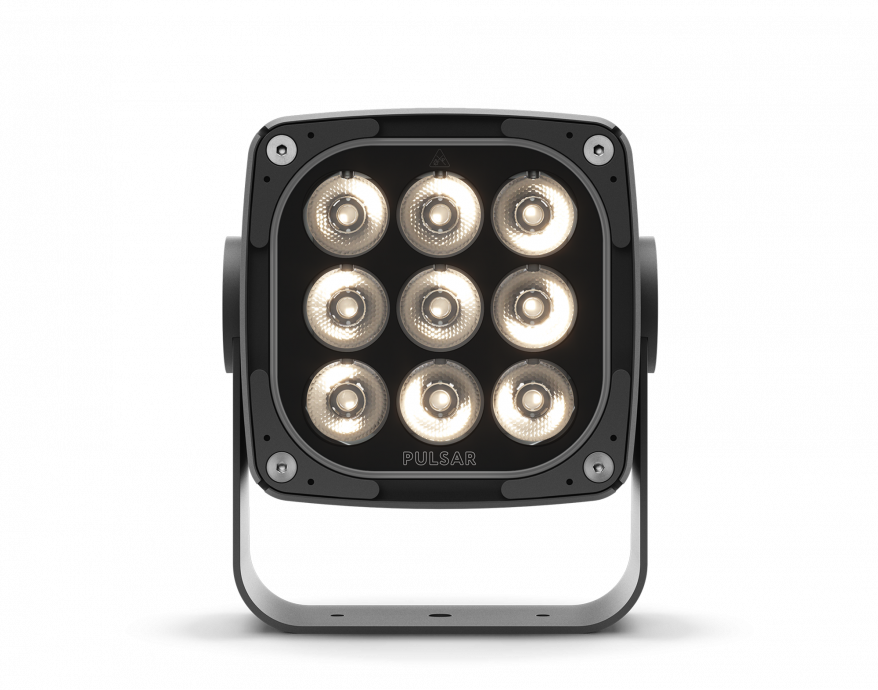

fira ultra front Product slider Product image Lighting 2000x1572px3

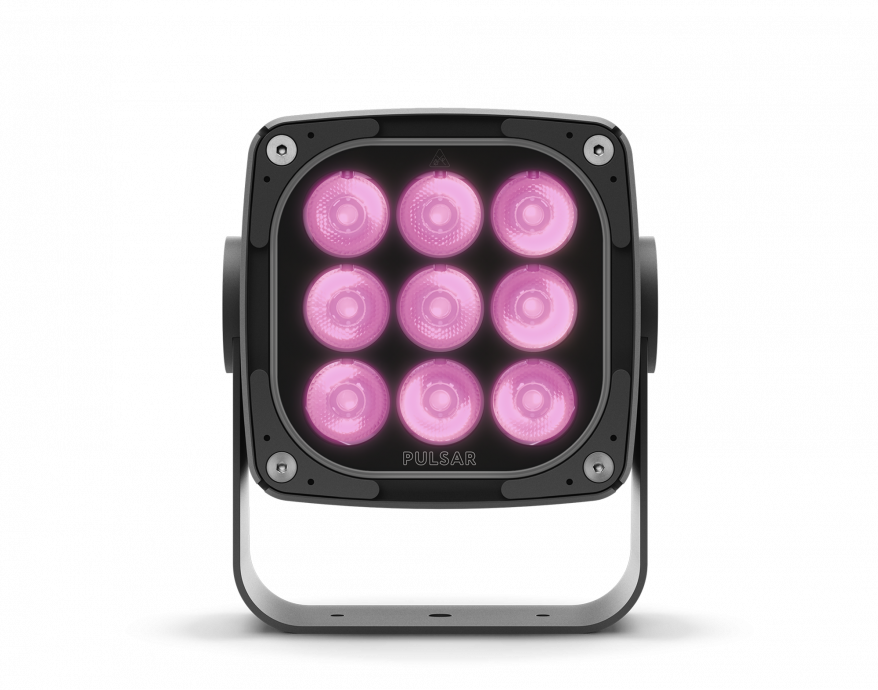

fira ultra front rgbw Product slider Product image Lighting 2000x1572px

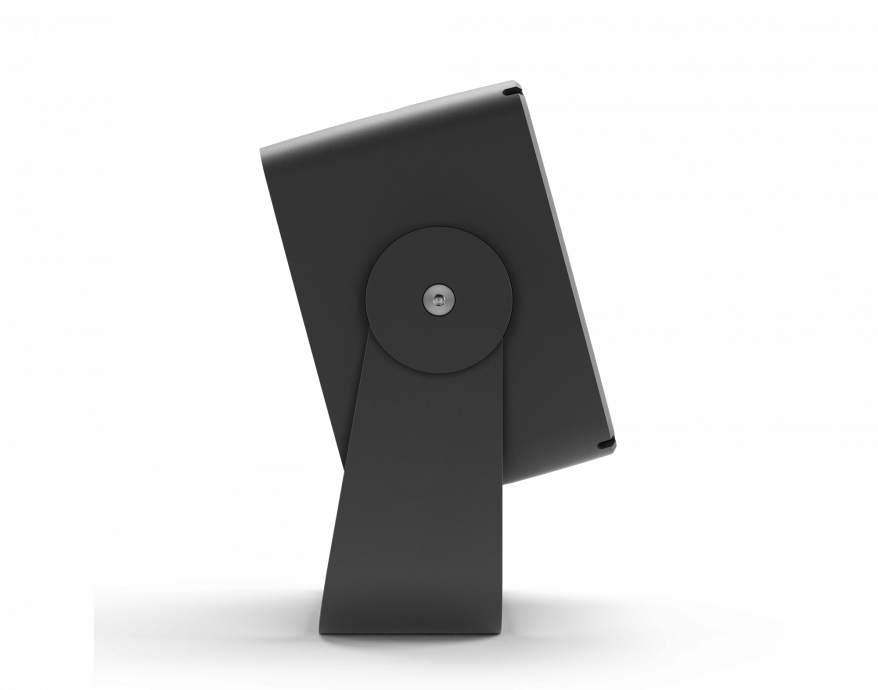

fira ultra side Product slider Product image Lighting 2000x1572px
Fira Ultra
Fira
/ Fira Ultra
Fira range guide
Fira Ultra photometric datasheet
Fira Ultra Datasheet
Fira Ultra installation instructions
Fira Ultra IES files
Contact

The small but powerful projector

With its elegant, geometric form and compact size, Fira Ultra is a highly versatile architectural luminaire, designed to enhance urban environments through precise illumination.

Developed as a joint collaboration between DW Windsor and Pulsar, the high-performance luminaire is available with a choice of dynamic LED light sources with multiple beam options from narrow spots to wide floods.

  • Dynamic light sources: RGBW, RGBA & Tunable White
  • Compact design integrates seamlessly into architecture
  • Surface or column mounting options
  • 100,000 hour lifetime (L70)
  • IP66 and IK09 protection
ResImages(10829, 0, 'desktop').Title

Features

Dynamic Light Sources

Fira Ultra can be specified with a range of high-quality, dynamic LED light options, including RGBW, RGBA and Tunable White, unrivalled in performance and colour accuracy.

Innovative Thermal Management

Cool Zone technology aids luminaire performance by separating LEDs and driver. By utilising the venturi effect, it is able to to passively cool the luminaire.

Compact Design

Fira features a compact, geometric design helping it to seamlessly integrate into architectural environments. The luminaire can also be mounted in any orientation thanks to its lockable mounting yoke.

Engineered to last

With die-cast aluminium housing and toughened glass, Fira has been designed with durability in mind.  Awarded with an IP66 and IK09 rating, the luminaire is perfect for external applications.

Optical Accessories

For flexibility and precise lighting distribution, Fira can be fitted with a choice of three optical accessories. Designed to manage light discreetly, the range of interchangeable louvres, snoots and hal-snoots help to control glare and are easily fitted on-site.

Fira Colours

silver fira pro Product image Lighting 748x748px

white fira ultra Product image Lighting 748x748px

black fira ultra Product image Lighting 748x748px

Mounting Options

mounting options spike gallery Main image Lighting 1170x800px3
mounting options post top gallery Main image Lighting 1170x800px2
mounting options 5 post top gallery Main image Lighting 1170x800px2
mounting options stand gallery Main image Lighting 1170x800px2
mounting options side pole gallery Main image Lighting 1170x800px2

Detailed Specification

Product specification

Electrical Class:
I, (II on request)
IP rating:
IP66
IK rating:
IK09
Certifications:
CE
Applications:
Buildings
Public realm

Lighting

Light source:
High power LED
Lumen Range (lumens):
1259-1904
Power Range:
32
LED qty:
36
Distribution:
Holographic Beam Shaping
Symmetric
Asymmetric
Colour Temperature (CCT):
RGBW
RGBA
Tunable White
Colour rendering (CRI):
90
L70 Lifetime Estimate:
100,000 hours

Power and control

Voltage:
120-277V
Dimming:
DMX 512
Controls:
DMX 512
RDM

Mechanical and installation

Tilt / inclination:
45° (forward), 90° (back)
Materials:
Body: die-cast aluminium
Glazing: flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
Other RAL colours available on special request
Operating temp (°C):
-20°C to +50°C
Mounting:
Surface
Column

Downloads and dimensions

Fira range guide

Format: Adobe Acrobat PDF file, (27 MB)

Download

Fira Ultra photometric datasheet

Format: Adobe Acrobat PDF file, (7.6 MB)

Download

Fira Ultra Datasheet

Format: Adobe Acrobat PDF file, (11 MB)

Download

Fira Ultra installation instructions

Format: Adobe Acrobat PDF file, (16 MB)

Download

Fira Ultra IES files

Format: ZIP compressed file, (55 KB)

Download
fira straight on Product variant dimensions drawing Lighting W573px3
Dimensions (mm):
  • A 212
  • B 175
Weight (kg):
4.5
fira side on Product variant dimensions drawing Lighting W573px3
Dimensions (mm):
  • A 106
  • B 132
  • C 72
  • D 160
Weight (kg):
4.5
