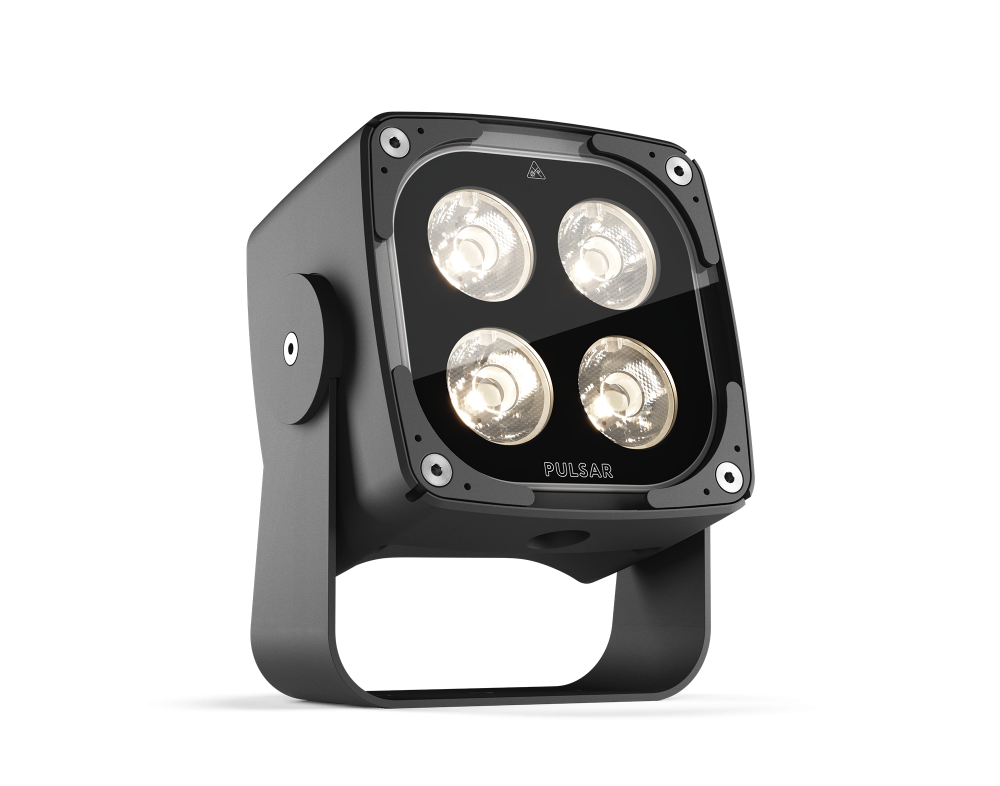

fira pro Product slider Product image Lighting 2000x1572px

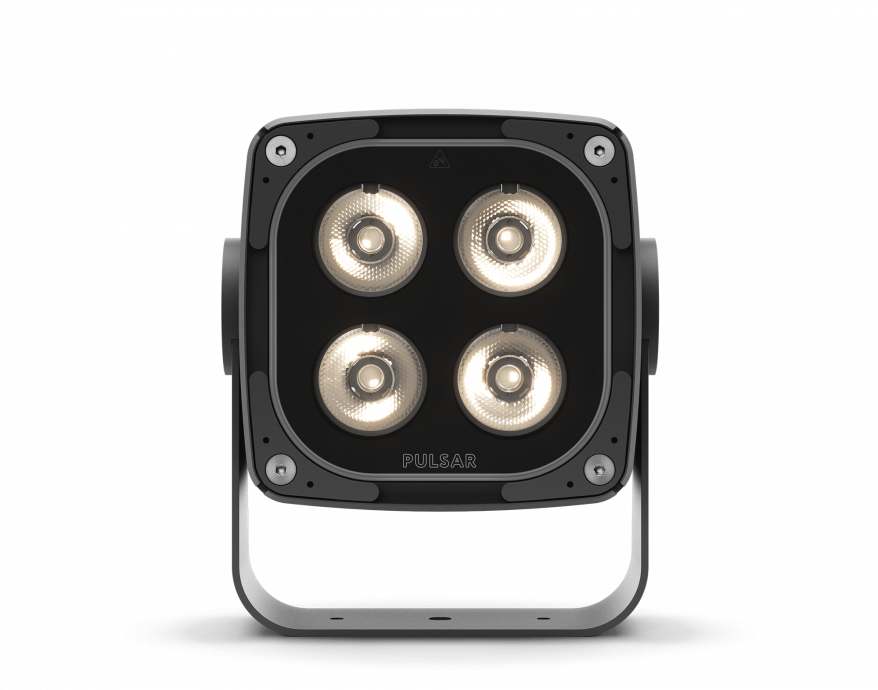

fira pro front Product slider Product image Lighting 2000x1572px2

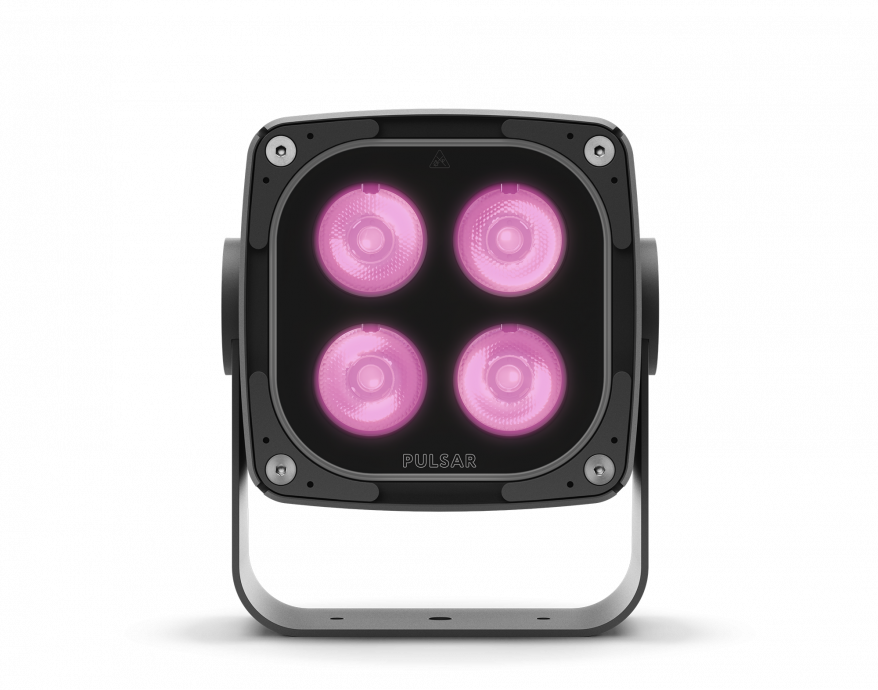

fira pro front rgbw Product slider Product image Lighting 2000x1572px

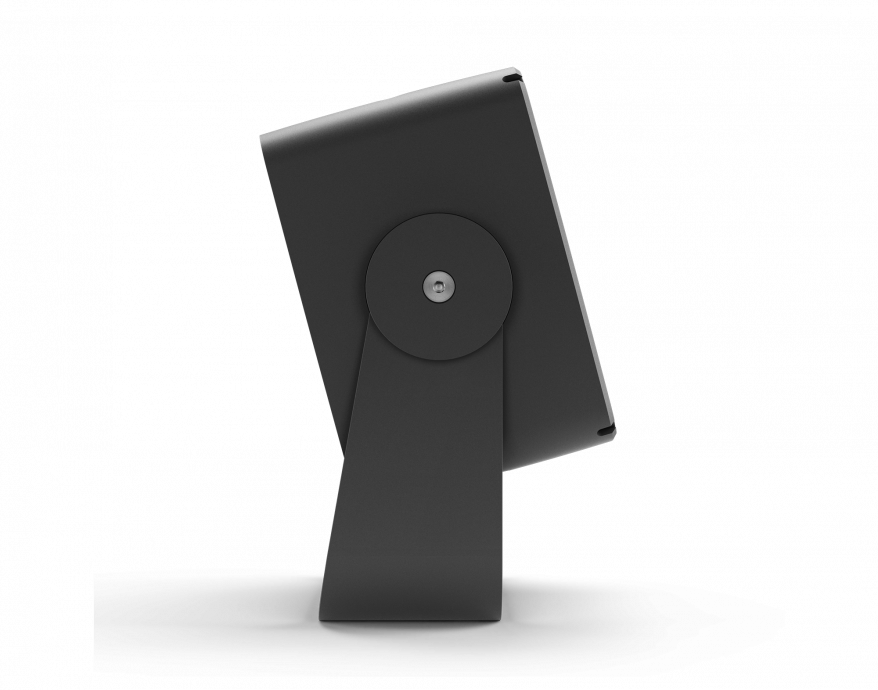

fira pro side Product slider Product image Lighting 2000x1572px
Fira Pro
Fira
/ Fira Pro
Fira brochure
Fira Pro and Fira Ultra installation instructions
Fira Pro IES files
Fira Pro BIM files
Contact

The small but powerful projector

With its elegant, geometric form and compact size, Fira Pro is a highly versatile architectural luminaire, designed to enhance urban environments through precise illumination.

Developed as a joint collaboration between DW Windsor and Pulsar, the high-performance luminaire is available with a choice of dynamic LED light sources with multiple beam options from narrow spots to wide floods.

  • Dynamic light sources: RGBW, RGBA & Tunable White
  • Compact design integrates seamlessly into architecture
  • Surface or column mounting options
  • 100,000 hour lifetime (L70)
  • IP66 and IK09 protection
ResImages(10719, 0, 'desktop').Title

Features

Dynamic Light Sources

Fira Ultra can be specified with a range of high-quality, dynamic LED light options, including RGBW, RGBA and Tunable White, unrivalled in performance and colour accuracy.

Innovative Thermal Management

Cool Zone technology aids luminaire performance by separating LEDs and driver. By utilising the venturi effect, it is able to to passively cool the luminaire.

Compact Design

Fira features a compact, geometric design helping it to seamlessly integrate into architectural environments. The luminaire can also be mounted in any orientation thanks to its lockable mounting yoke.

Engineered to last

With die-cast aluminium housing and toughened glass, Fira has been designed with durability in mind.  Awarded with an IP66 and IK09 rating, the luminaire is perfect for external applications.

Optical Accessories

For flexibility and precise lighting distribution, Fira can be fitted with a choice of three optical accessories. Designed to manage light discreetly, the range of interchangeable louvres, snoots and hal-snoots help to control glare and are easily fitted on-site.

Fira Colours

fira pro colour 9005
fira pro colour 9006
fira pro colour 9007
fira pro colour 9016
fira pro colour db703
fira pro colour cb

Mounting Options

mounting options spike gallery Main image Lighting 1170x800px4
mounting options 5 post top gallery Main image Lighting 1170x800px3
mounting options stand gallery Main image Lighting 1170x800px3
mounting options side pole gallery Main image Lighting 1170x800px3
mounting options multiple gallery Main image Lighting 1170x800px3
mounting options post top gallery Main image Lighting 1170x800px3

Check out our brochure

Contact us to find out more

Detailed Specification

Product specification

Electrical Class:
I, (II on request)
IP rating:
IP66
IK rating:
IK09
Certifications:
CE
Applications:
Buildings
Public realm

Lighting

Light source:
High power LED
Lumen Range (lumens):
1078-1660
Power Range:
30
LED qty:
16
Distribution:
Holographic Beam Shaping
Symmetric
Asymmetric
Colour Temperature (CCT):
RGBW
RGBA
Tunable White
Colour rendering (CRI):
90
L70 Lifetime Estimate:
100,000 hours

Power and control

Voltage:
120-277V
Dimming:
DMX 512
Controls:
DMX 512
RDM

Mechanical and installation

Tilt / inclination:
45° (forward), 90° (back)
Materials:
Body: die-cast aluminium
Glazing: flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
Other RAL colours available on special request
Operating temp (°C):
-20°C to +50°C
Mounting:
Surface
Column

Downloads and dimensions

Fira brochure

Format: Adobe Acrobat PDF file, (4.6 MB)

Download

Fira Pro and Fira Ultra installation instructions

Format: Adobe Acrobat PDF file, (15 MB)

Download

Fira Pro IES files

Format: ZIP compressed file, (46 KB)

Download

Fira Pro BIM files

Format: ZIP compressed file, (1.7 MB)

Download
fira straight on Product variant dimensions drawing Lighting W573px4
Dimensions (mm):
  • A 212
  • B 175
Weight (kg):
4.4
fira side on Product variant dimensions drawing Lighting W573px4
Dimensions (mm):
  • B 132
  • C 72
  • D 156
  • A 106
Weight (kg):
4.4
