Ely A

Change view:

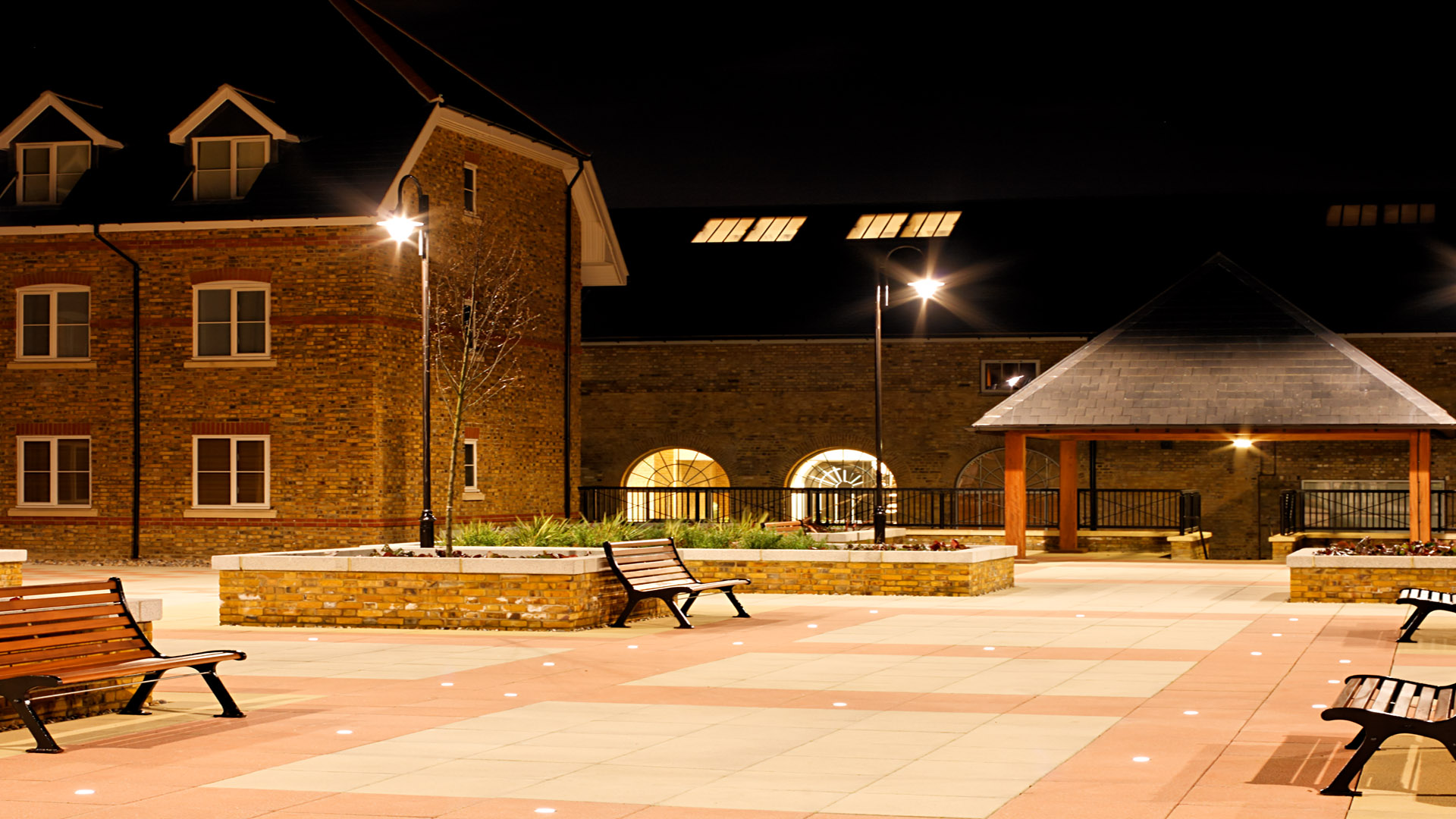

Ely A Heritage Street Lighting Location image 1920x1080px
Ely Heritage Street Lighting Product image 2000x1572px Alt1

Downloads

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Light Engine design guide

Format: Adobe Acrobat PDF file, (6.6 MB)

Ely A photometry

Format: ZIP compressed file, (5.5 MB)

More views

Ely Heritage Street Lighting Product image 2000x1572px Alt1
Ely Narrow Brim Heritage Street Lighting Product image 2000x1572px Alt1

Overview

A traditional heritage luminaire, suitable for high traffic routes and car parks to residential development schemes.

  • Recommended for mounting at 6-10 metres
  • Available in both lamped light sources or LED
  • Exceptional ease of maintenance via stainless steel over-centre latches

Request a quote

Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED Diamond+ 3008-18069 22-137 2700K, 3000K, 4000K
Performance CoB Chip on Board (CoB) Diamond+ CoB 3526-8337 22-55 2700K, 3000K, 4000K
Braun Gas Effect High power LED Diffuser 2700K, 3000K
CosmoPolis Lamp Diamond Optic® 90, 140
SON-T Lamp Diamond Optic® 100, 150
CDO-TT Lamp Diamond Optic® 100, 150

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Mounting Height (m):
6-10
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
3008-18069
LED qty:
1-64

Power and control

Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
Integral CMS
Sensor ready

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Easy-fit™
Threaded: 1.25" BSP

Downloads and resources

Downloads

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Light Engine design guide

Format: Adobe Acrobat PDF file, (6.6 MB)

Ely A photometry

Format: ZIP compressed file, (5.5 MB)

Ely product codes

Format: Adobe Acrobat PDF file, (90 KB)

Dimensions

Ely A product dimension drawing W573px
Dimensions (mm):
  • A 638
  • Ø B 670
Weight (kg):
11.5
Windage (m2):
0.17
Ely A product dimension drawing W573px
Dimensions (mm):
  • A 638
  • Ø B 527
Weight (kg):
11.5
Windage (m2):
0.17
