Dover 500

Change view:

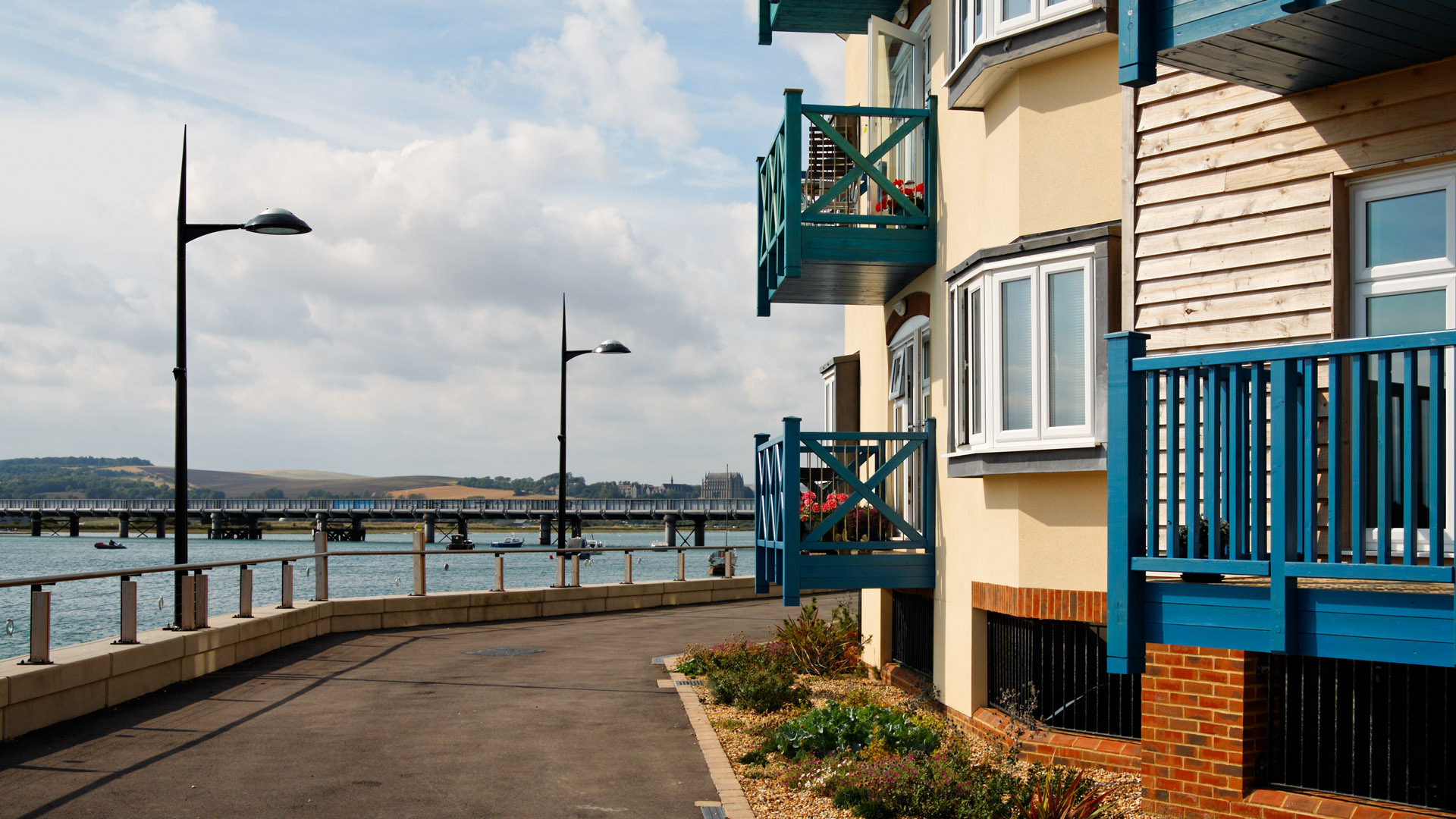

Dover 500 Decorative Street Lighting Location image 1920x1080px Alt1

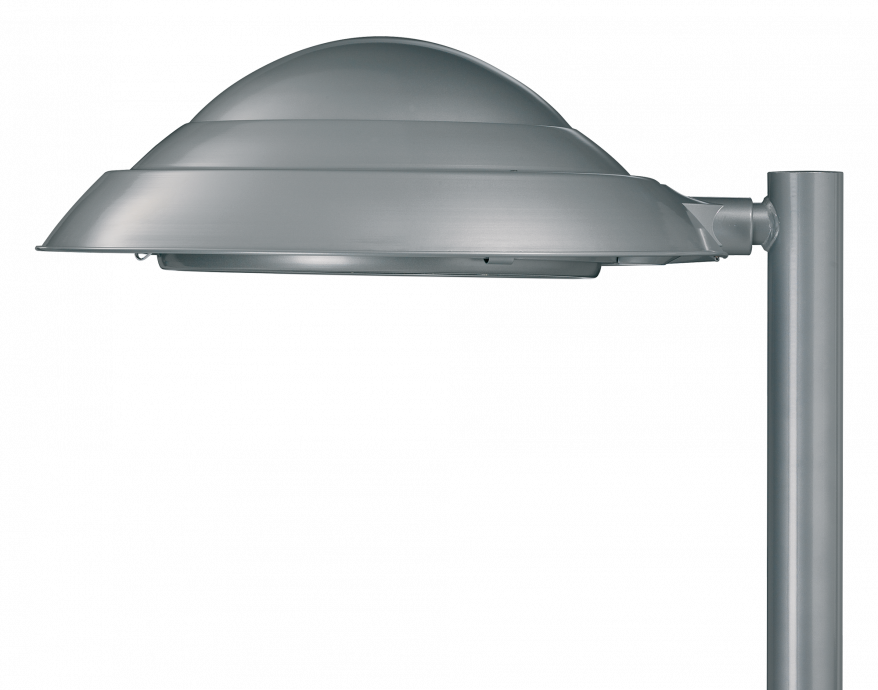

Dover Bowl Decorative Street Lighting Product image 2000x1572px Alt1

Downloads

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Dover photometry

Format: ZIP compressed file, (4.5 MB)

More views

Dover Bowl Decorative Street Lighting Product image 2000x1572px Alt1
Dover Flatglass Decorative Street Lighting Product image 2000x1572px

High performance, high ingress-resistant lantern for demanding locations

Dover is one of our most popular luminaires - the simplistic design, robust construction and performance light engine is complementary to any scheme. Dover, reflects the stylistic cues of its name sake: Dover Harbour.

  • Performance LED light engine available for excellent energy savings
  • For mounting at 8-10 metres
  • Flat glass glazing is available for zero light pollution

Request a quote

Options in this range

Name Light source Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED 5632-22515 41-198 2700K, 3000K, 4000K

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
8-10
Applications:
High street & road lighting
Car parks
Paths & walkways

Lighting

Lumen Range (lumens):
5632-22515
LED qty:
64

Power and control

Voltage:
220-240V
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
CMS compatible
Sensor ready

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Canopy: Spun aluminium
Seals: Silicone
Glazing: Polycarbonate bowl or Flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 9007 Metallic grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
Other RAL colours on request
Mounting:
Side Entry: Ø42mm
Direct Post: Ø76mm
Pendant Easy-fit™: Ø42.4mm
Pendant Threaded: 1¼" BSP

Downloads and dimensions

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Dover photometry

Format: ZIP compressed file, (4.5 MB)

Dover 500 flat glass product dimension drawing W573px
Dimensions (mm):
  • A 245
  • Ø B 760
Weight (kg):
17.1
Windage (m2):
0.10
Dover 500 product dimension drawing W573px
Dimensions (mm):
  • A 354
  • Ø B 760
Weight (kg):
16.2
Windage (m2):
0.13
