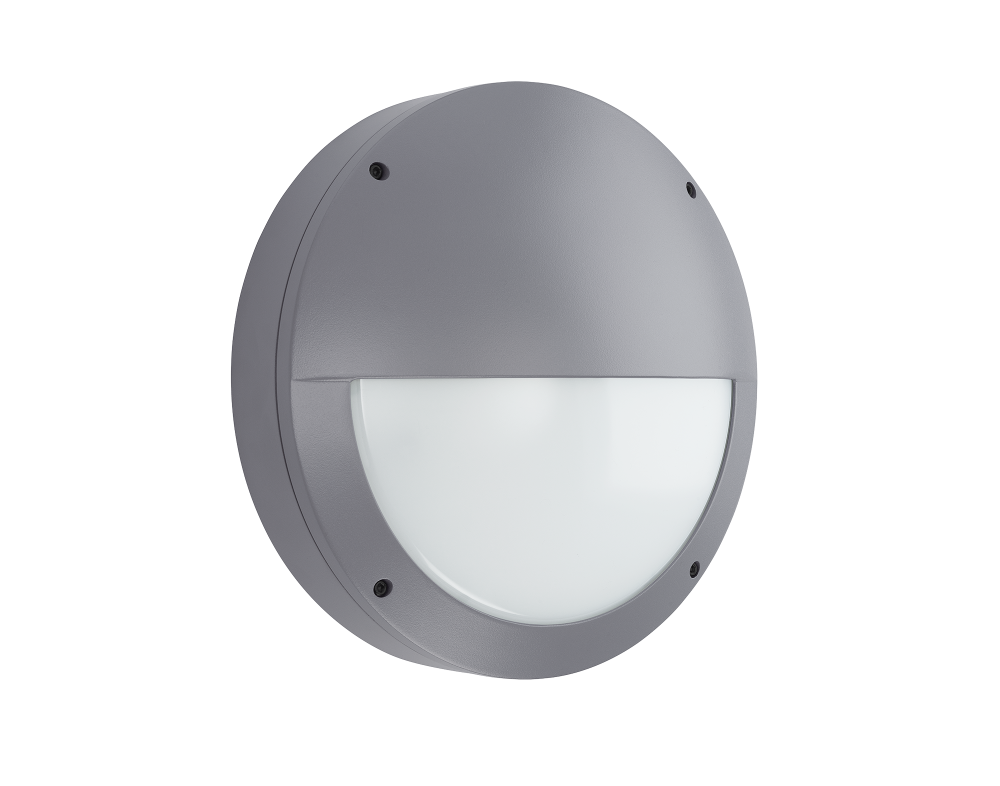

Functional bulkhead luminaire

Die-cast aluminium bulkhead, available in three standard style variants offers an energy efficient, vandal resistant solution for both interior and exterior applications.

  • Available in a choice of three designs; Eyelid, Grille or Plain
  • Dimming and switching options available
  • Three hours maintained emergency option

Request a quote

Options in this range

Name Lumen Range (lumens) LED qty Dimensions (mm) Weight (kg)
Plain 1020-1425 54 Diameter: 360, Depth: 145 3.7, 4.7 (with emergency gear)
Eyelid 550 27 Diameter: 360, Depth: 155 4.5, 5.5 (with emergency gear)
Grille 1020-1425 54 Diameter: 360, Depth: 155 4.5, 5.5 (with emergency gear)

Three designs

Aventis is available in three designs, suitable for both exterior and interior applications:

  • Plain
  • Eyelid
  • Grille

Light distribution

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK10
Certifications:
CE
Applications:
Buildings

Lighting

Lumen Range (lumens):
550-1425
Power Range:
16.5-23
LED qty:
27-54
Colour Temperature (CCT):
4000K
Colour rendering (CRI):
80Ra

Power and control

Drive Current Range:
250mA
350mA
Controls:
Switch via external photocell
Presence detection
Emergency battery backup

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Polycarbonate
Seals: Silicone rubber
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 9006 Aluminium
Other RAL colours on request
Mounting:
Wall Mount

Downloads and resources

Downloads

Aventis brochure

Format: Adobe Acrobat PDF file, (652 KB)

Aventis photometry

Format: ZIP compressed file, (462 KB)

Dimensions

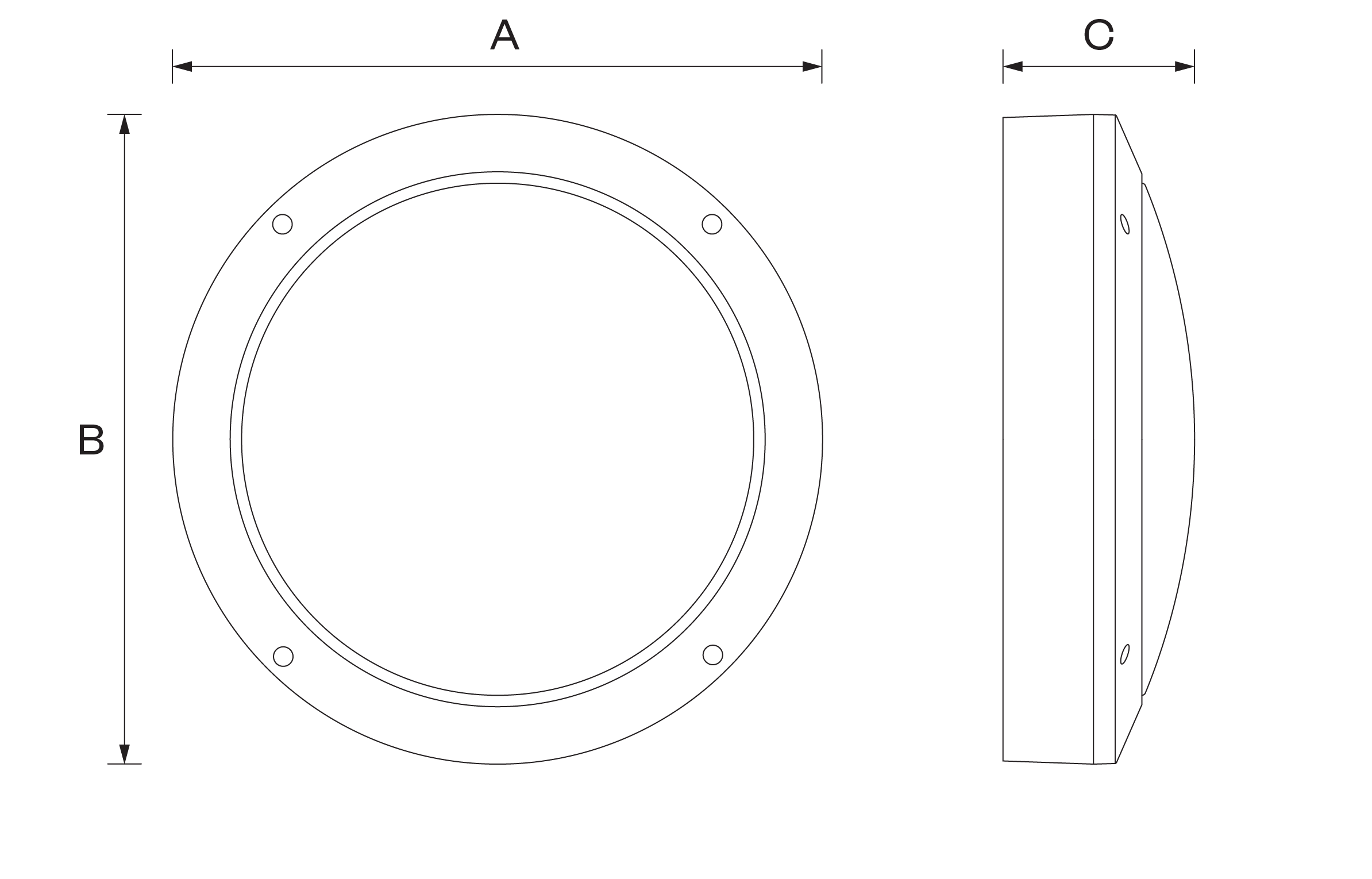

Aventis Plain product dimension drawing W573px
Dimensions (mm):
  • Ø A 360
  • B 145
Weight (kg):
3.7

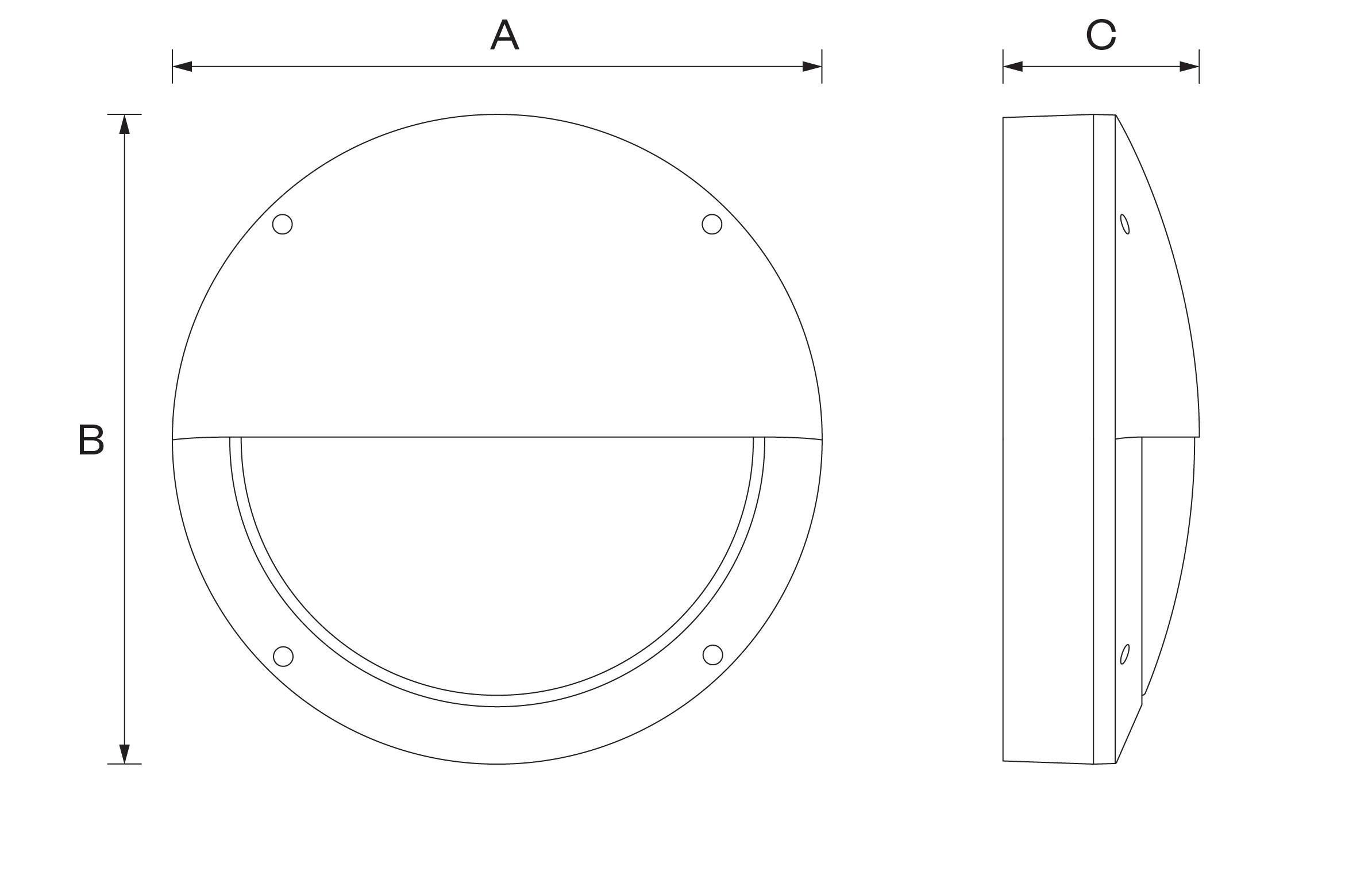

Aventis Eyelid product dimension drawing W573px
Dimensions (mm):
  • Ø A 360
  • B 155
Weight (kg):
4.5
Aventis Grille product dimension drawing W573px
Dimensions (mm):
  • Ø A 360
  • B 155
Weight (kg):
4.5
